Quick Details
-
Brand Name:
-
NEWLD
-
Product Name:
-
Foundry plant apply electrical railroad self propelled cart
-
Key Words:
-
self propelled cart
-
Other name:
-
electric transfer wagon
-
Application:
-
Industry Filed,Warehouse
-
Color:
-
Customized
-
Capacity:
-
1-500ton for motorized transfer cart
-
Running speed:
-
0-20m/min for motorized transfer cart
-
Certificates:
-
CE ISO SGS
-
Power supply:
-
drag cable power
-
Advantage:
-
Anti-high temperature,low cost with professional manufacturing
Quick Details
-
Warranty:
-
1 Year
-
Weight (KG):
-
1000
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
NEWLD
-
Product Name:
-
Foundry plant apply electrical railroad self propelled cart
-
Key Words:
-
self propelled cart
-
Other name:
-
electric transfer wagon
-
Application:
-
Industry Filed,Warehouse
-
Color:
-
Customized
-
Capacity:
-
1-500ton for motorized transfer cart
-
Running speed:
-
0-20m/min for motorized transfer cart
-
Certificates:
-
CE ISO SGS
-
Power supply:
-
drag cable power
-
Advantage:
-
Anti-high temperature,low cost with professional manufacturing
Product Description

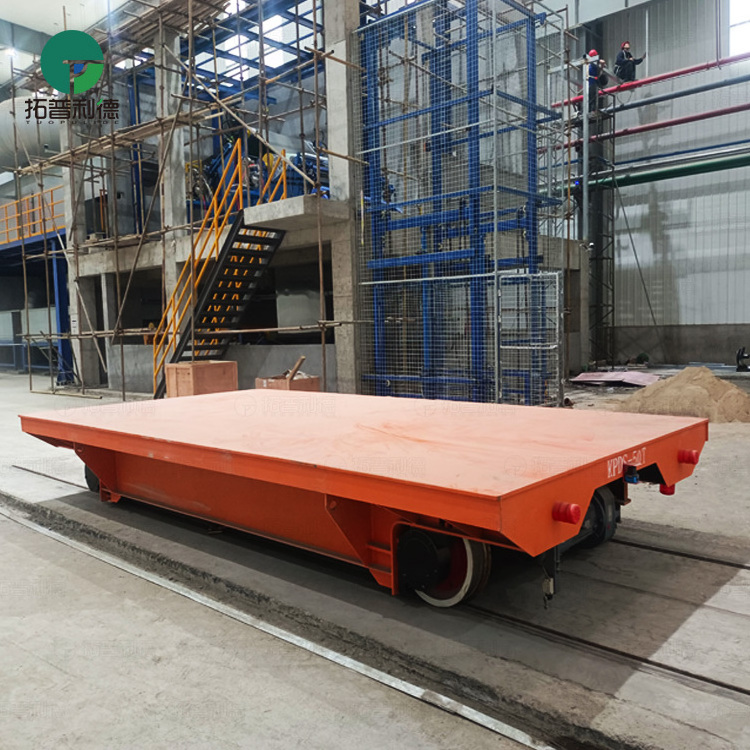

Foundry plant apply explosion proof electrical railroad self propelled cart
The transport trailer is an electric operated material transport trailer which is powered by towed cable. The transport trailer is mounted on steel rail for shuttling along a fixed path.
As these transport trailers are semi-custom manufactured transport trailers, they come in lengths and widths of to suit the
application. Capacities are available up to 500 tonne.
As these transport trailers are semi-custom manufactured transport trailers, they come in lengths and widths of to suit the
application. Capacities are available up to 500 tonne.
The steel part handling trailer is mainly applied in assembly line (ring production line, loop production line), metallurgy
industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), work piece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure),construction (bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (poly crystalline silicon, generator, windmill), chemical industry (electrolytic cell, retort), etc.
industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), work piece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure),construction (bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (poly crystalline silicon, generator, windmill), chemical industry (electrolytic cell, retort), etc.
Parts Details
Product Parameters
|
Model
|
|
KPT-2T
|
KPT-10T
|
KPT-20T
|
KPT-30T
|
KPT-50T
|
KPT-100T
|
KPT-150
|
|
|
Rated load(t)
|
|
2
|
10
|
20
|
30
|
50
|
100
|
150
|
|
|
Table Size
|
Length(L)
|
2000
|
3600
|
4000
|
4500
|
5500
|
6500
|
10000
|
|
|
|
Width(W)
|
1500
|
2000
|
2200
|
2200
|
2500
|
2800
|
3000
|
|
|
|
Heigth(H)
|
450
|
500
|
550
|
600
|
650
|
850
|
1200
|
|
|
Wheel Base(mm)
|
|
1200
|
2600
|
2800
|
3200
|
4200
|
4900
|
7000
|
|
|
Rai lnner Gauge(mm)
|
|
1200
|
1435
|
1435
|
1435
|
1435
|
2000
|
2000
|
|
|
Wheel Dia.(mm)
|
|
Φ270
|
Φ300
|
Φ350
|
Φ400
|
Φ500
|
Φ600
|
Φ600
|
|
|
Wheel Quantity(pcs）
|
|
4
|
4
|
4
|
4
|
4
|
4
|
8
|
|
|
Ground Clearance(mm)
|
|
50
|
50
|
50
|
50
|
50
|
75
|
75
|
|
|
Running Speed(mm)
|
|
25
|
25
|
20
|
20
|
20
|
20
|
18
|
|
|
Motor Power(kw）
|
|
0.8
|
1.5
|
2.5
|
4
|
5.5
|
11
|
15
|
|
|
Max Wheel load(KN)
|
|
14.4
|
42.6
|
77.7
|
110.4
|
174
|
343.8
|
265.2
|
|
|
Reference Wight(t)
|
|
2.3
|
3.8
|
5.5
|
6.3
|
7.6
|
13.9
|
26
|
|
|
Recommend Rail Model
|
|
P15
|
P18
|
P24
|
P38
|
P43
|
QU100
|
QU100
|
|
Advantages
Product Features
Shopping Notes
Because different customers have different specifications and functional requirements for products, all products are customized on demand. The price is for reference only. Please consult us for details about the price. Thank you for your understanding.
