Quick Details
-
Filter Type:
-
Emflon PFR Filter
-
Filter Media:
-
Hydrophobic PTFE Membrane
-
Micron:
-
0.1, 0.2, 0.45 um
-
Housing Material:
-
Polypropylene (PP)
-
Filtration Efficiency:
-
99.99%
-
Length:
-
2.5 inch, 5 inch
-
Filtration Area:
-
0.1, 0.2 m2
-
Connection:
-
1/4" , 1/2" NPT, Hose Barb, Tri Clamp, etc
-
Application 1:
-
Fine Chemical,
-
Application 2:
-
Tank Vent, Fermentor, etc
Quick Details
-
Weight (KG):
-
0.5
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TS Filter
-
Filter Type:
-
Emflon PFR Filter
-
Filter Media:
-
Hydrophobic PTFE Membrane
-
Micron:
-
0.1, 0.2, 0.45 um
-
Housing Material:
-
Polypropylene (PP)
-
Filtration Efficiency:
-
99.99%
-
Length:
-
2.5 inch, 5 inch
-
Filtration Area:
-
0.1, 0.2 m2
-
Connection:
-
1/4" , 1/2" NPT, Hose Barb, Tri Clamp, etc
-
Application 1:
-
Fine Chemical,
-
Application 2:
-
Tank Vent, Fermentor, etc

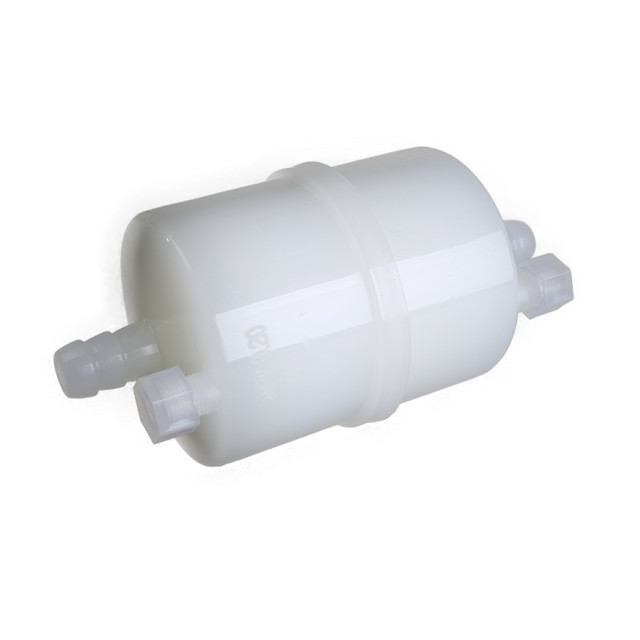

0.2 Micron PTFE Capsule Filter 1/2" Hose Connections For Replacement Of KA3PFRP6 Emflon PFR Filter
These capsules are self contained, ready to use, disposable devices. The fiter body is constructed with polypropylene material housing and available with a wide range of connector confiurations to suit different systems.
The hydrophobic PTFE capsule filters offer a wide range of chemical compatibility with high thermal stability, specially used for the filtration of compressed air/gas, vent air and aggressive chemical solutions including acids, alkalis, solvents, photoresists, etc.
Each unit is integrity tested before release from our factory.
1. Capsule filters are kind of self contained, ready to use, disposable filters;
2. Made up of polypropylene cage and pleated membrane filter inside by thermal bonding,free of adhesives, binders and other chemicals;
3. Available with a wide range of connectors and filter medias for options to meet various filtration requirements;
4. Fully integrity tested before release from manufacture;
| Materials Of Construction | Filter Media: | Hydrophobic PTFE Membrane | ||||
| Support Layers: | Polypropylene | |||||
| Outer Cage, End caps: | Polypropylene | |||||
| Micron: | 0.1, 0.22 um | |||||
| Cartridge Dimensions | Outer Diameter | 68mm | ||||
| Length | 2.5", 5" | |||||
| Connectors: | 1/4", 1/2" NPT; 1/2", 1/4" Hose Barb; 1 1/2", 1/2" TC | |||||
| Filtration Area(m2) |
0.12
m
2
, 0.20
m
2
|
|||||
| Operating Conditions | Normal Operating Temperature: | Up to 60℃ (140℉) | ||||
| Max.Operating Temperature.: | 80℃ (176℉) at P≤1.0 bar (14psi) | |||||
| Max. Differential Pressure | ||||||
| Normal Flow direction: | 4.2 bar (60 psi) at 25℃ (77℉) | |||||
| Reverse flow direction: | 2.1 bar (30psi) at 25℃ (77℉). | |||||
| Sterilization: | Autoclave sterilization 30 minutes | |||||
