Quick Details
-
Model Number:
-
FET3568-C
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Forlinx
-
Board Type:
-
SOM
-
Operating System:
-
Linux,Andriod11,Debian,Ubuntu
-
CPU:
-
RK3568 quad-core processor
-
Frequency:
-
2.0 GHz
-
Architecture:
-
Cortex-A55
-
Structure:
-
carrier board+ SoM
-
RAM:
-
4GB DDR4
-
Flash:
-
32GB eMMC
-
OS:
-
Linux4.19+ QT5.14
-
Temp Width:
-
0℃~ 70℃( commercial)
Quick Details
-
Type:
-
Development Board
-
Series:
-
RK3568
-
Description:
-
FET3568 SOM
-
Model Number:
-
FET3568-C
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Forlinx
-
Board Type:
-
SOM
-
Operating System:
-
Linux,Andriod11,Debian,Ubuntu
-
CPU:
-
RK3568 quad-core processor
-
Frequency:
-
2.0 GHz
-
Architecture:
-
Cortex-A55
-
Structure:
-
carrier board+ SoM
-
RAM:
-
4GB DDR4
-
Flash:
-
32GB eMMC
-
OS:
-
Linux4.19+ QT5.14
-
Temp Width:
-
0℃~ 70℃( commercial)
Product Description

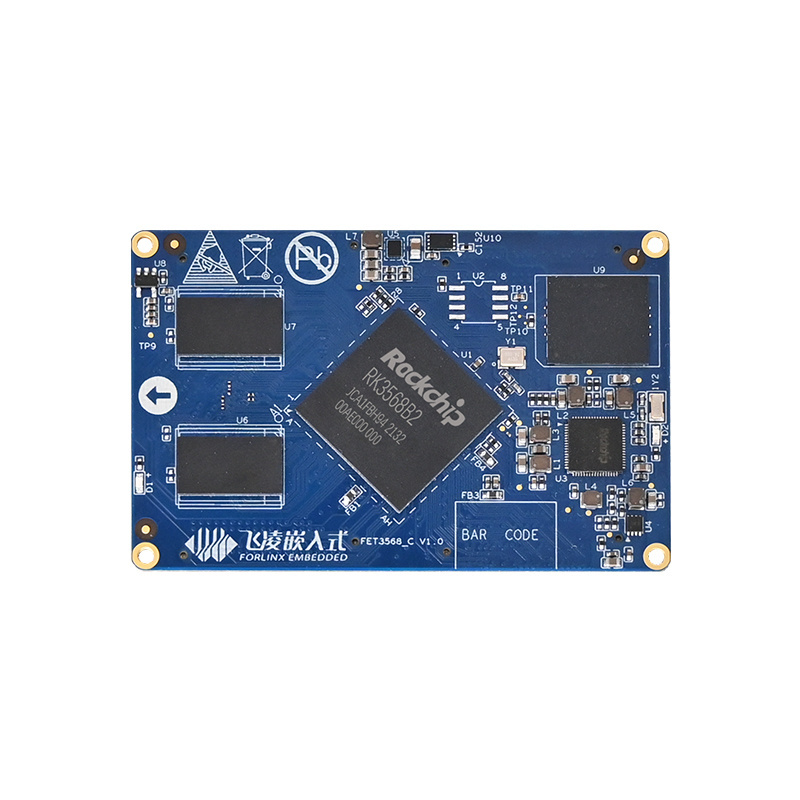

FET3568-C System on Module
|
CPU
|
Rockchip RK3568 quad-core Cortex-A55@2.0GHz
|
|
GPU
|
• Mali-G52-2EE
|
|
|
• OpenGL ES 1.1, 2.0, 3.2, Vulkan 1.0,1.1, OpenCL 2.0
|
|
NPU
|
1TOPS, Support INT8/INT16/FP16/BFP16 mixed operation.
|
|
VPU
|
Decode:
|
|
|
• H.264, H.265, VP9: up to 4096x2304@60fps
|
|
|
• VP8: up to 1920x1088@60fps
|
|
|
• VC1, MPEG-4, MPEG-2, MPEG-1: up to 1920x1088@60fps
|
|
|
• H.263: up to 720x576@60fps
|
|
|
Encode:
|
|
|
H.264/AVC, H.265/HEVC: up to 1920x1080@60fps
|
|
RAM
|
4GB
|
|
Flash
|
32GB eMMC
|
|
Working Temp
|
0℃ to +70℃
|
|
Dimensions
|
45x 70mm
|
|
Voltage Input
|
DC 5V
|
|
OS
|
Linux4.19+Qt5.12, Android11*,Ubuntu,Debian
|
|
Display
|
3
|
|
|
3 display controllers which can support simultaneous output of any 3 combination in RGB, LVDS, MIPI DSI, HDMI and eDP
|
|
|
• RGB: RGB888, resolution up to 1280x800;
|
|
|
• LVDS: single-lane output, up to 1280x800, multiplexed with MIPI-DSI0;
|
|
|
• MIPI-DSI: single-lane output, up to 1920x1080@60Hz; dual-lane output up to 2560*1440@60Hz;
|
|
|
• HDMI: up to 1080p@120Hz or 4096x2304@60Hz;
|
|
|
• eDP: eDP 1.3, up to 2560x1600@60Hz;
|
|
Audio
|
1X 8ch I2S/TDM, 2X2ch I2S, 1x8ch PDM.
|
|
Camera
|
1x 4-lane MIPI-CSI
|
|
|
1x DVP
|
|
SDIO
|
SDIO 3.0, throughout up to 104MB/S
|
|
Ethernet
|
2x GMAC by RGMII/ RMII
|
|
USB2.0
|
2x USB2.0 Host(separately, but not multiplxed with USB3.0)
|
|
|
|
|
USB2.0
|
1x USB2.0 Host, 1x USB2.0 OTG, could be configured to USB2.0 contained in USB3.0, when USB3.0 is not needed, it could be used as 2
separate USB2.0 |
|
USB3.0
|
2, 1x USB3.0 Host, 1x USB3.0 OTG
|
|
SATA
|
SATA3.0, up to 6.0Gb/ s, supports eSATA
|
|
PCIe2.1
|
1, up to 5.0Gbps, RC mode
|
|
PCIe3.0
|
2x PCIe 3.0
|
|
|
1x 2-lane or 2x 1-lane, each lane up to 8.0Gbps
|
|
|
1-lane can only support Root Complex(RC) mode
|
|
|
2-lane can support both Root Complex(RC) mode and End Point(EP) mode
|
|
UART
|
10, up to 4Mbps
|
|
CAN
|
3, supports CAN-FD and CAN2.0B
|
|
SPI
|
4, host mode and slave mode are configurable
|
|
IIC
|
5, supports 7-bit and 10-bit address mode, up to 1Mbit/s
|
|
PWM
|
16, 32-bit timer/ counter
|
Advanced and robust
FET3568-C SoM is equipped with quad-core 64-bit Cortex-A55 processor with built in NPU based on advanced 22nm processing technology, running at up to 2.0GHz, and plenty of high-speed peripheral interfaces are available.
Built-in NPU
Neural network acceleration engine with processing performance up to 1 TOPS. Supports RKNN-Toolkit. In addition, with its strong compatibility, network models based on a series of frameworks such as TensorFlow/MXNet/PyTorch/Caffe
can be easily converted.
Various display interfaces, supports three displays with different frames
HDMI2.0, eDP, LVDS, RGB Parallel and MIPI-DSI are all well supported, besides, it supports three displays simultaneously output up to 4K, which is preferable and applicable for PDA, cash register, multi-screen advertising machine, karaoke machine, electronic bus stop board, self-service machine, etc.
Powerful video codec performance
Support 4K resolution H.264/H.265/VP9 and other formats high-definition hard decoding, and can support multiple video sources decoding simultaneously, support HDR10 with excellent performance in color and dynamic range; FET3568-C SoM supports H.264 and H.265 format hardware encoding at 1080p60fps, and supports dynamic code rate, frame rate, and resolution adjustment.
High-scalability
Equipped with 3 PCIe, 4 separate USB, 3 SATA controllers, and 2 builtin GMAC can support RGMII/ SGMII/ QSGMII(2MAC) to expand dual Gigabit Ethernet ports.
OS Supporting
FET3568-C SoM supports Linux 4.19 and Android 11 operating systems that deeply optimized, which ensures high-stability for long-last running.
Technical Support
Packing & Delivery
Accessory of a development board including power adapter, debug cable
generally, the packing will be a development board a box (23*19*9cm)
