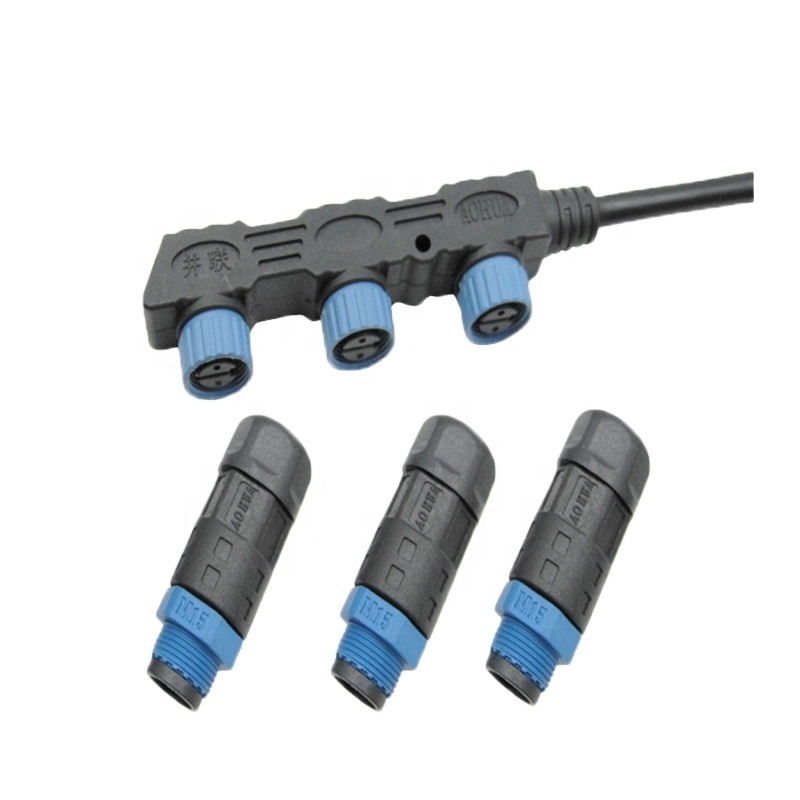

IP67 2 Pin 1 to 3 Joint Distribution Cord M15 Waterproof LED Module Connector
IP67 2 Pin 1 to 3 Joint Distribution Cord M15 Waterproof LED Module Connector
IP67 2 Pin 1 to 3 Joint Distribution Cord M15 Waterproof LED Module Connector
IP67 2 Pin 1 to 3 Joint Distribution Cord M15 Waterproof LED Module Connector
IP67 2 Pin 1 to 3 Joint Distribution Cord M15 Waterproof LED Module Connector
IP67 2 Pin 1 to 3 Joint Distribution Cord M15 Waterproof LED Module Connector
IP67 2 Pin 1 to 3 Joint Distribution Cord M15 Waterproof LED Module Connector
IP67 2 Pin 1 to 3 Joint Distribution Cord M15 Waterproof LED Module Connector

IP67 2 Pin 1 to 3 Joint Distribution Cord M15 Waterproof LED Module Connector

FOB Reference Price: Get Latest Price
≥200 Sets
US $3.5
≥2000 Sets
US $2.5
≥20000 Sets
US $1.6
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Guangdong,China
Brand Name:
AOHUA
Model Number:
F-M15
Connector Name:
F Splitter Cable Connector
Socket:
2,3,4
Pin:
2
Operating Rating:
-40°c-+105°c
Color:
Black with bule
Wire Gauge:
≤1.5mm²
Wire Length:
Customized
IP Level:
IP67/IP68
Material:
Rubber

Quick Details

Type:
ADAPTER
Application:
Power;LED Light;Electrical Equipment
Gender:
F Connector
Place of Origin:
Guangdong,China
Brand Name:
AOHUA
Model Number:
F-M15
Connector Name:
F Splitter Cable Connector
Socket:
2,3,4
Pin:
2
Operating Rating:
-40°c-+105°c
Color:
Black with bule
Wire Gauge:
≤1.5mm²
Wire Length:
Customized
IP Level:
IP67/IP68
Material:
Rubber
Product Description

IP67 2 Pin 1 to 3 Joint Distribution Cord M15 Waterproof LED Module Connector


Description & Specs
Sockets
1 to 3
Voltage Rating
300V
Current Rating
10A
Wire Gauge
≤1.5mm²
Cable OD
6.8mm-8.3mm
Mechanical Life
3000 mating cycles
Operating Rating
-40ºC-+105ºC
Waterproof Level
IP67/IP68
Related Product
Our Advantages
Application
Advantages:
1.Connector : F Type Rubber Cable 2*1.0mm²/2*0.75mm²,1 to 2, 1 to 3, 1 to 4 parallel type & series type.

2. Quality Assurance: IP67/IP68 advanced protetion,operating temperature:-40°C-+105°C.

3.Easy Install: The installation process is very simple.

4.Color: Black with blue.

5.High-Quality Materials: The Outdoor connector all are made high quality Nylon PA66,high temperature resistant,94V-0 flame retardant.

6. Suitable for LED billboards,LED tunnel lights,LED Road landscape lighting,LED outdoor display,LED Garden spike light and so on.
Further application in coastal,outdoor engineering,mining engineering,solar wind power,solar water heaters,various machinery and equipment.
Assembly Connector
Wire to wire /Wire to panel waterproof connector,L/T screw type connector
Over-mold Connector
Nylon/PVC /Metal /Aviation waterproof connector,DC connector
T Connector
Over-mold T waterproof connector
Y Connector
Over-mold Y waterproof connector
Distributor Connector
M15/M18 Series(1to2/3/4/5/6) LED waterproof connector
Tail Terminal:

Tail processing as shown on the above is optional,others not listed can also be processed.

Tips for choices:

You can send me email about what you want. like this:
1. F connector
2. Current Rating: such as 10A;
3.Wire Gauge: such as 1.0mm2;
4.Cable jacket outer diameter(OD): such as 7.5mm2;
5. Then I will give advise which F connector you can used and make drawing for you.
You can get some sample before mass order.
6. Wised use in led,we can make what the 1 to N waterproof connector you want.

Then AOHUA team will answer you and choose the correct waterproof connector for you within 24h.
Details Pictures
Product packaging
Quantity(sets)
1 - 100
100 - 1000
>1000
Lead time (days)
4
9
To be negotiated
Shipment
Express(DHL,Fedex,TNT,Ups);Ocean freight
Land freight;Air freight
