Quick Details
-
Power (kW):
-
4
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GELGOOG
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1100*600*1650mm
-
Weight (KG):
-
140 KG
-
Marketing Type:
-
Hot Product
-

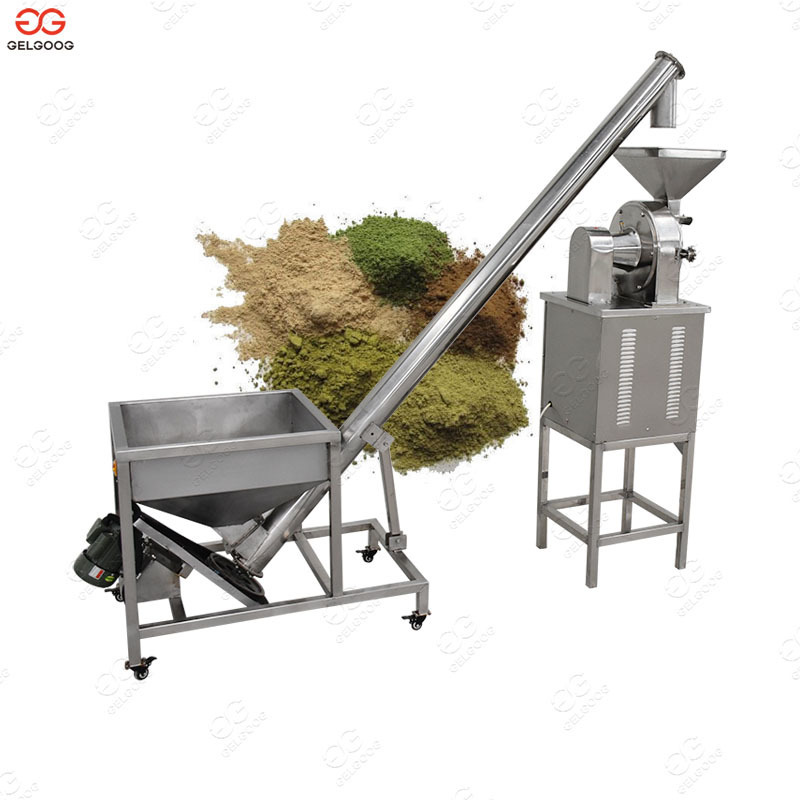

Product name:
-
Herbs Grinder Cassava Leaves Dry Spice Grinding Leaf Grinding Machine
-
Capacity:
-
60-150kg/h
-
Feed Size:
-
60-120 mesh
-
rotate speed:
-
4500r/min For Dry Spice Grinding Machine
Quick Details
-
Output (kg/h):
-
50 - 100 kg/h
-
Feeding Size (mm):
-
60 - 80 mm
-
Output Size (mesh):
-
20 - 120 mesh
-
Power (kW):
-
4
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GELGOOG
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1100*600*1650mm
-
Weight (KG):
-
140 KG
-
Marketing Type:
-
Hot Product
-
Product name:
-
Herbs Grinder Cassava Leaves Dry Spice Grinding Leaf Grinding Machine
-
Capacity:
-
60-150kg/h
-
Feed Size:
-
60-120 mesh
-
rotate speed:
-
4500r/min For Dry Spice Grinding Machine
Product Description
Introduction of Sugar Powder Grinding Machine
This grinding machine is suitable for the pharmaceutical, chemical, food, agriculture and grain industries. It is especially suitable for crushing dry and brittle materials and has a wide range of uses.
PRODUCT PARAMETER
|
Model
|
GG-S20B
|
|
Capacity
|
50-100kg/h
|
|
Crushed powder fineness
|
20-120mesh
|
|
Cutter diameter
|
200mm
|
|
Power
|
4kw
|
|
Dimension
|
600*500*1170mm
|
|
Weight
|
140kg
|
Working Principle Of Sugar Powder Grinding Machine
The unit utilizes the relative movement between the movable gear plate and the fixed tooth plate to cause the material to be crushed by the impact of the teeth, the friction and the impact of the materials. The pulverized material automatically enters the trapping bag by the action of rotating centrifugal force. The dust is filtered and collected by the dust box through the bag. The machine is designed according to the "GMP" standard, all made of stainless steel, and there is no dust in the production process.
Details Images
FAQ
Q. What materials the machine can grind?
A: Gypsum, salt, sugar, various seasonings, pepper, pepper, anise, anise, cinnamon, herbs, spices
Q.The minimum fineness:
A: 120 mesh
Q: Feed inlet can be customized according to the size of the material?
A: 20B-C inlet is 6 cm wide, 12 cm long.
Q: How does it work?
A: The claws pass through the high-speed operation of the thorns on the claw plate cover. Turbine milling on the wall, friction
Customer Visitor
COMPANY PROFILE
CONTACT OUR SERVICE
Note:
Because different products have different specifications, and different configurations have different prices. So for the actual price and parameter, please contact our customer service or call our order number. We will get back to you as soon as possible. Sincerely hope to cooperate with you, thank you!
