Quick Details
-
Customized support:
-
LOGO
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GLC
-
Model Number:
-
GLC-DC-XTJ02
-
Operating Temperature:
-
-20~60
-
Product Name:
-

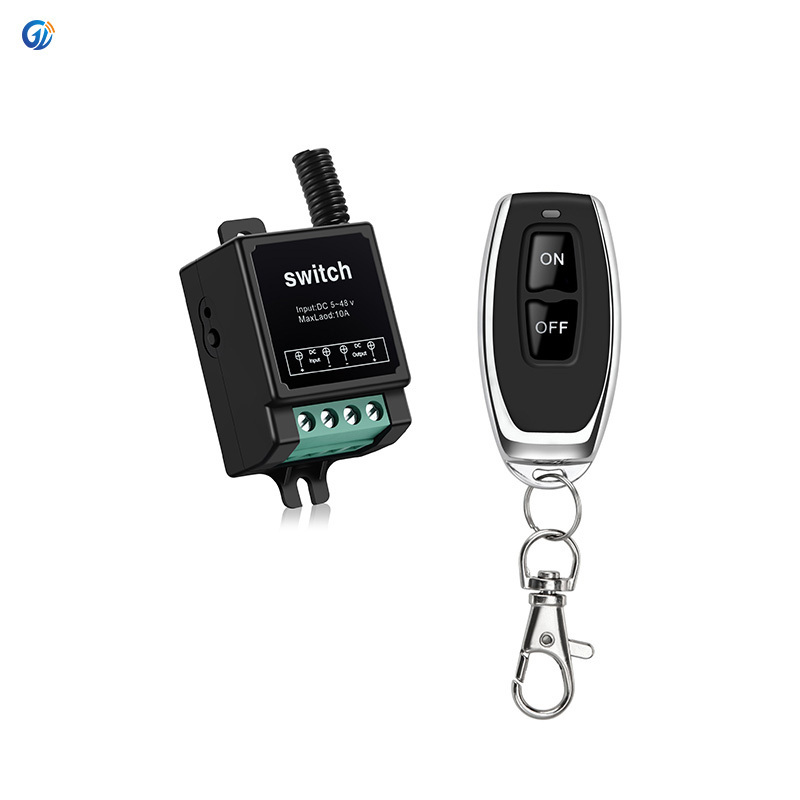

Wireless Remote Control Switch
-
Material:
-
PC+ABS
-
Wireless Standard:
-
433MHz
-
Max. Power:
-
5V≤50W 6V≤60W 9V≤90W 12V≤120W 24V≤240W 36V≤360W 48V≤480W
-
Voltage:
-
DC5V 6V 9V 12V 24V 36V 48V
-
Usage:
-
light
-
Keyword:
-
RF Wireless Switch
-
Key Feature2:
-
3 Working Modes
-
Key Feature1:
-
Smart Home RF Remote Control
-
Brand:
-
GLC
Quick Details
-
Max. Current:
-
10A
-
Max. Voltage:
-
DC5V 6V 9V 12V 24V 48V
-
Network:
-
RF
-
Customized support:
-
LOGO
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GLC
-
Model Number:
-
GLC-DC-XTJ02
-
Operating Temperature:
-
-20~60
-
Product Name:
-
Wireless Remote Control Switch
-
Material:
-
PC+ABS
-
Wireless Standard:
-
433MHz
-
Max. Power:
-
5V≤50W 6V≤60W 9V≤90W 12V≤120W 24V≤240W 36V≤360W 48V≤480W
-
Voltage:
-
DC5V 6V 9V 12V 24V 36V 48V
-
Usage:
-
light
-
Keyword:
-
RF Wireless Switch
-
Key Feature2:
-
3 Working Modes
-
Key Feature1:
-
Smart Home RF Remote Control
-
Brand:
-
GLC
Product features:
1 wide voltage DC 5V 6V 9V 12V 24V 36V 48V universal,
2. Small size: 42 *31* 24 mm .
2. Small size: 42 *31* 24 mm .
3.Working mode support: self-locking and interlocking manual switch. (Forgetting to bring the remote control can also control on and off)
4. One receiver can pair 32 remote controls without interfering with each other
5. Convenient wiring and no need to remove the shell
6. Various combinations of working mode and remote control distance are provided
4. One receiver can pair 32 remote controls without interfering with each other
5. Convenient wiring and no need to remove the shell
6. Various combinations of working mode and remote control distance are provided
6.A variety of matching methods, a variety of remote control distance optional
Scope of application:
Household lights\dc water pump\motor\Electrical appliances\ industrial control equipment, etc
Product Paramenters
|
Key word
|
remote control switch
|
Working voltage
|
DC 5V 6V 9V 12V 24V 36V 48V
|
|
|||
|
Product Size
|
42*31*24mm
|
Working frequency
|
433.932 MHz
|
|
|||
|
Emission current
|
≤0.01 uA
|
Remote distance
|
50m~100m
|
|
|||
|
Remote control size
|
12*29*61mm
|
Remote control battery
|
CR2016 two in series
|
|
|||
|
Current
|
10A
|
|
|
|
|||
|
Working mode
|
self-lock interlock Manual on and off
|
|
|
|
|||
|
voltage
|
5v
|
6v
|
9v
|
12v
|
24v
|
36v
|
48v
|
|
Load power
|
50W
|
60W
|
90W
|
120W
|
240W
|
360W
|
480W
|
Details Images
Installation Instructions
product assortment
Learn Matching Instructions
Introduction to the working mode
Self-locking mode:
with a key control, press once open, then press once off, called self-locking.
Interlocking mode: when the remote control has two keys, one button is on and the other button is off, it is called interlocking.
Manual switch: no remote control, press the learning button on the receiver, press one on, then one off.
Interlocking mode: when the remote control has two keys, one button is on and the other button is off, it is called interlocking.
Manual switch: no remote control, press the learning button on the receiver, press one on, then one off.
Learning methods
Self-lock:
the controller is powered on, hold down the learning button and wait for 3 seconds, the indicator light will flash once, release your hand, press the button of the remote control, the indicator light will flash 3 times, indicating the success of code
Interlock: the controller is powered ON, hold down the learning button and wait for 5 seconds, the indicator flashes twice,
release your hand, press the ON/ ON button of the remote control, the indicator flashes for 3 times and then it is in the light state, and then press OFF/ key of the remote control, the indicator flashes twice, indicating success in code checking
Code clearing: the controller is powered on, hold down the learning button and wait for 8 seconds, and the indicator light flashes 4 times, indicating the code clearing is successful
Manual switch: the learning button on the controller can control the output on and off, press that open, then press that off
Interlock: the controller is powered ON, hold down the learning button and wait for 5 seconds, the indicator flashes twice,
release your hand, press the ON/ ON button of the remote control, the indicator flashes for 3 times and then it is in the light state, and then press OFF/ key of the remote control, the indicator flashes twice, indicating success in code checking
Code clearing: the controller is powered on, hold down the learning button and wait for 8 seconds, and the indicator light flashes 4 times, indicating the code clearing is successful
Manual switch: the learning button on the controller can control the output on and off, press that open, then press that off
Certifications
FAQ
Q1 Are you a factory or a trading company
A1: We are a factory.
A1: We are a factory.
Q2: What is the mode of transportation?
A2: DHL/UPS/TNT/ FedEx and other air and sea freight are available.
Q3: How many remote controls can a receiver pair with?
A3: A receiver can pair up to 32 remote controls.
Q4: I need multiple remote controls to run. Will they interfere with each other?
A4: Each set of products is independently paired and does not interfere with each other. However, it should be avoided to press the remote control at the same time with an interval of one to two seconds
A2: DHL/UPS/TNT/ FedEx and other air and sea freight are available.
Q3: How many remote controls can a receiver pair with?
A3: A receiver can pair up to 32 remote controls.
Q4: I need multiple remote controls to run. Will they interfere with each other?
A4: Each set of products is independently paired and does not interfere with each other. However, it should be avoided to press the remote control at the same time with an interval of one to two seconds
Q5: Can I work in wet areas?
A5: It is not recommended to work in humid environment.
Q6: What is the remote control distance?
A6: 50m~100m, 500m~1000m, 3000m ~5000m can be selected
A5: It is not recommended to work in humid environment.
Q6: What is the remote control distance?
A6: 50m~100m, 500m~1000m, 3000m ~5000m can be selected
Q7:
What should I do when the controller's power is fine, but the remote control doesn't work on and off?
A7:This situation may be due to code drop, the solution is: first clear code, and then follow the required mode of learning. (See thedetails page for learning methods)
A7:This situation may be due to code drop, the solution is: first clear code, and then follow the required mode of learning. (See thedetails page for learning methods)
