Quick Details
-
Use:
-
PCB WELDING
-
Voltage:
-
AC 220V
-
Dimensions:
-
675*600*312mm
-
Rated Duty Cycle:
-
100%
-
Weight (KG):
-
37 KG
-
Product name:
-
Precision Lead Free Reflow Oven
-
Power Supply:
-
AC220V (AV110V custom-made) 50-60Hz
-
Max Power:
-
3600W
-
Heating Method:
-
Infrared Radiation Heating & Hot Air Circulation
-
Effective Welding Area:
-
500mm*400mm
-
Drawer Size:
-
550*430*30mm
-
Net Weight:
-
37.1 kg
-
After-sales Service Provided:
-
Video technical support
-
Certification:
-
CE
Quick Details
-
Applicable Industries:
-
smt pcb welding
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZHENGBANG
-
Use:
-
PCB WELDING
-
Voltage:
-
AC 220V
-
Dimensions:
-
675*600*312mm
-
Rated Duty Cycle:
-
100%
-
Weight (KG):
-
37 KG
-
Product name:
-
Precision Lead Free Reflow Oven
-
Power Supply:
-
AC220V (AV110V custom-made) 50-60Hz
-
Max Power:
-
3600W
-
Heating Method:
-
Infrared Radiation Heating & Hot Air Circulation
-
Effective Welding Area:
-
500mm*400mm
-
Drawer Size:
-
550*430*30mm
-
Net Weight:
-
37.1 kg
-
After-sales Service Provided:
-
Video technical support
-
Certification:
-
CE
Product Details

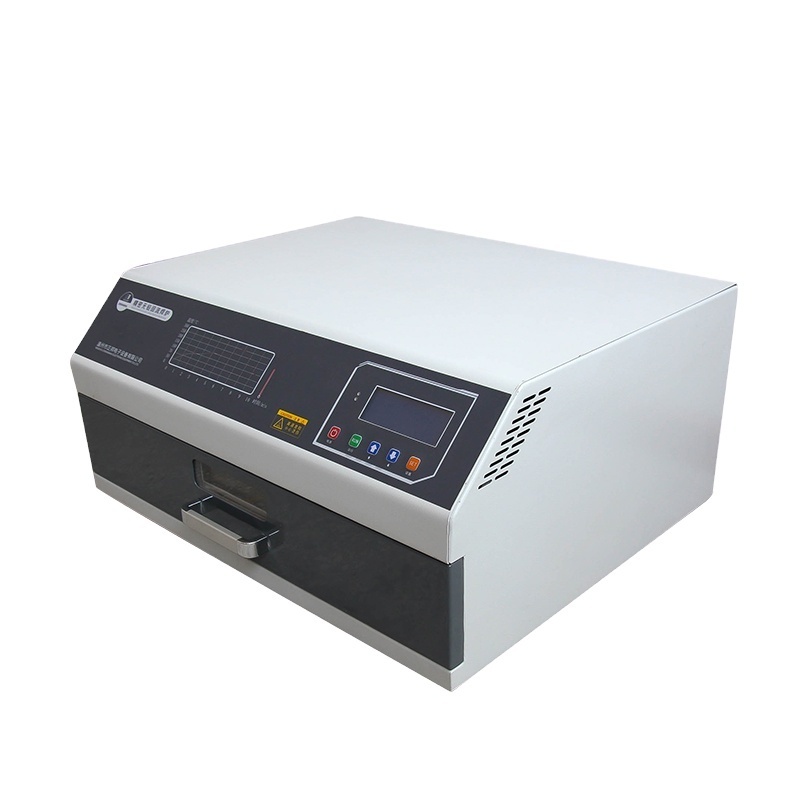

Precision Lead Free Reflow Oven
ZB series reflow furnace is mainly for the production and maintenance of SMT products such as desktop solder reflow equipment. The product uses high efficiency far infrared heating elements and distributed thermocouple temperature measurement device. Through the microcomputer's precise control, the temperature of the reflow oven curve control can be more accurate, and the temperature of the reflow plane can be more uniform. ZB series reflow furnace is fully able to adapt to a variety of different alloys and lead-free solder reflow requirements. Its temperature curve precision can be adjusted; in addition, this kind of equipment also has automatic fault detection alarm and other functions.
|
Model
|
|
ZB5040HL
|
|
|
|||
|
Power Supply
|
|
AC220V (AV110V custom-made) 50-60Hz
|
|
|
|||
|
Max Power
|
|
3600W
|
|
|
|||
|
Heating Method
|
|
Infrared Radiation Heating & Hot Air Circulation
|
|
|
|||
|
Effective Welding Area
|
|
500mm*400mm
|
|
|
|||
|
Drawer Size
|
|
550*430*30mm
|
|
|
|||
|
Operating System
|
|
Chinese and English Bilingual Language Operate System
|
|
|
|||
|
Display Mode
|
|
Graph Mode/Text Mode and Display Mode Optional
|
|
|
|||
|
Temperature Curve Zones
|
|
Preheating Zone, Heating Zone, Holding Zone and Cooling Zone Totally Five Zones
|
|
|
|||
|
Net Weight
|
|
37 kg
|
|
|
|||
|
Gross Weight
|
|
40 kg
|
|
|
|||
|
Outline Size
|
|
675*600*312 mm
|
|
|
|||
|
Packaging Size
|
|
730*440*390 mm
|
|
|
|||
FAQ
Q: Is it hard to use these machines?
A: No, not hard at all. For our previous clients, at most 2 days is enough to learn to operate themachines.
Q: Does you machines have quality certificate?
A: All of our machines have passed CE certificate, ISO14001(BCC), ISO9001(IQNET) and
have own patent.
Q: How about the warranty?
A: We support one year warranty( The nozzle with a warranty of 1 months; belt with a warranty of 3 months ). We will regularly update the software for customers. If there is any doubt in the process of operating the machine, pls feel free contact us. We will help you in time.
All the spare parts will be provided free of charge for you within the warranty period.
Q.Payment Term?
A:We accept:T/T, VISA, PAYPAL, WEST UNION, BANK TRANSFER, ONLINE BANK PAYMENT
Q.How about the Training ?
A:We provide the online remote training service, and we will offer you the operating video and manual for users’ repeatedly learning.
Q.What about the Delivery Time?
A:1~2 weeks after we received the payment, we will start the delivery. For customized order, it depends on practical situation.
