Quick Details
-
Model Number:
-
CNG-1
-
Brand Name:
-
TE
-
Product name:
-

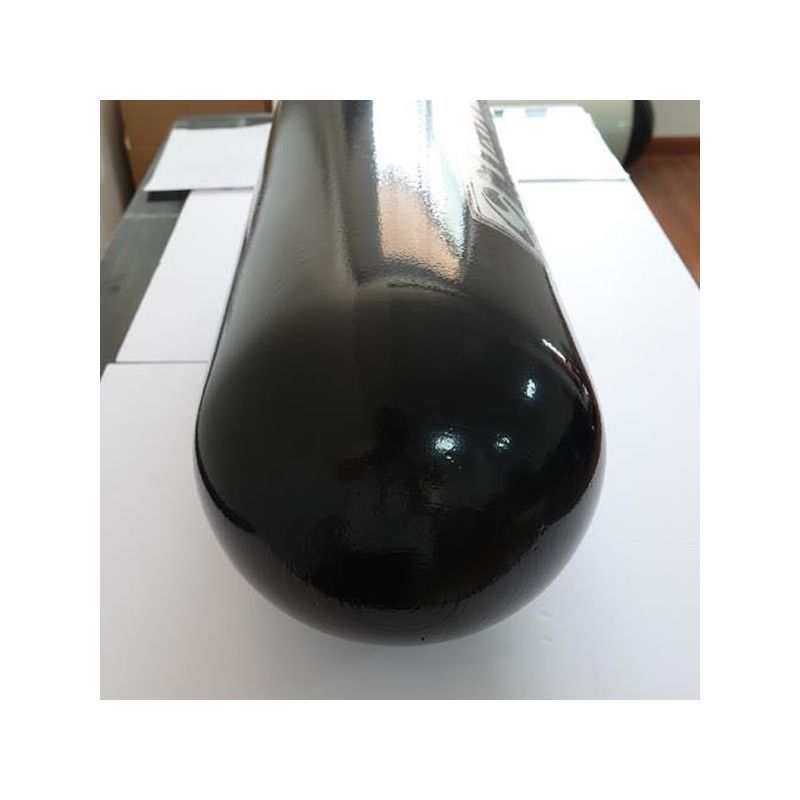

CNG Cylinder for vehicle
-
Nominal working Pressure:
-
20MPa
-
Nominal Outer Dia:
-
232/279/356/406mm
-
Volume:
-
20-150L
-
Length:
-
650-1835mm
-
Weight:
-
27-135kg
-
Certification:
-
ISO11439 standard,BV,ECER110
-
WP/TP:
-
200/300bar
-
Test:
-
Hydrostatic test, UT test
Quick Details
-
Material:
-
Steel
-
Use:
-
CNG
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
CNG-1
-
Brand Name:
-
TE
-
Product name:
-
CNG Cylinder for vehicle
-
Nominal working Pressure:
-
20MPa
-
Nominal Outer Dia:
-
232/279/356/406mm
-
Volume:
-
20-150L
-
Length:
-
650-1835mm
-
Weight:
-
27-135kg
-
Certification:
-
ISO11439 standard,BV,ECER110
-
WP/TP:
-
200/300bar
-
Test:
-
Hydrostatic test, UT test
|
Type:
CNP20-50-232A
Manufacturer: Zhejiang Tianen Pressure Vessel Co., Ltd. Nominal Outer Dia.(mm):232 Volume(L): 50 Length(mm): 1445 Weight(kg): 53 Nominal working Pressure(MPa): 20 |
|
CNG type I Cylinder |
||||||
|
Serial No. |
Type |
Nominal Outer Dia. (mm) |
Volume (L) |
Length (mm) |
Weight (kg) |
Nominal working Pressure (MPa) |
|
1 |
CNP20-20-232A |
232 |
20 |
650 |
27 |
20 |
|
2 |
CNP20-25.5-232A |
232 |
25.5 |
800 |
32 |
20 |
|
3 |
CNP20-28-232A |
232 |
28 |
860 |
35 |
20 |
|
4 |
CNP20-30-232A |
232 |
30 |
915 |
34 |
20 |
|
5 |
CNP20-34-232A |
232 |
34 |
1025 |
37 |
20 |
|
6 |
CNP20-50-232A |
232 |
50 |
1445 |
53 |
20 |
|
7 |
CNP20-57-356A |
356 |
57 |
800 |
67 |
20 |
|
8 |
CNP20-65-356A |
356 |
65 |
890 |
72 |
20 |
|
9 |
CNP20-70-356A |
356 |
70 |
945 |
75 |
20 |
|
10 |
CNP20-77-356A |
356 |
77 |
1025 |
80 |
20 |
|
11 |
CNP20-90-356A |
356 |
90 |
1175 |
88 |
20 |
|
12 |
CNP20-100-356A |
356 |
100 |
1290 |
95 |
20 |
|
13 |
CNP20-110-356A |
356 |
110 |
1400 |
104 |
20 |
|
14 |
CNP20-113-356A |
356 |
113 |
1430 |
106.5 |
20 |
|
15 |
CNP20-120-356A |
356 |
120 |
1505 |
112 |
20 |
|
16 |
CNP20-130-356A |
356 |
130 |
1610 |
120 |
20 |
|
17 |
CNP20-145-356A |
356 |
145 |
1755 |
132 |
20 |
|
18 |
CNP20-150-356A |
356 |
150 |
1835 |
135 |
20 |
|
19 |
CNP20-80-406A |
406 |
80 |
880 |
91 |
20 |
|
20 |
CNP20-90-406A |
406 |
90 |
960 |
99 |
20 |
|
21 |
CNP20-100-406A |
406 |
100 |
1050 |
107 |
20 |
|
22 |
CNP20-110-406A |
406 |
110 |
1135 |
115 |
20 |
|
23 |
CNP20-120-406A |
406 |
120 |
1220 |
123 |
20 |
