Quick Details
-
Brand Name:
-
TSD
-
Keyword:
-
OLED Display
-
Module size:
-
26.7(W)x19.26(H)x1.41(D)
-
Viewing Area:
-
23.74 (W) x 12.864(H)
-
Active Area:
-
21.744(W) x10.864(H)
-
Resolution:
-
128*64 dots
-
ASSY.TYPE:
-
COG
-
Display color:
-
White
-
Driver IC:
-
SSD1306BZ
-
Aperture rate:
-
78%
-
Viewing Angle:
-
160°
Quick Details
-
Type:
-
OLED
-
Display Size:
-
0.96 inch
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TSD
-
Keyword:
-
OLED Display
-
Module size:
-
26.7(W)x19.26(H)x1.41(D)
-
Viewing Area:
-
23.74 (W) x 12.864(H)
-
Active Area:
-
21.744(W) x10.864(H)
-
Resolution:
-
128*64 dots
-
ASSY.TYPE:
-
COG
-
Display color:
-
White
-
Driver IC:
-
SSD1306BZ
-
Aperture rate:
-
78%
-
Viewing Angle:
-
160°

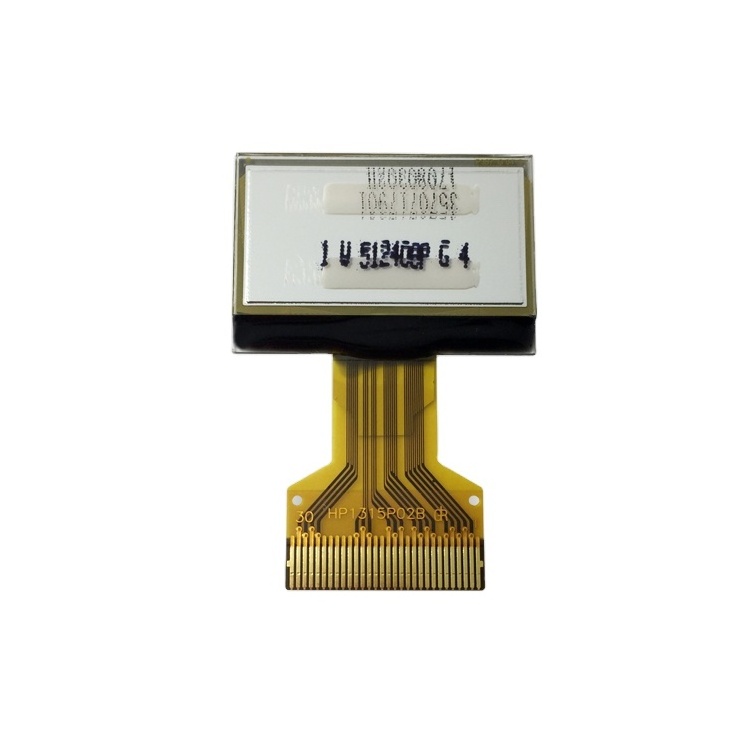

OLED LCD display module 0.96 inch 128x64 dots Thin OLED Display
| LCD type | OLED Display |
| Part No. | TSO12864-03 |
| Resolution | 128*64 dots |
| Display Color | Normally white |
| Aperture rate | 78% |
| ASSY.TYPE | COG |
| Module size | 26.7(W)x19.26(H)x1.41(D) |
| Viewing Area | 23.74 (W) x 12.864(H) |
| Active Area | 21.744(W) x10.864(H) |
| Dots Size | 0.154(W) x0.154(H) |
| Dots Pitch | 0.17(W) x0.17 (H) |
| Driver IC | SSD1306 |
| Viewing Angle | 160° |
| Interface | 6800/8080 interface, 4 wire serial interface, I 2 C |
|
||
| 500 nits 5.0 inch lcd | 5.0 inch 800*480 lcd with CTP | RTP 800*480 dots 5.0 inch lcd |
1) Our standard tft lcd module size: 1.44", 1.77", 2", 2.2'', 2.4", 2.8", 3.2", 3.5", 4.3", 5", 7", 8", 10.1".
2) Color TFT 2.4'' to 7.0'' LCD with ZIF FPC connector .
3) Delevoped 4.0''(3.97'') IPS LCD module with wide viewing angle
4) Delevoped 4.3'' IPS LCD panel , 480x272 resolution.
5) 4.3" MCU interface TFT LCD module with SSD1963 controller .
6) 3.5" transflective sunlight readable TFT .
7) Standard 3.2'', 3.5", 4.3'', 5", 7" LCD with CTP.
8) 2.4'', 2.8'', 3.2'', 4.3'', 5.0'', 7.0'' LCD display with touchscreen coverlens.
9) High brightness TFTs with Anti-reflective film with good performance under sunlight.
10) All common TFTs with Oflim can be with wide viewing angle, close to IPS panel & same as MVA glass
1. Replacement within 30 days after the shipment of products from us due to products' problems.
2. We can print your logo and stick your model No.on the cameras.
3. We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.
4. Professional technician supports. We have a good after-sales service team to solve your problems in time.
5.All goods will be inspected and tested before shipment.
6.Customer`s satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Trademanager or Email. It will be responded within 24 hours.
TEAM SOURCE DISPLAY ( TS DISPLAY)
was established in 2004.
H
ead office located in Shenzhen China.
TSD business scope covers LCD / LCD Module development, single-chip production and materials processing.
In a span of six years, we have developed thousands of LCD and LCM products for telecom, consumer electronics,
medical equipment and other applications
We follow a people-oriented, quality and customer-first approach in all of our dealings. That is why we maintain a clean
environment which is conducive for working and take the environment into account during the manufacturing process.
Find out more about the benefits of working with us. Contact us today for any of your LCD / LCM projects and requirements.
