Quick Details
-
Brand Name:
-
HUWEI
-
Dimension(L*W*H):
-
2400*1800*1950 mm, 2400*1800*1950mm
-
Weight:
-
650 KG
-
Product name:
-
fabric inspection rewinding and plaiting machine
-
Application:
-
Textile Industry
-
Power:
-
2.1KW
-
Inspection speed:
-
0-60Y/min
-
Suitable for:
-
Heavy Fabric,knitted,woven
-
Keyword:
-
fabric inspection Machine
Quick Details
-
Voltage:
-
2.1KW, AC 220V 50-HZ
-
Marketing Type:
-
New Product 2021
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HUWEI
-
Dimension(L*W*H):
-
2400*1800*1950 mm, 2400*1800*1950mm
-
Weight:
-
650 KG
-
Product name:
-
fabric inspection rewinding and plaiting machine
-
Application:
-
Textile Industry
-
Power:
-
2.1KW
-
Inspection speed:
-
0-60Y/min
-
Suitable for:
-
Heavy Fabric,knitted,woven
-
Keyword:
-
fabric inspection Machine
Products Description
HULI MECHANICAL EQUIPMENT

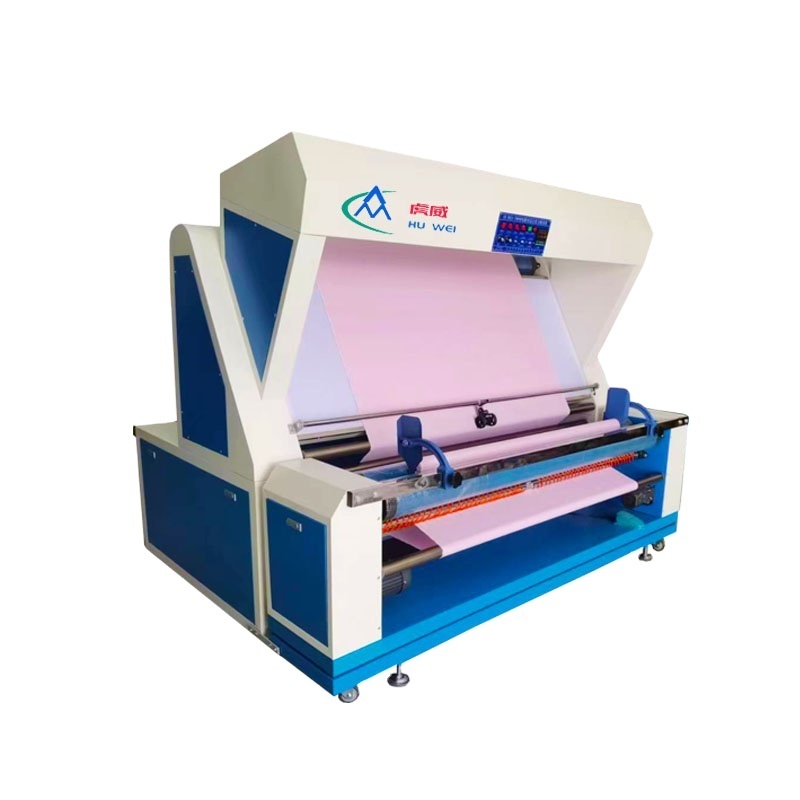

fabric inspection rolling machine Main features:
1.Inspection fabric. Fabric rolling. Measurement. Automatic edge alignment for re-rolling fabric.
2.Electronic eye automatically sense,realize releasing fabric without tension.
3.Smoothing fabric function ( Special for elastic fa brie, thread roller can spreading fabric edges to two side, avoid the edges are folding on themselves and moving toward the center of the roller)
4.The upper and lower inspection light boxes, the lower light box inspection panel is made of high-quality acrylic board, the soft light can reduce the operator's eye fatigue problem, and the surface is frosted glass.
5.Use with imported electric control appliances.
6.Suitable for Knit, Woven , elastic fabric and other general fabric.
2.Electronic eye automatically sense,realize releasing fabric without tension.
3.Smoothing fabric function ( Special for elastic fa brie, thread roller can spreading fabric edges to two side, avoid the edges are folding on themselves and moving toward the center of the roller)
4.The upper and lower inspection light boxes, the lower light box inspection panel is made of high-quality acrylic board, the soft light can reduce the operator's eye fatigue problem, and the surface is frosted glass.
5.Use with imported electric control appliances.
6.Suitable for Knit, Woven , elastic fabric and other general fabric.
|
fabric inspection rolling machine Technical Parameters：
|
|
|
|
|
||||
|
Model
|
|
HW-780 SR
|
|
|
||||
|
Fabric Input / Output
|
|
rolled to rolled
|
|
|
||||
|
Total power
|
|
2.1 KW
|
|
|
||||
|
Working speed
|
|
0-60 Y/min
|
|
|
||||
|
Working Fabric width
|
|
1900 mm/2100 mm or customized
|
|
|
||||
|
Supply voltage
|
|
220 V/50 HZ/Single phase
|
|
|
||||
|
Weight
|
|
650 KG
|
|
|
||||
|
Dimensions(L*B*H)
|
|
2400 *1800 *1950 mm
|
|
|
||||
Machine Working Diagram
Details Images
Smoothing fabric roller
Spreading fabric to two side,let fabric running toward to the center
Use with imported brand electric appliances
Mitsubishi frequency converter
France Schneider relay
button operator panel
measurement data display
upper and lower both have led lamp automatic edge control
2. meter counter
Automatic edge alignment sensor let fabric one side edge accurately
Control cloth release speed
Operator panel
