- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Daocheng mechanical water meter
-
Model Number:
-
Single Jet Water Meter Multi-jet meters
-
Product Name:
-
Multi Jet Dry Brass Water Meter with External Regulating Port
-
Keywords:
-
dry mechanical water meter
-
Output:
-
DN15 DN20 DN25 Customized water meter
-
Pipe material:
-
cooper or cast iron
-
Addable module:
-
LoRa LoRaWan NB-loT IC FR prepaid water meters
-
durable years:
-
6-10years
-
Color:
-
bule or custom color for the meters
-
Type::
-
Multi-jet meters
-
Body material:
-
SUS/cooper/cast iron/plastic
-
Model:
-
water meter for the residential apartment building
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
-
Warranty:
-
1-3 years for the flow meter
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Daocheng mechanical water meter
-
Model Number:
-
Single Jet Water Meter Multi-jet meters
-
Product Name:
-
Multi Jet Dry Brass Water Meter with External Regulating Port
-
Keywords:
-
dry mechanical water meter
-
Output:
-
DN15 DN20 DN25 Customized water meter
-
Pipe material:
-
cooper or cast iron
-
Addable module:
-
LoRa LoRaWan NB-loT IC FR prepaid water meters
-
durable years:
-
6-10years
-
Color:
-
bule or custom color for the meters
-
Type::
-
Multi-jet meters
-
Body material:
-
SUS/cooper/cast iron/plastic
-
Model:
-
water meter for the residential apartment building
Product Description

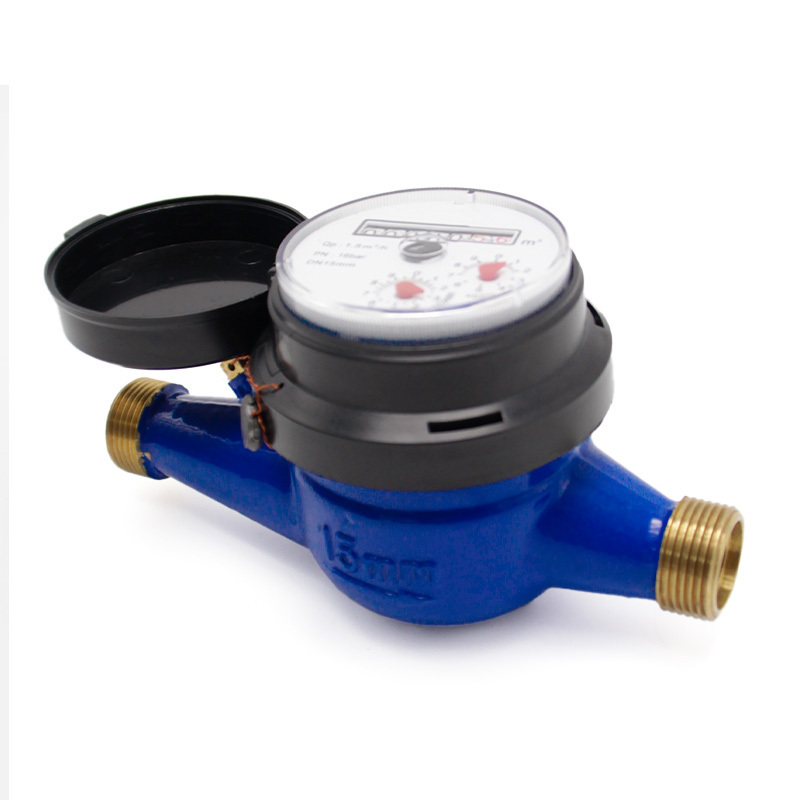

ISO4604 Class B IP68 Brass Rotating Blade Dry Single Jet Water Meter widely used cold mechanical water meter
Specification
DN15 DN20 DN25 mechanical water meter flowmeter
|
item
|
value
|
|
Warranty
|
1-3 years for the flow meter
|
|
Customized support
|
OEM, ODM, OBM, Software reengineering
|
|
Place of Origin
|
China
|
|
|
Hebei
|
|
Brand Name
|
Daocheng mechanical water meter
|
|
Model Number
|
Single Jet Water Meter Multi-jet meters
|
|
Type
|
Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
|
|
Product Name
|
Dry Single Jet Water Meter widely used cold mechanical water meter
|
|
Keywords
|
mechanical water meter
|
|
Output
|
DN15 DN20 DN25 Customized water meter
|
|
Pipe material
|
cooper or cast iron
|
|
Addable module
|
LoRa LoRaWan NB-loT IC FR prepaid water meters
|
|
durable years
|
6-10years
|
|
Color
|
bule or custom color for the meters
|
|
Type:
|
Multi-jet meters
|
|
Body material
|
SUS/cooper/cast iron/plastic
|
|
Model
|
water meter for the residential apartment building
|
Smart civil clod water meter
Mechanical water meter for measuring the total volume of water flowing through the tap water pipe instrument, suitable for unidirectional water flow, hot water and corrosive liquid can not be used, this mechanical water meter has advanced structure, accurate measurement, long service life and other characteristics, water meter counter is a pointer, word wheel indicator, product measurement performance in line with the national (drinking cold water meter) standard requirements.
cold mechanical water meter feature
1. The water meter is made of special wear-resistant material with high measurement stability.
2. The indicator device is eye-catching, easy to read data.
3. The calculator has high precision, and the vibration does not change.
4. The starting flow is small, which can effectively prevent water stealing.
Feature for the mechanical water meter
1.Dry-dial
2.Multi-jet
3.Magnetic drive
4.Vacuum sealed register.The reading can be kept clear in longterm service.
5.Antimagnetic construction
6.Measuring accuracy is up to class B of ISO4064 Standard.
7.Selected high quality material ,copper shell.
8.Series universal use. Easy interchange & maintenance.
2.Multi-jet
3.Magnetic drive
4.Vacuum sealed register.The reading can be kept clear in longterm service.
5.Antimagnetic construction
6.Measuring accuracy is up to class B of ISO4064 Standard.
7.Selected high quality material ,copper shell.
8.Series universal use. Easy interchange & maintenance.
mechanical water meters weight
|
Diameter(mm)
|
Q4(M3/H )
|
Q3(M3/H )
|
Q2(M3/H )
|
Q1(M3/H )
|
Weight(KG)
|
|
DN15
|
3.125
|
2.5
|
0.05
|
0.03125
|
1.2
|
|
DN20
|
5
|
4
|
0.08
|
0.05
|
1.6
|
|
DN25
|
7.875
|
6.3
|
0.126
|
0.07875
|
2.6
|
|
DN32
|
12.5
|
10
|
0.2
|
0.125
|
3.2
|
|
DN40
|
20
|
16
|
0.32
|
0.2
|
4.5
|
|
DN50
|
31.5
|
25
|
3.15
|
0.5
|
7
|
mechanical water meter
Specification
|
Diameter
|
mm
|
15
|
20
|
25
|
||
|
Turndown Ratio
|
Q3/Q1
|
≥100
|
|
|
||
|
Q4(overload flow)
|
m3/h
|
3.125
|
5
|
7.875
|
||
|
Q3(constant flow)
|
m3/h
|
2.5
|
4
|
6.3
|
||
|
Q2(boundary flow)
|
m3/h
|
0.05
|
0.064
|
0.1008
|
||
|
Q1(minimum flow)
|
m3/h
|
0.025
|
0.04
|
0.063
|
||
|
Pressure loss
|
∆ p
|
≤63
|
|
|
||
|
Maximum Pressure Allowed
|
MPa
|
≤1
|
|
|
||
|
Working Frequency
|
MHz
|
470-510
|
|
|
||
|
Battery Life
|
year
|
≥6
|
|
|
||
|
Remote Style
|
/
|
LoRa
|
|
|
||
|
Transmit Power
|
dBM
|
≤20
|
|
|
||
|
Valve Work Power
|
mA
|
45
|
|
|
||
|
constant Current
|
uA
|
≤5
|
|
|
||
More choose for the water meters
As the basis, the mechanical water meter can add more modules and functions to achieve the transformation of the smart water meter.
|
Wired remote water meters
|
Photoelectric direct reading water meter
|
Pulse water meter
|
ModBus water meter
|
M-Bus 485 flow meters
|
|
|
Wireless remote flow meter
|
FSK water meters
|
LoRa smart flowmeter
|
LoRa Wan water meters
|
NB-loT water meter
|
|
|
|
GPRS/4G water meter
|
Bluetooth water meter
|
Cat-1 water meters
|
Infrared water meter
|
|
|
Water meter data sampling
|
mechanical water meter( Reed tube water meter, Hall water meter, Non-magnetic radar water meter)
|
|
ultrasonic water meter
|
electromagnetic flowmeter
|
|
Packing & Delivery
We use carton to pack prepaid water meter from DN 15 to DN 35.
Accessories: One instruction manual, pipe fittings, connecting nut and sealing washer two pieces each.
We use wooden to pack prepaid meter from DN 40 to DN 200 including DN 50.
Accessories: One instruction manual, pipe fittings, connecting nut and sealing washer two pieces each.
We use wooden to pack prepaid meter from DN 40 to DN 200 including DN 50.
