Quick Details
-
Brand Name:
-
TOADA, TOADA
-
Theory:
-
Infrared induction
-
Output:
-
220V
-
Description:
-

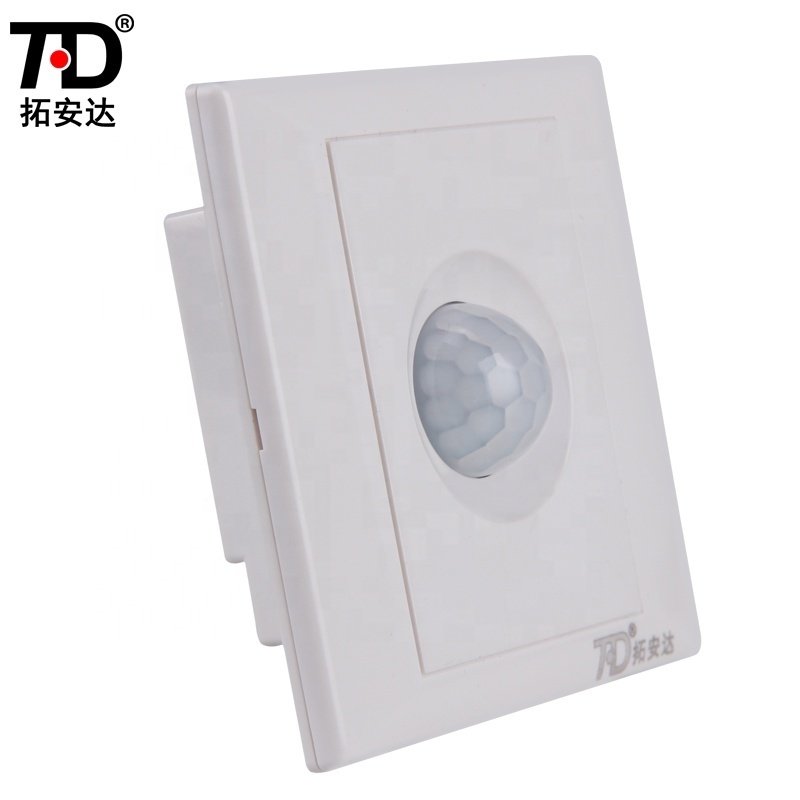

Infrared IR Body Motion Sensor
-
Product Model:
-
TAD-T28AR
-
Input voltage:
-
110V-220V/AC
-
Color:
-
White
-
Time Delay:
-
16s-360s (adjustable)
-
Ambient Light:
-
5-500LUX (adjustable)
-
Detection Distance:
-
1-8m
-
Detection angle:
-
120 Degree
-
Load Power:
-
Resistive@ 200W
-
Installation Height:
-
1.8~2.5m
Quick Details
-
Usage:
-
Position Sensor, Control LED
-
Model Number:
-
TAD-T28AR
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TOADA, TOADA
-
Theory:
-
Infrared induction
-
Output:
-
220V
-
Description:
-
Infrared IR Body Motion Sensor
-
Product Model:
-
TAD-T28AR
-
Input voltage:
-
110V-220V/AC
-
Color:
-
White
-
Time Delay:
-
16s-360s (adjustable)
-
Ambient Light:
-
5-500LUX (adjustable)
-
Detection Distance:
-
1-8m
-
Detection angle:
-
120 Degree
-
Load Power:
-
Resistive@ 200W
-
Installation Height:
-
1.8~2.5m
Specification
TAD-T28AR
86-type, Unipolar, all types of lamps
1. Operating voltage: ACll0-250V (50/60Hz)
2. Ambient temperature: -20 'C - +50' C
3. Own power: <0.016W
4. Load type: Incandescent lamp, ventilating fan, various types of lamps, be available to all electric apparatus.
5. Load power: 25W-200W; 5W-200W; OW-1000 W; (Note: when connecting the inductive load, the maximum power will drop 40 percent).
6. Output forms: positive output (be close usually, open after induction); reverse output
(be open usually, close after induction), with beep alarm (about 70 decibels)
7. Optical control range (adjustable): 5Lux-500Lux ± 20% (default setting is 5 Lux ± 20%)
8. Time delay closing time (adjustable): 16-350 seconds ±30% (default setting is 16seconds ±30%)
9. Induction range: (if installed on the wall, the height from the ground is about 1. 5m)
(Ceiling attached installation: the point-suction type is recommended, its induction is up
to 360 degree, otherwise, it will be constrained by the installing height, the infrared signal
of the leg part of human body is weak, the induction distance is also relative short, and
therefore, the actual induction range will be smaller)
