Quick Details
-
Brand Name:
-
CAMBO/OEM
-
Model Number:
-
Type TC
-
color:
-
White/Blue/Red/Black/Brown/Yellow etc or customized
-
Cross section:
-
14awg
-
Voltage:
-
600V
-
Conductor type:
-
stranded copper
-
Used:
-
industrial power or control circuits
-
Keyword:
-
type TC control cable
-
MOQ:
-
3000meter
Quick Details
-
Conductor Material:
-
Copper, pure copper
-
Insulation Material:
-
UL 1277
-
Place of Origin:
-
China
-
Brand Name:
-
CAMBO/OEM
-
Model Number:
-
Type TC
-
color:
-
White/Blue/Red/Black/Brown/Yellow etc or customized
-
Cross section:
-
14awg
-
Voltage:
-
600V
-
Conductor type:
-
stranded copper
-
Used:
-
industrial power or control circuits
-
Keyword:
-
type TC control cable
-
MOQ:
-
3000meter
❤Welcome to Cambo manufacturers direct sales❤
15 years of Cable production experience
Contact us at least 10% discount
15 years of Cable production experience
Contact us at least 10% discount
Product Description

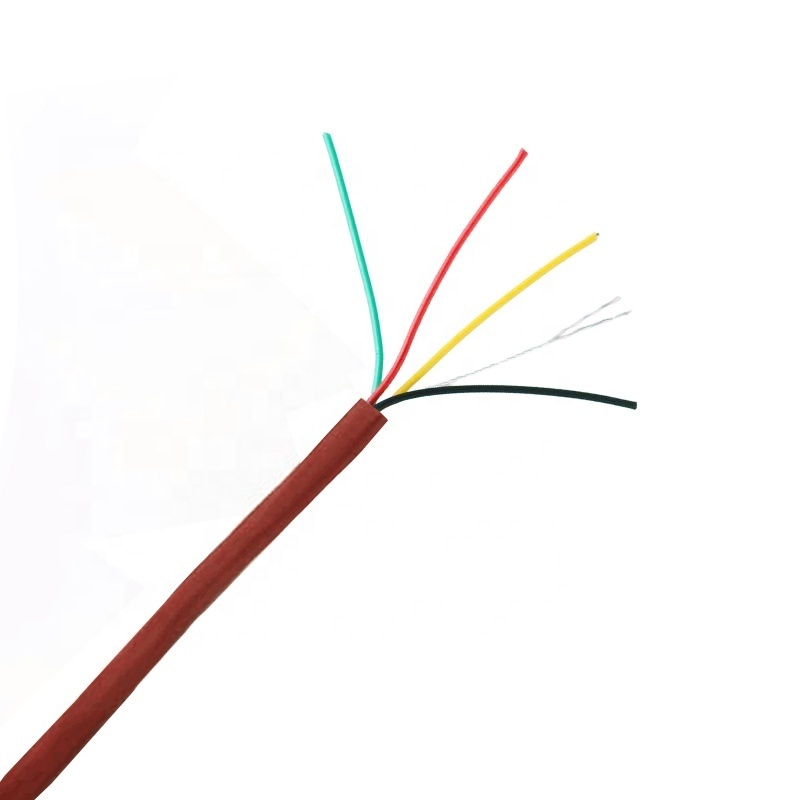

Type TC Control Cable. 600 Volt. Copper Conductors. PVC/Nylon Insulated Singles Sizes 14 AWG through 10 AWG. Overall PVC Jacket.Heat, Moisture and Sunlight Resistant.
APPLICATIONS
Type TC Control Cable is for use in industrial power or control circuits where small diameter, flame retardant cables are desired.
Primary installations include cable trays, raceways, and outdoor locations where supported by a messenger wire. Conductors may be used at temperatures not to exceed 75°C in wet locations or 90°C in dry locations .
Primary installations include cable trays, raceways, and outdoor locations where supported by a messenger wire. Conductors may be used at temperatures not to exceed 75°C in wet locations or 90°C in dry locations .
Data sheet and more detail about this type cable.
Type TC Control Cable meets or exceeds the applicable requirements of the following standards and specifications:
• ASTM - (All applicable standards)
• UL 1277 Electrical Power and Control Tray Cables
• NFPA 70 (NEC)
• ICEA S-58-679 - Control Cable Conductor Identification Method 1, Table 2
• ASTM - (All applicable standards)
• UL 1277 Electrical Power and Control Tray Cables
• NFPA 70 (NEC)
• ICEA S-58-679 - Control Cable Conductor Identification Method 1, Table 2
|
Type
|
Number of Conductors /size
|
|
|
PVC insulated
|
Jacket Thickness
|
Overall Diameter
|
Approximate
Weight
|
||
|
|
n
|
*
|
AWG
|
mm
|
mm
|
mm
|
kg/km
|
||
|
TC-THHN
|
2
|
*
|
14AWG
|
0.38
|
1.14
|
8.5
|
102
|
||
|
TC-THHN
|
3
|
*
|
14AWG
|
0.38
|
1.14
|
9.0
|
130
|
||
|
TC-THHN
|
4
|
*
|
14AWG
|
0.38
|
1.14
|
9.7
|
161
|
||
|
TC-THHN
|
5
|
*
|
14AWG
|
0.38
|
1.14
|
10.5
|
193
|
||
|
TC-THHN
|
6
|
*
|
14AWG
|
0.38
|
1.14
|
11.3
|
226
|
||
|
TC-THHN
|
7
|
*
|
14AWG
|
0.38
|
1.14
|
11.3
|
249
|
||
|
TC-THHN
|
9
|
*
|
14AWG
|
0.38
|
1.52
|
14.9
|
360
|
||
|
TC-THHN
|
10
|
*
|
14AWG
|
0.38
|
1.52
|
14.9
|
382
|
||
|
TC-THHN
|
12
|
*
|
14AWG
|
0.38
|
1.52
|
15.4
|
435
|
||
|
TC-THHN
|
15
|
*
|
14AWG
|
0.38
|
1.52
|
16.9
|
530
|
||
|
TC-THHN
|
16
|
*
|
14AWG
|
0.38
|
1.52
|
16.9
|
553
|
||
|
TC-THHN
|
19
|
*
|
14AWG
|
0.38
|
1.52
|
17.7
|
636
|
||
|
TC-THHN
|
20
|
*
|
14AWG
|
0.38
|
1.52
|
18.7
|
677
|
||
|
TC-THHN
|
25
|
*
|
14AWG
|
0.38
|
1.52
|
20.6
|
829
|
||
|
TC-THHN
|
30
|
*
|
14AWG
|
0.38
|
2.03
|
22.7
|
1020
|
||
|
TC-THHN
|
37
|
*
|
14AWG
|
0.38
|
2.03
|
24.4
|
1219
|
||
Type TC-THHN or THWN Conductors 12AWG
|
|
Number of Conductors/size
|
|
|
PVC insulated
|
|
|
Weight
|
||
|
|
n
|
*
|
AWG
|
mm
|
mm
|
mm
|
kg/km
|
||
|
TC-THHN
|
2
|
*
|
12AWG
|
0.38
|
1.14
|
9.5
|
136
|
||
|
TC-THHN
|
3
|
*
|
12AWG
|
0.38
|
1.14
|
10.0
|
176
|
||
|
TC-THHN
|
4
|
*
|
12AWG
|
0.38
|
1.14
|
10.8
|
220
|
||
|
TC-THHN
|
5
|
*
|
12AWG
|
0.38
|
1.14
|
11.8
|
267
|
||
|
TC-THHN
|
6
|
*
|
12AWG
|
0.38
|
1.52
|
13.5
|
337
|
||
|
TC-THHN
|
7
|
*
|
12AWG
|
0.38
|
1.52
|
13.5
|
371
|
||
|
TC-THHN
|
9
|
*
|
12AWG
|
0.38
|
1.52
|
16.8
|
497
|
||
|
TC-THHN
|
10
|
*
|
12AWG
|
0.38
|
1.52
|
16.8
|
530
|
||
|
TC-THHN
|
12
|
*
|
12AWG
|
0.38
|
1.52
|
17.3
|
607
|
||
|
TC-THHN
|
15
|
*
|
12AWG
|
0.38
|
1.52
|
19.2
|
744
|
||
|
TC-THHN
|
16
|
*
|
12AWG
|
0.38
|
1.52
|
19.2
|
778
|
||
|
TC-THHN
|
19
|
*
|
12AWG
|
0.38
|
1.52
|
20.1
|
900
|
||
|
TC-THHN
|
20
|
*
|
12AWG
|
0.38
|
2.03
|
22.2
|
1010
|
||
|
TC-THHN
|
25
|
*
|
12AWG
|
0.38
|
2.03
|
24.5
|
1235
|
||
|
TC-THHN
|
30
|
*
|
12AWG
|
0.38
|
2.03
|
25.8
|
1440
|
||
|
TC-THHN
|
37
|
*
|
12AWG
|
0.38
|
2.03
|
27.8
|
173
|
||
|
Type
|
Number of
Conductors/size |
|
|
PVC insulated
|
Jacket
Thickness |
Overall Diameter
|
Approximate
Weight
|
||
|
|
n
|
*
|
AWG
|
mm
|
mm
|
mm
|
kg/km
|
||
|
TC-THHN
|
2
|
*
|
10AWG
|
0.51
|
1.14
|
11.2
|
196
|
||
|
TC-THHN
|
3
|
*
|
10AWG
|
0.51
|
1.14
|
11.8
|
258
|
||
|
TC-THHN
|
4
|
*
|
10AWG
|
0.51
|
1.52
|
13.7
|
349
|
||
|
TC-THHN
|
5
|
*
|
10AWG
|
0.51
|
1.52
|
14.9
|
422
|
||
|
TC-THHN
|
7
|
*
|
10AWG
|
0.51
|
1.52
|
16.1
|
550
|
||
|
TC-THHN
|
9
|
*
|
10AWG
|
0.51
|
1.52
|
20.3
|
739
|
||
|
TC-THHN
|
12
|
*
|
10AWG
|
0.51
|
2.03
|
21.9
|
964
|
||
|
TC-THHN
|
16
|
*
|
10AWG
|
0.51
|
2.03
|
24.2
|
1233
|
||
|
TC-THHN
|
19
|
*
|
10AWG
|
0.51
|
2.03
|
25.5
|
1425
|
||
