- Product Details
- {{item.text}}
Quick Details
-
Color:
-
full color, 1R1G1B
-
Panel Size:
-
960*240mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
GJ-P30
-
Pixel Pitch:
-
30mm
-
Brightness:
-
4500 CD, 4500cd
-
pixel density:
-
1024px/㎡
-
Contrast Ratio:
-
≥16 bit
-
Color Depth:
-
1R1G1B
-
Lifespan (hours):
-
≥100000 hours
-
IP Rating:
-
IP45
-
HS Code:
-
8531200000
-
Resolution:
-
1024pixels/㎡
-
View Angle（H/V）:
-
H160 / V140
-
Product name:
-
Flexible Led Screen
-
Viewing angle:
-
H160 V140
-
Pixel density:
-
1024 pixels/㎡
-
Life span:
-
100000 hours
-
Refresh rate:
-
3840HZ
-
LED chip:
-
SMD2020
-
Installation:
-
Adhesive, Hanging, Fixed
Quick Details
-
Application:
-
Indoor
-
Type:
-
LED
-
Brand Name:
-
GUOJIA
-
Color:
-
full color, 1R1G1B
-
Panel Size:
-
960*240mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
GJ-P30
-
Pixel Pitch:
-
30mm
-
Brightness:
-
4500 CD, 4500cd
-
pixel density:
-
1024px/㎡
-
Contrast Ratio:
-
≥16 bit
-
Color Depth:
-
1R1G1B
-
Lifespan (hours):
-
≥100000 hours
-
IP Rating:
-
IP45
-
HS Code:
-
8531200000
-
Resolution:
-
1024pixels/㎡
-
View Angle（H/V）:
-
H160 / V140
-
Product name:
-
Flexible Led Screen
-
Viewing angle:
-
H160 V140
-
Pixel density:
-
1024 pixels/㎡
-
Life span:
-
100000 hours
-
Refresh rate:
-
3840HZ
-
LED chip:
-
SMD2020
-
Installation:
-
Adhesive, Hanging, Fixed
Specification
|
Key attributes
|
|
|
Application
|
Indoor
|
|
Type
|
LED
|
|
Brand Name
|
GUOJIA
|
|
Other attributes
|
|
|
Place of Origin
|
Guangdong,China
|
|
use
|
advertising publish, retail store, shopping mall, display of dishes, welcome display, self-service business, exhibition hall,
wayfinding, airport, subway, elevator, Restaurant & Hotel Supplies, education, medical treatment |
|
Specification
|
video wall
|
|
Color
|
Full color
|
|
Model Number
|
GJ-P30
|
|
Pixel Pitch
|
30mm
|
|
Pixel color
|
1R1G1B
|
|
Transparency rate
|
85%
|
|
Brightness
|
4500cd
|
|
Waterproof
|
IP45
|
Video Details
Product Parameters
|
Model
|
GJ-PH5
|
GJ-PH6
|
GJ-PH5-10
|
GJ-PH8
|
GJ-PH10
|
GJ-PH16
|
|||||
|
Pixel pitch(mm)
|
5-5
|
6-6
|
5-10
|
8-8
|
10-10
|
16-16
|
|||||
|
LED chip
|
SMD2020
|
|
|
|
|
|
|||||
|
Module size(mm)
|
1000*160
|
996*192
|
960*160
|
960*256
|
960*160
|
960*256
|
|||||
|
Pixel density px/㎡
|
40000
|
27777
|
20000
|
15625
|
10000
|
3906
|
|||||
|
Color
|
1R1G1B
|
|
|
|
|
|
|||||
|
The optimal viewing distance
|
3-80m
|
5-100m
|
8-100m
|
8-100m
|
10-100m
|
12-100m
|
|||||
|
Transparency
|
55%
|
65%
|
68%
|
50%
|
55%
|
65%
|
|||||
|
Weight kg/㎡
|
3.5
|
|
|
|
|
|
|||||
|
Viewing angle
|
160°
|
|
|
|
|
|
|||||
|
Thickness
|
4-6mm
|
|
|
|
|
|
|||||
|
Average power w/㎡
|
≤300
|
|
|
|
|
|
|||||
|
Max consumption w/㎡
|
≤800
|
|
|
|
|
|
|||||
|
Refresh rate
|
≥3840
|
|
|
|
|
|
|||||
|
Brightness cd/㎡
|
5000
|
|
|
|
|
|
|||||
|
Life
|
100000 hrs
|
|
|
|
|
|
|||||
|
Waterproof grade
|
IP45
|
|
|
|
|
|
|||||
Product Description

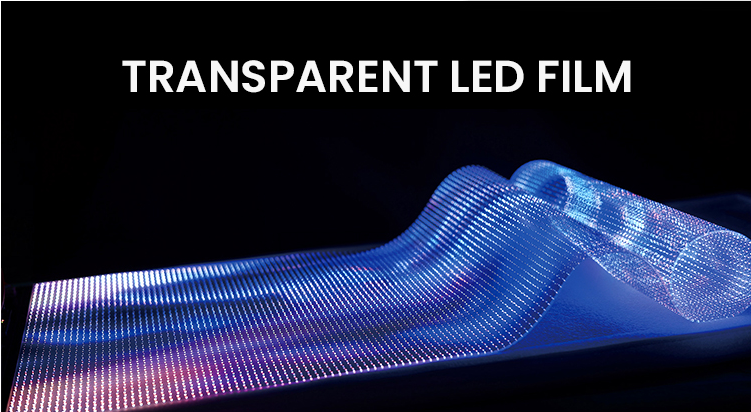

LED FILM SCREEN SERIES

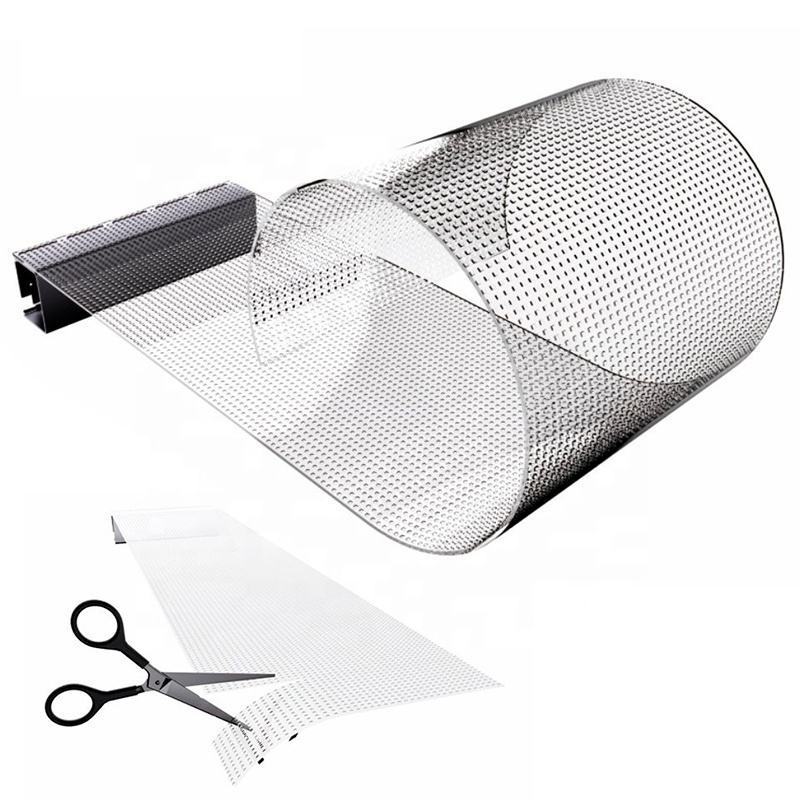

• Can be easily cut to desired size
•
Can be applied to glass/wall surfaces of any curvature
High transparency rate and easy to install.
High-temperature resistance
Operating environment
:
-10~+65℃/10~90%RH
Storage environment: -40+85 ℃/ 10~90 %RH
Ultra-thin and ultra-light
The thickness of the film screen is 1 - 3mm and the weight is 2KG/ ㎡
Exhibition
Packing & Delivery
FAQ
1.Who are we?
Shenzhen
Guojia Optoelectronics
Co., Ltd
. is a subsidiary of Guojia Group. It is a high-tech enterprise (registered capital of 50 million) to focus on LED manufacturing, research and development, design, sales and engineering services.
2. Are you a manufacturer or company?
We are a LED display factory with 15 years experience,The company's main products are LED transparent screen, LED window display screen,LED screen,LED lamp screen and LED lighting and other applications.Our products are exported to North America, Europe and the Middle East and other overseas markets, such as Sweden, Britain, Italy, Germany, Romania, Serbia, Poland, Turkey, Israel, Spain, Portugal, the United States, cartels, Singapore and more than 110 countries.
3.What is your minimum order quantity?
Your order can accept any quantity. And the price for large quantities can be negotiated.
4.What technical support can you provide?
We provide various technical training free of charge, including the operation and maintenance training of LED display in the
factory. We can send a team of engineers to the customer's country to guide the installation.
