Quick Details
-
Brand Name:
-
ONV
-
Model Number:
-
ONV-POE31004PLD
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
4 port Commercial PoE Switch
-
PoE Standard:
-
IEEE802.3 Af/at
-
Product size:
-
118*85*27mm(L*W*H)
-
Network distance:
-
250 meters
-
Transmission Method:
-
store-and-forward
-
Operating temperature:
-
-20°~ 55°C
-
Power pin::
-
12/36(45/78 optional)
-
Status LEDs:
-
System: Power, POE Maximum Power
-
Warranty:
-
1 Year-2Year
-
Certification:
-
FCC, ce, RECH, RoHS
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
1.6G
-
Brand Name:
-
ONV
-
Model Number:
-
ONV-POE31004PLD
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
4 port Commercial PoE Switch
-
PoE Standard:
-
IEEE802.3 Af/at
-
Product size:
-
118*85*27mm(L*W*H)
-
Network distance:
-
250 meters
-
Transmission Method:
-
store-and-forward
-
Operating temperature:
-
-20°~ 55°C
-
Power pin::
-
12/36(45/78 optional)
-
Status LEDs:
-
System: Power, POE Maximum Power
-
Warranty:
-
1 Year-2Year
-
Certification:
-
FCC, ce, RECH, RoHS
10/100Mbps access , gigabit uplink
—
5*10/100Base-TX RJ45 ports allow users to flexibly network to meet the networking requirements of various scenarios.
— Support non-blocking wire speed forwarding .
—
Support full duplex based on IEEE802.3x and half duplex based on Backpressure
Smart PoE power supply function
— 4*10/100Base-TX RJ45 ports support PoE power supply, which meets the requirements of PoE power supply in various scenarios in the security field .
— Comply with IEEE 802.3af /at PoE power supply standard, automatically identify PoE devices for power supply without damaging non-PoE devices. The maximum PoE output power is 250W, and the maximum PoE output power of a single port is 30W.
— The PoE port supports the priority mechanism. When the remaining power is insufficient, the power supply of the high-priority port is preferentially guaranteed to prevent the device from being overloaded.
Innovative function
— AI self-healing mode (D): When the switch status is “ON” (default OFF), port 1-4 can support the watchdog function and automatically detects the data communication status in real-time.
— long-distance transmission and VLAN mode (E): When the switch status is “ON” (default OFF), Port 1-4 rate is 10M/250m transmission, the port physical VLAN isolated, broadcast storm, the transmission distance can up to 250m; solve the problem of poor transmission caused by line aging.
— Real-time power and power priority mode (P): When the switch status is "ON" (default OFF), the POE real-time power grading indicator lights up, quickly understanding the power consumption of the host, and enabling the port priority function to ensure the port 1 power output.
|
Model
|
ONV-POE31004PLD
|
ONV-POE31004PLD-at
|
||
|
Interface Characteristics
|
|
|
||
|
Interface
|
4*10/100Base-TX PoE ports (Data/Power)
1*10/100Base-TX uplink RJ45 port (Data)
|
|
||
|
Ethernet Port Feature
|
Port 1-4 support 10/100 Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption
|
|
||
|
Twisted Pair Transmission
|
10BASE-T:Cat5 UTP(≤250 meter)
100BASE-TX:Cat5 or later UTP(≤100 meter) |
|
||
|
Functional Switch
|
E is the "ON" state, port 1-4 can support long-distance transmission 10M/250m and VLAN transmission mode; when "OFF", 100 meters
transmission. |
|
||
|
|
D is the "ON" state, port 1-4 can support AI self-healing mode; when "OFF", no communication self-healing function.
|
|
||
|
|
P is the "ON" state, POE outputs total power and priority indication mode; when "OFF", no power indication function.
|
|
||
|
Chip Parameter
|
|
|
||
|
Network Protocol
|
IEEE802.3 10BASE-T
IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX, IEEE802.3x
|
|
||
|
Forwarding Mode
|
Store and Forward(Full Wire Speed)
|
|
||
|
Switching Capacity
|
1.6Gbps
|
|
||
|
Forwarding Rate@64byte
|
0.74Mpps
|
|
||
|
MAC
|
1K
|
|
||
|
Buffer Memory
|
1632K
|
|
||
|
LED Indicator
|
Power: PWR (green); Network: Link (yellow); POE: PoE (green); POE power:P≤25% (green block), 25%75%(red block)
|
|
||
|
PoE & Power
|
|
|
||
|
PoE Port
|
Port 1-4 support PoE @ IEEE802.3af/at
|
|
||
|
Power Supply Pin
|
Default 1/2(+), 3/6(-); Optional 4/5(+), 7/8(-)
|
|
||
|
Max Power Per Port
|
30W/15.4W
|
|
||
|
Total PWR / Input Voltage
|
65W/ 52VDC
|
110W/ 52VDC
|
||
|
Power Consumption
|
Standby<4W, Full load<60W
|
Standby<6W, Full load<110W
|
||
|
Power Supply
|
External power adapter, AC100~240V 50-60Hz 1A
|
External power adapter, AC100~240V 50-60Hz 2A
|
||
|
Physical Parameter
|
|
|
||
|
Operation TEMP / Humidity
|
-20~+55°C;5%~90% RH Non condensing
|
|
||
|
Storage TEMP / Humidity
|
-40~+75°C;5%~95% RH Non condensing
|
|
||
|
Dimension (L*W*H)
|
118*89*28mm
|
|
||
|
Net /Gross Weight
|
<0.3kg / <0.8kg
|
<0.5kg / <1.0kg
|
||
|
Installation
|
desktop type ,wall mounted,19 inch 1U cabinet installation
|
|
||
|
Certification & Warranty
|
|
|
||
|
Lightning protection
|
Lightning protection: 4KV 8/20us; Protection level: IP30
|
|
||
|
Certification
|
CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS;
|
|
||
|
Warranty
|
3 years , lifelong maintenance.
|
|
||
|
Model
|
Description
|
|
ONV-POE31004PLD
|

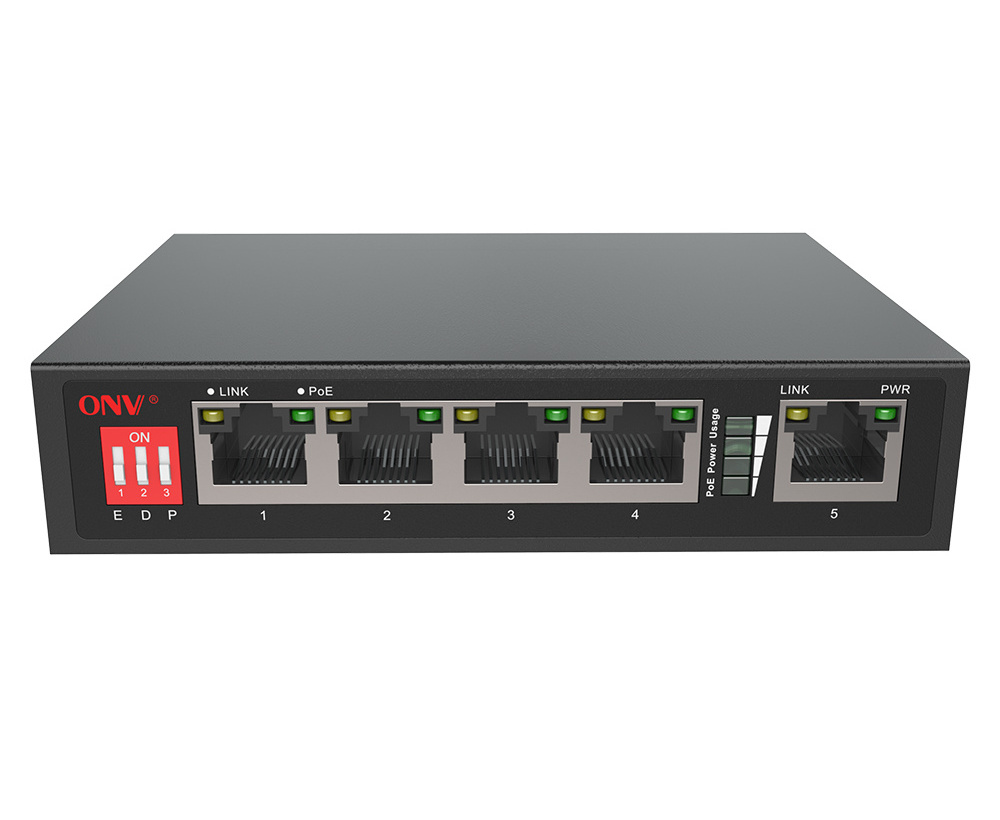

AI PoE switch with 4*10/100M PoE port and 1*10/100M uplink RJ45 port. Port1-4 can support IEEE 802.3af/at PoE standard. Adjust
function switch, port 1-4 can support VLAN isolation, 10M/250m transmission, AI self-healing, power indication, and power supply
priority, External 65W power supply. |
|
ONV-POE31004PLD-at
|
AI PoE switch with 4*10/100M PoE port and 1*10/100M uplink RJ45 port. Port1-4 can support IEEE 802.3af/at PoE standard. Adjust
function switch, port 1-4 can support VLAN isolation, 10M/250m transmission, AI self-healing, power indication, and power supply priority, External 110W power supply. |
|
PACKING LIST
|
CONTENT
|
|
QTY
|
UNIT
|
|
|
|
5-port 10/100M AI PoE switch
|
|
1
|
SET
|
|
|
|
AC Power Cable+ Power Adapter
|
|
1
|
PC
|
|
|
|
Mounting Kits(Hanging Ear)
|
|
1
|
SET
|
|
|
|
User Guide
|
|
1
|
PC
|
|
|
|
Warranty Card
|
|
1
|
PC
|
|
