- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
SONGO
-
Body material:
-
Cast Iron
-
Seal Material:
-
NBR EPDM Fluororubber
-
Medium:
-
Water Oil Gas
-
Working pressure:
-
0.5-8bar
-
Working Temperature:
-
5-60 Degree
-
Voltage:
-
AC36V/AC110V/AC220V/AC380V/DC12V/DC24V
-
Connection:
-
Flange
-
Operation:
-
Normally closed
-
Product name:
-
4inch DN100 Flange Cast Iron Water Solenoid valve
Quick Details
-
Port Size:
-
DN100
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
DF-50F
-
Brand Name:
-
SONGO
-
Body material:
-
Cast Iron
-
Seal Material:
-
NBR EPDM Fluororubber
-
Medium:
-
Water Oil Gas
-
Working pressure:
-
0.5-8bar
-
Working Temperature:
-
5-60 Degree
-
Voltage:
-
AC36V/AC110V/AC220V/AC380V/DC12V/DC24V
-
Connection:
-
Flange
-
Operation:
-
Normally closed
-
Product name:
-
4inch DN100 Flange Cast Iron Water Solenoid valve

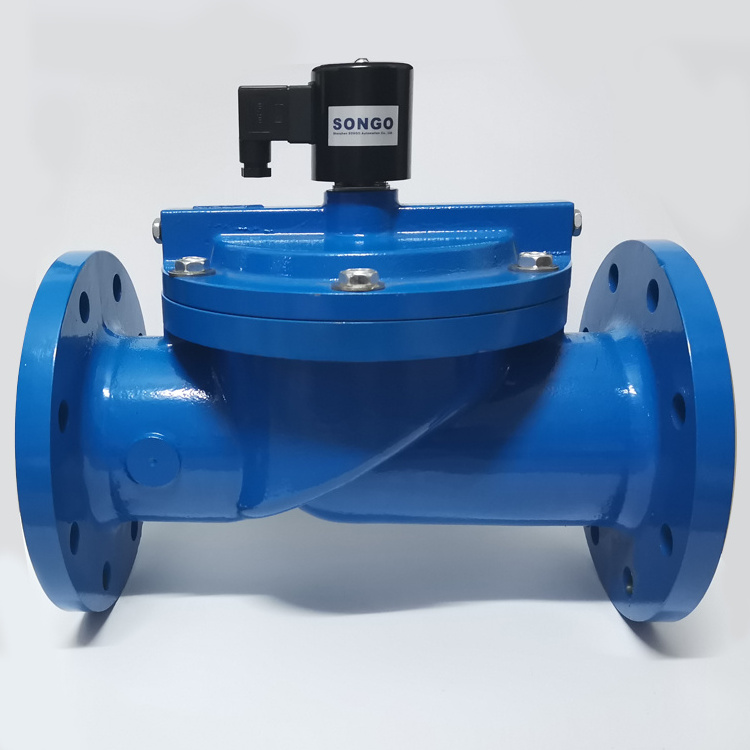

12V 24V 110V 220V 240V 4inch DN100 Flange Normally Closed Open Diaphragm Magnetic Control Cast Iron Water Solenoid valve
| DF series two position two way normal close solenoid valve,power off is open,power on is closed,small size,low power,high pressure,products for the series production | |
| Body material | Casting iron |
| Seal material | NBR,Fluororubber,EPDM |
| Media | Gas,Water |
| Working pressure | 0.5-8bar |
| Media temperature | 5-60℃ |
| Voltage | AC36V,AC110V,AC220V,AC380V,DC12V,DC24V |
| Install way | According to the direction of the arrow on the valve,horizontal installation,coil up |
| Model No. | A | B | C | D | E | F | G | H | N |
| DF-40F | 155 | 15 | 2 | 148 | 88 | 18 | 109 | 215 | 4 |
| DF50F | 203 | 17 | 3 | 163 | 103 | 18 | 125 | 240 | 4 |
| DF-65F | 250 | 20 | 3 | 182 | 113 | 18 | 145 | 265 | 4 |
| DF-80F | 270 | 20 | 3 | 198 | 132 | 18 | 160 | 280 | 4 |
| DF-100F | 350 | 22 | 3 | 219 | 156 | 18 | 179 | 300 | 8 |
