Quick Details
-
Screw Speed (rpm):
-
110 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
LIANSHUN
-
Voltage:
-
380V 50HZ 3Phase(Customized)
-
Dimension(L*W*H):
-
15mx2.5mx2.2m
-
Power (kW):
-
30
-
Weight:
-
7600 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
PP PE PVC single wall corrugated pipe tube making machine
-
Raw material:
-
PP PE PVC
-
Product:
-
single wall corrugated pipe
-
Screw and barrel material:
-
38CrMoAlA
-
Motor:
-
SIEMENS Brand
-
Inverter:
-
ABB Frequency Controller
-
Pipe diameter scope:
-
9-110mm
-
Experience:
-
more than 10 years of experience in corrugated pipe machines
-
Material:
-
Stainless Steel 304
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
30:1
-
Screw diameter (mm):
-
65 mm
-
Screw Speed (rpm):
-
110 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
LIANSHUN
-
Voltage:
-
380V 50HZ 3Phase(Customized)
-
Dimension(L*W*H):
-
15mx2.5mx2.2m
-
Power (kW):
-
30
-
Weight:
-
7600 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
PP PE PVC single wall corrugated pipe tube making machine
-
Raw material:
-
PP PE PVC
-
Product:
-
single wall corrugated pipe
-
Screw and barrel material:
-
38CrMoAlA
-
Motor:
-
SIEMENS Brand
-
Inverter:
-
ABB Frequency Controller
-
Pipe diameter scope:
-
9-110mm
-
Experience:
-
more than 10 years of experience in corrugated pipe machines
-
Material:
-
Stainless Steel 304

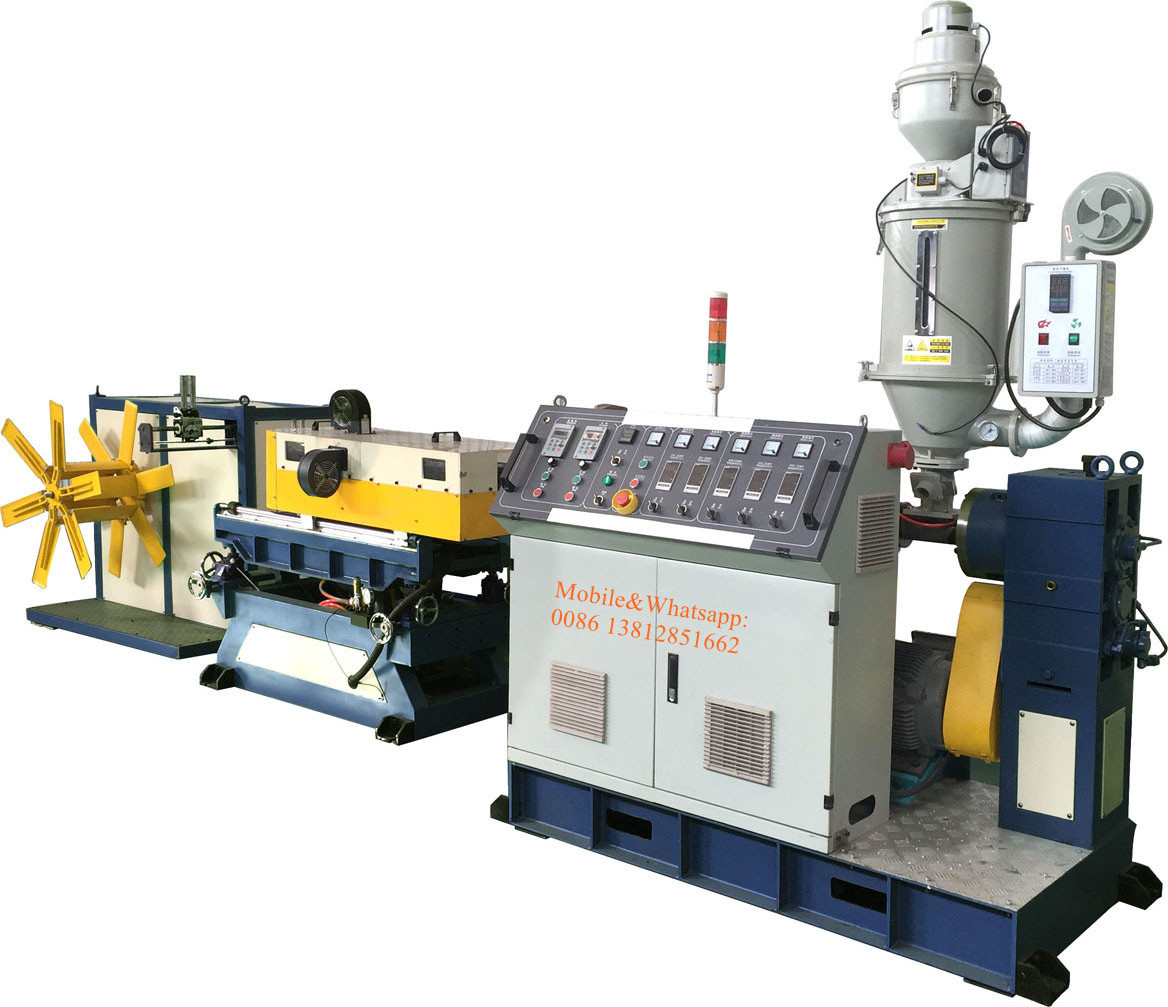

PP PE PVC Pipe Making Machine Price / Plastic Flexible Pipe Extrusion Production Line/ Electric Conduit Pipe Machine
Description of plastic flexible pipe extrusion production line:
1. Plastic flexible pipe extrusion production line used PP, PE, PVC as raw material to produce plastic single-wall corrugated pipe used as electric conduit pipe.
2. Through the corresponding mould and setting machine, the products can be smooth evenly both internal and external.
3. Application of products: Cable threading pipe, washing machine drain pipe, vacuum tubes, ventilation drain pipe, etc.
Configuration List of plastic flexilbe pipe extrusion production line : :
| Automatic vacuum feeder | 1 set |
| Dryer | 1 set |
| Single-screw extruder | 1 set |
| Corresponding single-wall corrugated pipe extruding die | 1 set |
| Single-wall corrugated pipe molding machine | 1 set |
| Coiling machine | 1 set |
| Meter counter | 1 set |
Images of Machine of plastic flexible pipe extrusion production line : :
1. Single Screw Extruder:
Mainly use SJ-45 extruder or SJ-65 extruder, which can keep a stabile output and save the energy. The SJ-45 extruder for making 9-32mm diameter corrugated tube, and SJ-65 extruder for making 32-110mm. The L/D can be different when you need different output. The max stable output can reach 120kg/h.
2. Corrugated pipe forming machine:
This mahcine is used to shape the corrugated pipe. The mould can be discharged and changed. Corrugated tube diameter is decided by the mould, so if you want to process different diameter, you should change differnet mould. Our factory can also provide you with the mould.
3. Coiling Machine:
This machine is used to reel in and packing of corrugated pipe. With electric control system it can control reeling speed accurately. And it can also control the size of reeling. It is very convenient for discharging. This machine also is widely used in other soft pipe making lines.
4. Finished corrugated pipes :
For more informations about plastic flexible pipe extrusion production line, please feel free to contact us, thanks!
Contact Mobile & Whatsapp: 0086-13812851662 (Mr. James).
Welcome you to visit our factory anytime.
