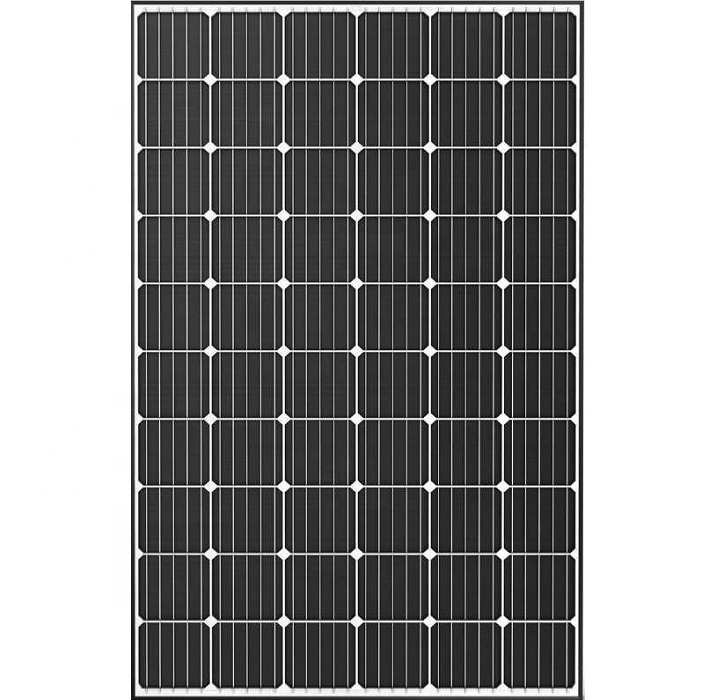

Quick Details
-
Brand Name:
-
OLLIN
-
Model Number:
-
OL-300-60M
-
Place of Origin:
-
Zhejiang, China
-
Panel Dimensions:
-
1640*992*35
-
certification:
-
CE ISO
-
Application:
-
Roofing System
-
Frame:
-
Anodized Aluminium Alloy
-
Connector:
-
Multi contract 4 Compatible Connector
-
Solar cell:
-
Mono 156*156 Cell
-
Junction Box:
-
IP65 Waterproof
-
OEM Order:
-
Accptable
-
Frame Color:
-
Silvery or Black
-
Back Sheet:
-
TPE Protection
-
Weight:
-
18.5kg
-
Certificate:
-
CE
Quick Details
-
Type:
-
PERC
-
Panel Efficiency:
-
300W
-
Warranty:
-
2 year
-
Brand Name:
-
OLLIN
-
Model Number:
-
OL-300-60M
-
Place of Origin:
-
Zhejiang, China
-
Panel Dimensions:
-
1640*992*35
-
certification:
-
CE ISO
-
Application:
-
Roofing System
-
Frame:
-
Anodized Aluminium Alloy
-
Connector:
-
Multi contract 4 Compatible Connector
-
Solar cell:
-
Mono 156*156 Cell
-
Junction Box:
-
IP65 Waterproof
-
OEM Order:
-
Accptable
-
Frame Color:
-
Silvery or Black
-
Back Sheet:
-
TPE Protection
-
Weight:
-
18.5kg
-
Certificate:
-
CE
Mechanical Characteristics
|
Solar Cells |
Monocrystalline 156 x 156mm (6 inches) |
|
|
|
|
|
|
Number of Cells |
60 Cells, 6 x 1 0 matrix |
|
|
|
|
|
|
Dimensions |
1, 64 0 x 990 x 40 mm |
|
|
|
|
|
|
Weight |
18 kg |
|
|
|
|
|
|
Front Glass |
High-Transmittance Low Iron Tempered Glass |
|
|
|
|
|
|
Frame |
Anodized Aluminum Frame (Silver / Black) |
|
|
|
|
|
|
Output Cables |
PV Wire (PV1-F), 12AWG (4mm 2 ), Cable Length : 1,000mm |
|
|
|
|
|
|
Connectors |
MC4 Connectable |
|
|
|
|
|
Electrical Characteristics
| STC (Irradiance 1,000W/m2, module temperature 25℃, AM=1.5) | OL300M-10 | OL280M-10 | OL260M-10 | OL250M-10 |
| Rated Power (Pmax) | 300W | 280W | 260W | 250W |
| Voltage at Pmax (Vmp) | 31.1V | 30.6V | 30.1V | 30.4V |
| Current at Pmax (Imp) | 9.67A | 9.15A | 8.66A | 8.32A |
| Warranted Minimum Pmax | 300W | 280W | 260W | 250W |
| Short-Circuit Current (Isc) | 10.45A | 9.84A | 9.34A | 9.17A |
| Open-Circuit Voltage (Voc) | 37.5V | 36.7V | 35.9V | 35.6V |
| Module Efficiency | 24.45% | 23.75% | 21.06% | 18.37% |
| Operating Module Temperature | -40℃ to + 85℃ | |||
| Maximum System Voltage | 1,000V(IEC) / 1,000V(UL) | |||
| Maximum Series Fuse Rating | 15A | |||
| Maximum Reverse Current | 20.25A | |||
| Power Tolerance | 0 ~ +5 W | |||
