98mm 120mm Coffee Grinder Flat Wheel Burr Machine Adjustable Grinding Powder Size Electric Coffee Grinder
98mm 120mm Coffee Grinder Flat Wheel Burr Machine Adjustable Grinding Powder Size Electric Coffee Grinder
98mm 120mm Coffee Grinder Flat Wheel Burr Machine Adjustable Grinding Powder Size Electric Coffee Grinder
98mm 120mm Coffee Grinder Flat Wheel Burr Machine Adjustable Grinding Powder Size Electric Coffee Grinder
98mm 120mm Coffee Grinder Flat Wheel Burr Machine Adjustable Grinding Powder Size Electric Coffee Grinder
98mm 120mm Coffee Grinder Flat Wheel Burr Machine Adjustable Grinding Powder Size Electric Coffee Grinder
98mm 120mm Coffee Grinder Flat Wheel Burr Machine Adjustable Grinding Powder Size Electric Coffee Grinder
98mm 120mm Coffee Grinder Flat Wheel Burr Machine Adjustable Grinding Powder Size Electric Coffee Grinder

98mm 120mm Coffee Grinder Flat Wheel Burr Machine Adjustable Grinding Powder Size Electric Coffee Grinder

FOB Reference Price: Get Latest Price
≥10 Pieces
US $2700
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Function:
Electronic Touch Control
Power (W):
1000
Voltage (V):
220
Place of Origin:
China
Brand Name:
FM GRINDER
Model Number:
FM Grinder 98 flat & FM Grinder 120 flat
Power source:
Electric
Usage:
Grinding Coffee Bean
Brand:
FM GRINDER
Cutting materials:
Cloth Fabric Garment Wool Textile Silk
Product name:
Tostadores de cafe comerciales Tostadoras de cafe

Quick Details

Warranty:
1 Year
Application:
Outdoor, Hotel, Garage, Commercial, Household
Type:
Burr Grinders (Flat Wheel)
Function:
Electronic Touch Control
Power (W):
1000
Voltage (V):
220
Place of Origin:
China
Brand Name:
FM GRINDER
Model Number:
FM Grinder 98 flat & FM Grinder 120 flat
Power source:
Electric
Usage:
Grinding Coffee Bean
Brand:
FM GRINDER
Cutting materials:
Cloth Fabric Garment Wool Textile Silk
Product name:
Tostadores de cafe comerciales Tostadoras de cafe
Video Description

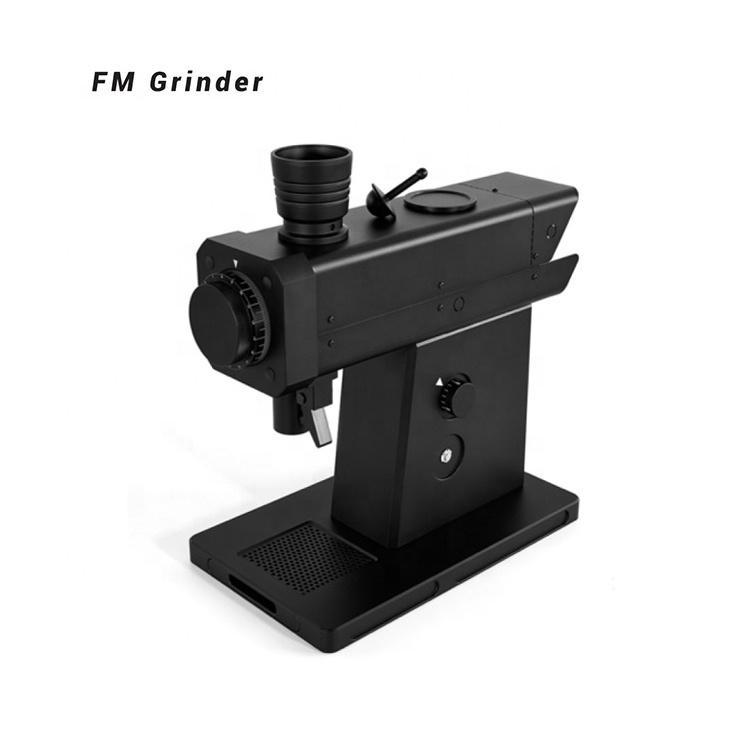

- FM Grinder adapts independent appearance design, integrated CNC high precision machining, Multi-interval speed adjustment, with Mitsubishi servo motor, more precision and high performance, long service life.
- Both 98mm and 120mm SSP cutters are available. Color: Black and white. You may choose the size and color you like.
Performance Feature
Product Paramenters
FM GRINDER ELECTRIC COFFEE BEAN GRINDER
Model
FM Grinder 98 flat
FM Grinder 120 flat
Brand
FM Grinder
Voltage
AC200V-240V 50/60Hz

Input current / Output current
5A / 6A
Motor brand / Motor model
Mitsubishi Electric / HG-SN1-02J-S100
Servo drive brand / Servo drive model
Mitsubishi Electric / MR-JE-100A
Motor power
1000 W

Adjustable speed
500-2000(r/min)
Rated load torque / maximum torque
4.77(N.m) / 14.3(N.m)
Brade brand
SSP
Capacity
1kg/min （Speed sets 2000 RPM）
Noise factor
70 db
Machine weight
31 kgs
36 kgs
Machine size
514 x 260 x 501.8 mm
525.3 x 260 x 524 mm
Feature
1. New design industrial and home use coffee grinder, it is made with high quality blade, which is more durable and efficient.
2. High quality abrasive disc, both 98mm and 120mm SSP cutters are available, durable in use.
3. Precision regulator, it can make very small adjustments.
4. Super Power,1000W Mitsubishi Servo Motor.
5. Easy to clean the powder outlet and the bottom grille design can ensure the cleanliness of the entire coffee bar.
6. Suitable for long time continuous grinding.
7. The humanization design concept, easy to start the grinder, just press one key to fulfill the job.
High quality abrasive disc, both 98mm and 120mm SSP cutters are available, durable in use

With vertical knife structure, small single-cup bean bin, suitable for commercial and domestic single-part grinding and SOE scenarios.


This Grinder can grind different size of coffee powder by adjusting the scale from 0 to 17, 0 means finest, 17 is coarsest.


Keep tolerances to a very small range by using fully CNC-machined grinding components (Overall tolerance of less than 10um).

Support 500-2000 rpm adjustment, a single grinding time of about 2-3 seconds.


The whole machine parts are basically CNC machining at one time, and the body is made of 7075 aluminum alloy with the grinding
room, 6061 aluminum alloy with other parts, it is much durable and stronger.
Keep tolerances to a very small range by using fully CNC-machined grinding components (Overall tolerance of less than 10um).

Improve the powder channel and elastic powder device, adjust the connection position between the powder outlet and the powder
pipe, and automatically shake off the powder after grinding, so as to further improve the residual powder situation, avoid the
problem that the machine is easy to accumulate and stick for a long time, and reduce the grinding loss.

The amount of residual powder after grinding is less, good performance.


In order to realize the speed adjustment and stability in grinding, the machine adopts Mitsubishi Motor servo motor ( HG-SN102J-S100 ) and servo driven ( MR-JE-100A ), which has more stable performance and more durable.

Production Application
Commercial automatic electric grinder FM Grinder is suitable for all kinds of commercial places, such as coffee shops, hotels, restaurants, offices and so on.

With the small size, high power and easy operation, FM Grinder is also suitable for home use, especially for the families with high requirements for grinding coffee products.

FM Grinder can meet the needs of different venues, so that customers can enjoy a high-quality coffee experience in a comfortable environment.
Whole Service

Technical Service

- Free sample testing and video for your reference.
- Technical support: Professional engineers’ team to help you design a whole-set product line to get highest profit with lowest cost and offer you technical support any time.

After Sales Service

- Every customer can get one piece of English operation manual, a total working video for machines ,details on every button function ,normal notice when operation.
- One-year warranty, whole life technical support.
- 24 hours technical support, we will do our best to help our customers solve problems.
- We offer not only the products, but also the solutions. Plenty of cooperated professional supplier for mold or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
FAQ
Q: Are you a factory or trading company?
A: We are a factory and a trading company.

Q: Where is your factory located in?
A: Our factory is located in Kunshan city, Jiangsu province, and our detailed address is: No.1008, Xiangshi Road, Bacheng Town,Kunshan City, JiangSu Province, China.

Q: what are your main products?
A: Our main products are high quality automatic cutting machines, slitting machines, laminating machines and sales relative materials.

Q: Which industries can use your machines ?
A: All industries need to cut (include full cutting and kiss-cutting), slit, laminate, die cut raw materials can use our machines.

Q: How to control the quality in your factory?
A: Quality is priority. We control the quality of our products strictly, from the incoming materials to the finished products.

Q: If there are no machines available from your list, could we customize non-standard machines from you?
A: Yes, we have our own professional design engineers, and can customize products according to your requirement. 30% of our current customer need customization on their machines.

Q: How about package?
A: Export standard packing: plywood wooden carton. It's easy for forklift to upload and download. Safety transportation.

Q: What's the trade term?
A: EXW, FOB, CFR, CIF or DAP & DDP are all workable based on customer’s requirement.

Q: What is the terms of payment you accept?
A: We can accept the T/T payment, we need 50% of total amount as deposit and 50% balance should be paid before delivery, we can also accept the L/C, PayPal, Private account, Cash and others.

Q: What about the warranty?
A: All of our machines have 1-year warranty.
In warranty period, if spare parts broken, we exchange them free. after the warranty period, we supply the machine’s full life service, buyer should pay for the material cost of exchanging spare parts and repairing.
