Quick Details
-
Application:
-
Hotel, Villa, Apartment, Office Building, Hospital, Injection
-
Design Style:
-
Minimalist
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
RICA
-
Model Number:
-
RICA108
-
Type:
-
packers,Other Waterproofing Materials
-
Material:
-
Aluminum, Rubber
-
Shape:
-
packers
-
Core Material:
-
aluminium
-
Format:
-
packers
-
Product name:
-
concrete injection packer
-
Size:
-
10*80mm
-
Diameter:
-
10mm
-
Texture:
-
Aluminum
-
Package:
-
Carton Case
-
Usage:
-
Concrete industry
-
Weight:
-
100g
-
Seal type:
-
O-ring Sealed
-
Origin:
-
China
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Online technical support, Onsite Training, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, total solution for projects, Cross Categories Consolidation, Others
-
Application:
-
Hotel, Villa, Apartment, Office Building, Hospital, Injection
-
Design Style:
-
Minimalist
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
RICA
-
Model Number:
-
RICA108
-
Type:
-
packers,Other Waterproofing Materials
-
Material:
-
Aluminum, Rubber
-
Shape:
-
packers
-
Core Material:
-
aluminium
-
Format:
-
packers
-
Product name:
-
concrete injection packer
-
Size:
-
10*80mm
-
Diameter:
-
10mm
-
Texture:
-
Aluminum
-
Package:
-
Carton Case
-
Usage:
-
Concrete industry
-
Weight:
-
100g
-
Seal type:
-
O-ring Sealed
-
Origin:
-
China
10*80mm mini packer used in cracks leakage stop
Packer,also named grout nipple, widely used in the waterproofing work,especially in the concrete structure
withPolyurethane grout and epoxy resin grout. With high pressure chemical grout injection technology,the pac
ker is the special tools in this sector.

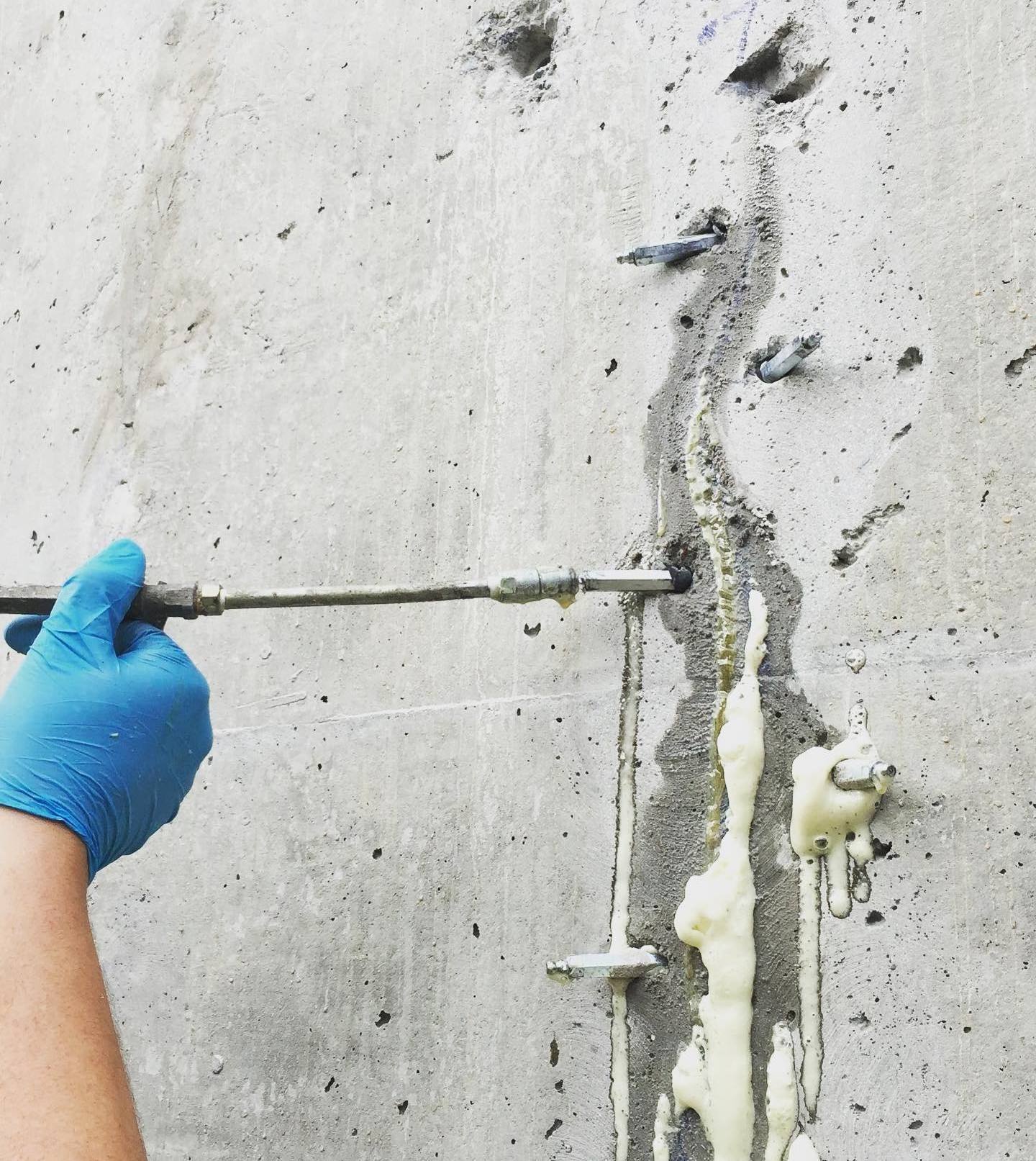

Principle under the continuous pressure from injection pump to inject the grout into the concrete cracks and
holes,squeeze out the water in cracks. Make the grout foam in the holes and cracks to complete the
waterproof work.
The important part for high pressure injection pump--high pressure Packer.Using the principle of ring crush
fastening to stop the leaking water. There is a one-way valve in the head to stop the grout flow back in the
high pressure. The expansion part is made of rubber ring, whose diameter is 10mm,to put into the hole
diamet er 11mm.
Fasten the pressure-ring bolt and press the rubber part to make the grout liquid inject into the holes.
The one-way valve could be opened above pressure 0.4KN, therefore, the injecting pressure should be
higher than 0.4KN.
For the dense type concrete structure,usually choose the packer 70*80mm; For the loosely concrete structure
usually choose the packer 100-150mm;
