Quick Details
-
Table Size:
-
0.91*2.43 m
-
Overall Dimensions:
-
650*650*1100mm
-
Weight:
-
12220 kg
-
Product name:
-
boom lift articulated
-
Model:
-
S-60
-
Lift capacity (kg):
-
230
-
Max.platform occupancy:
-
2
-
Turnable rotation (°):
-
360 continuously
-
Tire:
-
38.5*14-20
-
Auxiliary power:
-
12 V DC
-
Hydraulic tank (L):
-
120
-
Fuel tank (L):
-
130
-
Weight 4*2 drive (kg):
-
12220
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
China
-
Power:
-
2.0KW
-
Table Size:
-
0.91*2.43 m
-
Overall Dimensions:
-
650*650*1100mm
-
Weight:
-
12220 kg
-
Product name:
-
boom lift articulated
-
Model:
-
S-60
-
Lift capacity (kg):
-
230
-
Max.platform occupancy:
-
2
-
Turnable rotation (°):
-
360 continuously
-
Tire:
-
38.5*14-20
-
Auxiliary power:
-
12 V DC
-
Hydraulic tank (L):
-
120
-
Fuel tank (L):
-
130
-
Weight 4*2 drive (kg):
-
12220

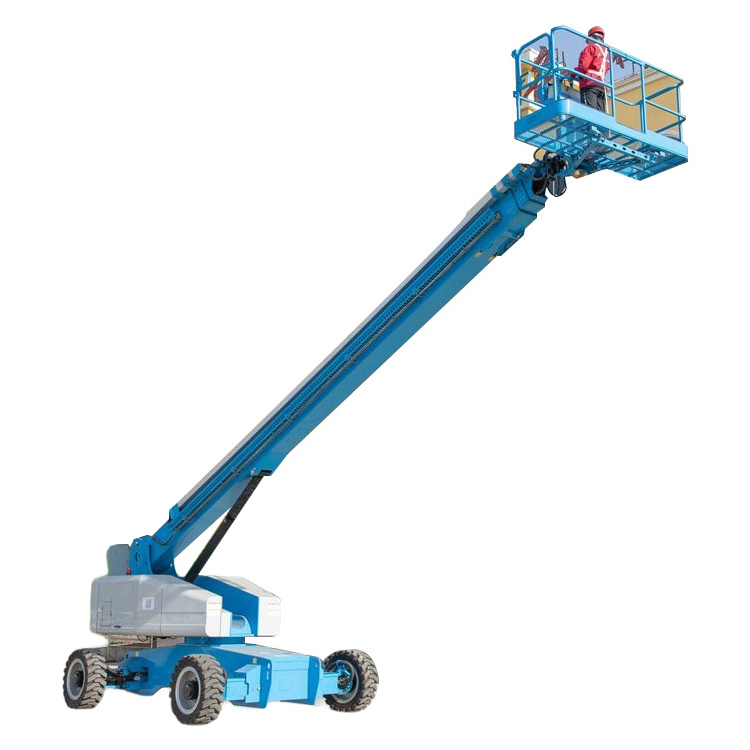

Boom Material Scissor Lift Rental Tow Behind Sky Trailer Man Lift Aerial Working Platform Outdoors Towable Curved Arm Lift
It is a product that can be used for mobile aerial work, such as aerial work, equipment installation, maintenance, etc. in various industries. This product can cross certain obstacles or carry out multi-point operation in one lifting. Features & Benefits:
| Product parameters | |
| Lift capacity (kg) | 230 |
| Max.platform occupancy | 2 |
| Working height (m) | 20.3 |
| Platform height (m) | 18.3 |
| Max.horizontal extension (m) | 15.09 |
| Platform size (L*W) (m) | 0.91*2.43 |
| Overall height (m) | 2.67 |
| Overall length (m) | 8.45 |
| Overall width (m) | 2.43 |
| Wheelbase (m) | 2.46 |
| Min.Ground Clearance (m) | 0.3 |
| Turnable rotation (°) | 360 continuously |
| Platform rotation (°) | 160 |
| Drive speed (platform lowered) (km/h) | 6.8 |
| Drive speed (platform elevated) (km/h) | 0.8 |
| Min.turning radius-inside (m) | 2.4 |
| Min.turning radius-outside (m) | 5.13 |
| Gradeability 2WD (%) | 45 |
| Gradeability 4WD (%) | 45 |
| Tire | 38.5*14-20 |
| Engine | Cummins/perkins |
| Auxiliary power | 12 V DC |
| Hydraulic tank (L) | 120 |
| Fuel tank (L) | 130 |
| Weight 2*2 drive (kg) | 12140 |
| Weight 4*2 drive (kg) | 12220 |
If you would like to learn more about product details, please send inquiry
