Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AOBO
-
Dimension(L*W*H):
-
24*24*12''
-
Weight:
-
1 KG
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
industrial pocket air filter
-
packing:
-
roll
-
Color:
-
White Green Pink Yellow
-
Material:
-
synthetic fiber
-
Product name:
-
Pocket filter media
-
workshop quantity:
-
seven
-
laboratory:
-
two
-
Roll size:
-
customized
-
After Warranty Service:
-
Online support
Quick Details
-
Core Components:
-
filter cloth
-
Efficiency:
-
60%-95%
-
Porosity:
-
1um-0.3um
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AOBO
-
Dimension(L*W*H):
-
24*24*12''
-
Weight:
-
1 KG
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
industrial pocket air filter
-
packing:
-
roll
-
Color:
-
White Green Pink Yellow
-
Material:
-
synthetic fiber
-
Product name:
-
Pocket filter media
-
workshop quantity:
-
seven
-
laboratory:
-
two
-
Roll size:
-
customized
-
After Warranty Service:
-
Online support

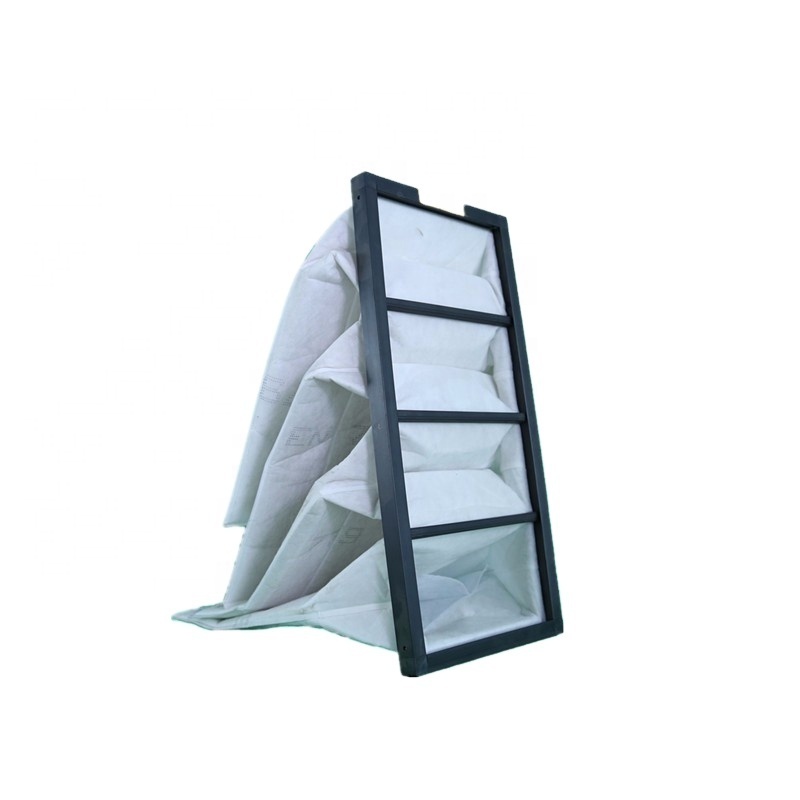

Product name:
Pocket filter
Synthetic bag filter
Efficiency : F5-F9
Features
Media: F5-F8 Synthetic fiber
Frame: Aluminum
Recommended final pressure drop: 450Pa
Temperature: 90ºC maximum in continuous service
Applications
front filtering in effective filter; secondary filtering in air condition system; clean air filtering for electronic, precision instrument, machinery, metallurgy,chemical industry, textile, pharmaceutical, food industry etc.
Advantages
Multilayer composite melt-blown materials
"V" shaped filter bag, filter material is utilized 100% totally
The integration design of the inside frame increase the overall structural strength and minimize the pressure drop
The metal edge of the inside frame rolled to be smoothly shape, make the maintenance operation more safely
|
Model |
Outside Dimensions (mm) |
Pockets |
Rated air flow (m3/h) |
Initial resistance (Pa) |
Efficiency (class) |
Filter media (Color) |
|
PF-AB |
495×295×500mm (20″×12″×20″) |
5 |
1000m3/h |
50Pa F5 55Pa F6 60Pa F7 65Pa F8 |
40-50% F5 60-70% F6 75-85% F7 85-95% F8 |
White F5 Green F6 Pink F7 Yellow F8 |
|
PF-AB |
495×495×500mm (20″×20″×20″) |
5 |
1800m3/h |
|||
|
PF-AB |
595×295×500mm (24″×12″×20″) |
6 |
1300m3/h |
|||
|
PF-AB |
595×495×500mm (24″×20″×20″) |
6 |
2200m3/h |
|||
|
PF-AB |
595×595×500mm (24″×24″×20″) |
8 |
2600m3/h |
|||
|
PF-AB |
495×295×600mm (20″×12″×24″) |
5 |
1200m3/h |
|||
|
PF-AB |
495×495×600mm (20″×20″×24″) |
5 |
2200m3/h |
|||
|
PF-AB |
595×295×600mm (24″×12″×24″) |
6 |
1600m3/h |
|||
|
PF-AB |
595×495×600mm (24″×20″×24″) |
6 |
2700m3/h |
