Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
2000 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
mingshi
-
Voltage:
-
220V 40HZ
-
Dimension(L*W*H):
-
2200*3200*1800
-
Power (kW):
-
9
-
Weight (KG):
-
1250
-
Product name:
-
CNC Wood Working Machine
-
Application:
-
Acrylic
-
Keywords:
-
Cnc Wood Router Engraver
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Spindle:
-
Air Cooling Spindle
-
Control system:
-
NcStudio Control System
-
Name:
-
1325 Woodworking CNC Router
-
Function:
-
Cutting Engraving Non-metal Materials
-
Showroom Location:
-
Russia
-
Transmission:
-
Taiwan TBI Ball Screw
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
2000 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
mingshi
-
Voltage:
-
220V 40HZ
-
Dimension(L*W*H):
-
2200*3200*1800
-
Power (kW):
-
9
-
Weight (KG):
-
1250
-
Product name:
-
CNC Wood Working Machine
-
Application:
-
Acrylic
-
Keywords:
-
Cnc Wood Router Engraver
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Spindle:
-
Air Cooling Spindle
-
Control system:
-
NcStudio Control System
-
Name:
-
1325 Woodworking CNC Router
-
Function:
-
Cutting Engraving Non-metal Materials
-
Showroom Location:
-
Russia
-
Transmission:
-
Taiwan TBI Ball Screw

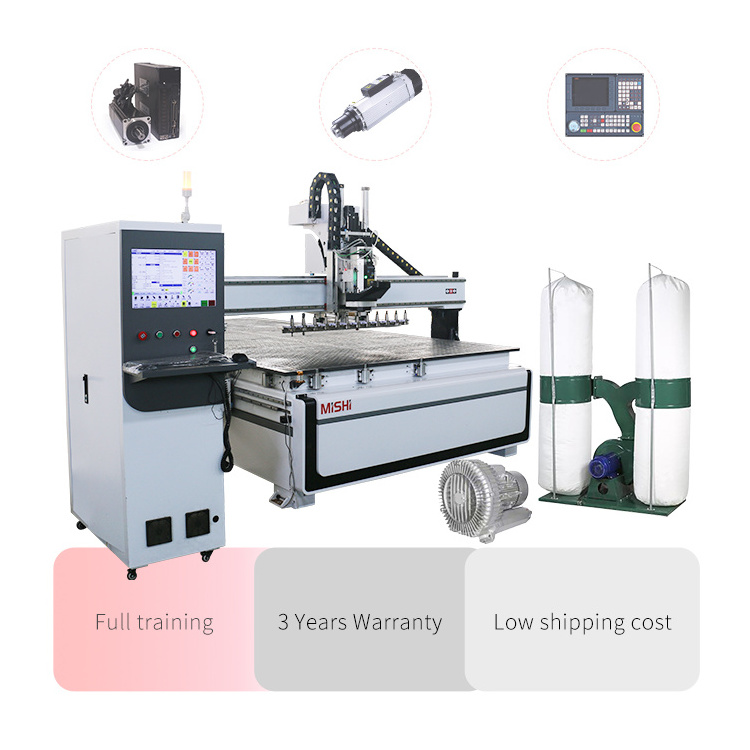

Product Show
Technical Parameters
|
ATC Cnc Router Furniture Making Machine
|
|
|
|
Machine Type
|
MSW1325/1530/2040/2140/2050 Inline ATC CNC Router
|
|
|
Operating Voltage
|
AC380V 50HZ 3HP Three Four-Wire
|
|
|
Work Plan
|
1300*2500*200/1500*3000*200/2000*4000*200MM
|
|
|
Maximum Empty Travel Speed
|
XY50000mm/min Z20000mm/min
|
|
|
Working Speed
|
15000-30000mm/min
|
|
|
Table Structure Size
|
Vacuum Table 1260*2480 6 Partitions 24 Holes
|
|
|
Bed Structure
|
Heavy-Duty Double-Layer Unloading Trapezoidal Bed
|
|
|
Transmission
|
Rail 25 Square Rail
|
|
|
|
Rack High Precision 1.5M Helical Gear
|
|
|
|
Reducer Japan SHIMPO
|
|
|
|
Screw Taiwan TBI
|
|
|
Tool Library
|
12-Tool Follow-up Tool Magazine ISO30
|
|
|
Frequency Converter
|
11kw inverter
|
|
|
Spindle
|
JST 9kw ATC Spindle
|
|
|
Spindle Speed
|
0-18000rmp
|
|
|
Motor
|
Leadshine Servo Motor
|
|
|
Run Command
|
G code
|
|
|
Operating System
|
Taiwan LNC control System
|
|
|
Total Weight
|
1.5T
|
|
|
Plate Fixing
|
7.5kw Water Circulation Vacuum Pump
|
|
|
Dust Removal
|
5.5kw High Power Dust Collector
|
|
|
* The size, color, configuration and design can all be customized according to customer's requirements
|
|
|
Details Images
Application
Woodworking
Processing of various furniture such as door, window, cabinet, craft wood door, screen, etc.
Advertisement Engraving and cutting various labels and number plate.
Art craft
Engraving characters of any languages and graphics on gifts and souvenirs. Balustrade, furniture legs stair railing, cylinder items, handrail, desk or chair legs, the human body, avatar, 3D cylinder mold, and a variety of rotational symmetry.
Applicable materials
Wood, aluminum board, plastic, density board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials and light metal materials.
Processing of various furniture such as door, window, cabinet, craft wood door, screen, etc.
Advertisement Engraving and cutting various labels and number plate.
Art craft
Engraving characters of any languages and graphics on gifts and souvenirs. Balustrade, furniture legs stair railing, cylinder items, handrail, desk or chair legs, the human body, avatar, 3D cylinder mold, and a variety of rotational symmetry.
Applicable materials
Wood, aluminum board, plastic, density board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials and light metal materials.
Products Description
After Sales Services
Shipping and Packing
Packaging Details
1. Outside package: Standard export plywood case for CNC Router for advertising.
2. Inner package: Stretch film and plastic film for humidity.
Port
Qingdao/Shanghai/Yiwu/Dalian/Guangzhou/Tianjin/Shenzhen
