Quick Details
-
Brand Name:
-
Sunbright
-
Model Number:
-
SUN-902A
-
Type:
-
MSK color Doppler ultrasound
-
Scanning depth:
-
400mm max
-
Electrical Power supply:
-
100-240V~50/60Hz 100VA
-
Zoom:
-
10*magnify
-
size:
-
308mm*310mm*66mm
-
Net Weight:
-
4 Kg
-
Display:
-
12 inch LED
-
Resolution:
-
1024*768
-
Probe ports:
-
2-probe active ports
-
Hard disc:
-
120G SSD
Quick Details
-
Warranty:
-
Lifetime
-
After-sale Service:
-
Return and Replacement
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Sunbright
-
Model Number:
-
SUN-902A
-
Type:
-
MSK color Doppler ultrasound
-
Scanning depth:
-
400mm max
-
Electrical Power supply:
-
100-240V~50/60Hz 100VA
-
Zoom:
-
10*magnify
-
size:
-
308mm*310mm*66mm
-
Net Weight:
-
4 Kg
-
Display:
-
12 inch LED
-
Resolution:
-
1024*768
-
Probe ports:
-
2-probe active ports
-
Hard disc:
-
120G SSD
Product Description

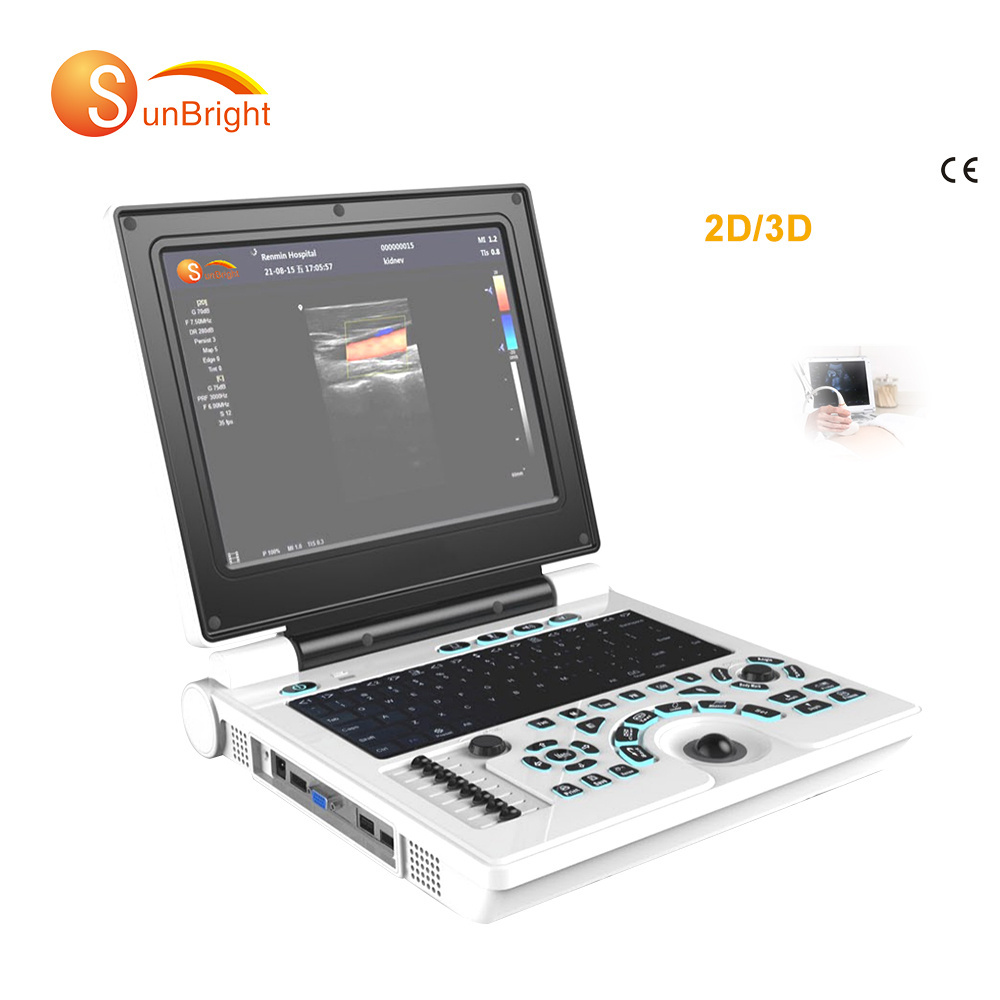

MSK color Doppler ultrasound with high frequency linear probe on promotion
FAST DESCRIPTION
B/ CFM/ PW triple synchronization
5 levels Image optimization
Digital beam- forming
Un View- speckle reduction
Tissue harmonic imaging
PW automatic envelope measurement
IMT ( Carotid intima- media thickness) automatic envelope measurement
Biopsy guide
Build- in editable report page
Specification
|
size
|
308mm*310mm*66mm
|
|
Net Weight
|
4 Kg
|
|
Display
|
12inch LED
|
|
Resolution
|
1024*768
|
|
Probe ports
|
2-probe active ports
|
|
Hard disc
|
120G SSD
|
Details Pictures
Imaging Modes
B、B&M、2B、4B, THI, PW, PDI , Color
Imaging parameters
Imaging processing： Persistence, Gamma, edge enhancement, compression curve, gray, 16 kinds of pseudo- color processing, focuses, canvas, Fov, contrast, brightness, Invert b/v, Mirror, Reverse
Blood flow imaging processing: power, samples, noise level, balance, flash reject, wall filter, C. Decision、 Tint
PW parameters: PW pseudo- color processing, spectrum reversal, envelope threshold, automatic envelope, volume
Standard configuration features
Gary scale: 256
Dynamic range： 80-280dB
Gain control： total gain， 8 –slice TGC
Scanning depth： 400mm max
Acoustic power： 3 levels adjustable， real-time display MI/TI
Zoom： 10*magnify
Cine-loop： 200-2000 frames max，auto/manually play back
Measurement
General measurement： Depth, Distance, Trace Length, Ratio (D), Area: Ellipse, Trace
Volume: 3-Distance, Ellipse, EDist
M mode: Distance, time, slope, Heart Rate Clinical measurement package: Abdomen, OB, Gynecology, Cardiac, Urology, Small Parts
Body mark
More than 64 body marks for versatile application With body position markers
Language supported
Chinese, English, Spanish, Russian, French, Portuguese, Germany
Standard configuration features
Peripheral ports: VGA, 2 USB ports, HDMI port, DICOM port, LINE OUT port
Electrical Power supply: 100-240V~50/60Hz 100VA
Li-lion battery 3.2Ah
Video & PC printer (Optional)
