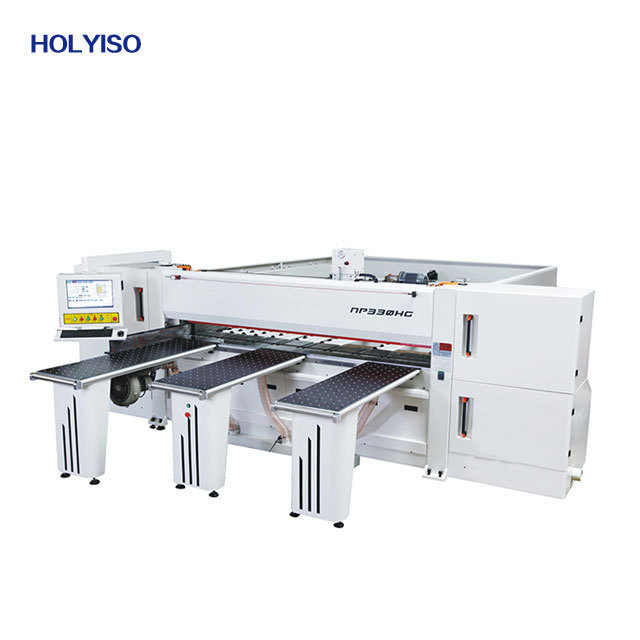

NP330HG Heavy Duty Computer Panel Saw Wood Cutting Machine

NP330HG Heavy Duty Computer Panel Saw Wood Cutting Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $25390

≥3 Sets

US $18660

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Usage:: Woodworking

Voltage:: 380V or your request

Dimension(L*W*H):: 5500x6100x2100mm

Application:: woodworking

Weight (KG):: 3500 KG

Applicable Industries:: woodworking

Name:: NP330HG Heavy Duty Computer Panel Saw Wood Cutting Machine

Max cutting length:: 3280mm

Max.cutting thickness:: 120mm

Scoring saw rotating speed:: 6900rpm

Saw carriage forward speed adjustable:: 0-120m/min

Saw carriage backward speed:: 0-150m/min

Main saw motor:: 22kw

Saw carriage driving motor:: 1.5kw

Automatic feeding motor:: 1.0kw(AC Servo motor)

Total power:: 26.7kw

Quick Details

Type:: Beam Saw

Place of Origin:: China

Brand Name:: HOLYISO

Usage:: Woodworking

Voltage:: 380V or your request

Dimension(L*W*H):: 5500x6100x2100mm

Application:: woodworking

Weight (KG):: 3500 KG

Applicable Industries:: woodworking

Name:: NP330HG Heavy Duty Computer Panel Saw Wood Cutting Machine

Max cutting length:: 3280mm

Max.cutting thickness:: 120mm

Scoring saw rotating speed:: 6900rpm

Saw carriage forward speed adjustable:: 0-120m/min

Saw carriage backward speed:: 0-150m/min

Main saw motor:: 22kw

Saw carriage driving motor:: 1.5kw

Automatic feeding motor:: 1.0kw(AC Servo motor)

Total power:: 26.7kw

Products Description

■ The maximum sawing thickness can reach 100mm, pneumatic quick assembly and disassembly of the main saw blade device.
■ Saw blade and pressure beam intelligently control the lifting height according to the sawing thickness.
■ Imported high-strength coordinated servo motor drive saw car.

■ Pneumatic compressed feeding roller is applied, the pressing force can be adjusted by stages which is favorable for smooth feeding of timbers with different thickness.
■ Spare parts are thick and solid to maintain high precision, high stability and reliability.
■ Completely sealed safety shield can avoid flying of saw dust and isolate noise efficiency and protect operators.
■ Mass production is several times more efficient than common machinery and saves time and power.

Application:

The machine is suitable for the following boards: MDF, block board, solid wood board, particleboard, polymer door plates, plywood, pvc board, etc. Straight line edging and trimming.

Model	NP280HG	NP330HG	NP380HG
Max. cutting length	2800mm	3300mm	3800mm
Max. cutting thickness	100mm	100mm	100mm
Main saw blade diameter	Φ380/400mm	Φ380/400mm	Φ380/400mm
Main saw shaft diameter	Φ60mm	Φ60mm	Φ60mm
Main saw rotating speed	4560rpm	4560rpm	4560rpm
Scoring saw blade diameter	Φ180mm	Φ180mm	Φ180mm
Scoring saw blade inner diameter	Φ30mm	Φ30mm	Φ30mm
Scoring saw rotating speed	6700rpm	6700rpm	6700rpm
Saw carriage forward speed adjustable	0-90m/min	0-90m/min	0-90m/min
Saw carriage backward speed	0-90m/min	0-90m/min	0-90m/min
Main saw motor	16kw	16kw	16kw
Saw carriage driving motor	2.2kw	2.2kw	2.2kw
Automatic feeding motor	1.5kw (AC Servo motor)	1.5kw (AC Servo motor)	1.5kw (AC Servo motor)
Total power	25kw	25kw	25kw
Automatic feeding speed	80m/min	80m/min	80m/min
Air pressure	5-7kg/cm²	5-7kg/cm²	5-7kg/cm²
Working table height from ground level	960mm	960mm	960mm
Overall dimension	5200x6300x1900mm	5700x6800x1900mm	6200x6800x1900mm

Details Images

With the industrial computer and optimization software, with automatic feeding and automatic reciprocating cutting functions, the operation is simple.

The air floating bead worktable can prevent the board from scratching, and the operator can easily move the board to reduce labor intensity.

The electrical components of the machine are mainly selected from domestic and foreign advanced products,which are safe and stable.

The pneumatic feeding mechanical clamp, heavy duty design, has enough gripping force and pushing force to ensure the smooth moving of the board.

With two precision saw blades, double linear guides, independent lifting. Saw blades and beam intelligently control the lifting
height according to the cutting thickness.

Straight cutting length 2800mm.

Saw car precision rack drive.

Roller round plate (side leaning) durable.

High precision turbine reducer and gear transmission.

Efficient saw car.

Drive systern adopts servo control.

>>Contact us for more details<<

Effect Picture

■ The machine can be used for whole house customization, panel furniture, kitchen dining room, oddice cabinet table,etc.
