Quick Details
-
Usage:
-
Wood Sawing
-
Dimension(L*W*H):
-
3050*3150*900mm
-
Application:
-
Factory
-
Weight (KG):
-
900 KG
-
Marketing Type:
-
Hot Product 2024
-
Warranty of core components:
-
2 Year
-
Product name:
-
Precision Sliding Table Saw
-
Function:
-
Wood Sawing
-
Color:
-
Black and white
-
Service:
-
Aftersale
-
Advantage:
-
High Efficiency Low Cost
-
Package:
-
Wooden Box
Quick Details
-
Type:
-
Precision Sliding Table Saw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RY
-
Usage:
-
Wood Sawing
-
Dimension(L*W*H):
-
3050*3150*900mm
-
Application:
-
Factory
-
Weight (KG):
-
900 KG
-
Marketing Type:
-
Hot Product 2024
-
Warranty of core components:
-
2 Year
-
Product name:
-
Precision Sliding Table Saw
-
Function:
-
Wood Sawing
-
Color:
-
Black and white
-
Service:
-
Aftersale
-
Advantage:
-
High Efficiency Low Cost
-
Package:
-
Wooden Box

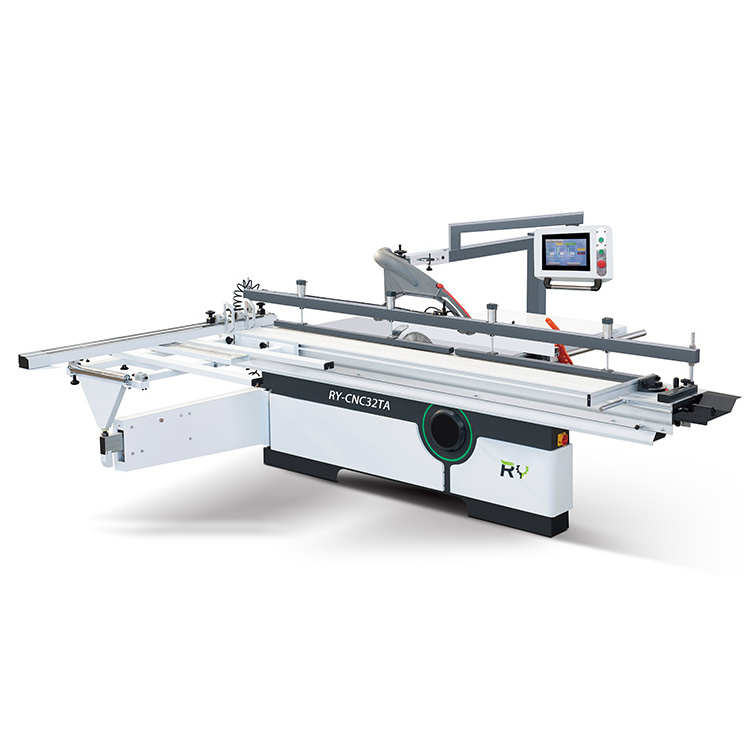

Precise. Powerful. Potential -- CNC-
32TA
automatic panel saw.
• Sawing motor: 5.5kw+1.1kw
• Maximum cutting length: 3200 mm
• Main saw blade Up&down electric control.
Relying on quality is always the best choice!
• Maximum cutting length: 3200 mm
• Main saw blade Up&down electric control.
Relying on quality is always the best choice!
If you want to select sliding table saw in your first own workshop, or you need a compact second machine, even when large quantities and maximum productivity are important in industrial production,
--- this RY-32TAZ is your reliable machine for all cases.
--- this RY-32TAZ is your reliable machine for all cases.
|
Technical Parameter
|
|
|
|
Dimension of sliding table
|
3200*410mm
|
|
|
Gross cut capacity
|
1250mm
|
|
|
Saw blade diameter
|
300/350/400mm)
|
|
|
Height of cut(300/400mm)
|
75/120mm
|
|
|
Height of cut with saw blade 300mm at 45°
|
60mm
|
|
|
Tilting saw blade
|
0-45°
|
|
|
Main motor
|
5.5kw
|
|
|
Scoring motor
|
1.1kw
|
|
|
Speed of scoring saw blade
|
7000-8000rpm
|
|
|
Scoring saw blade diameter
|
120mm
|
|
|
Main spindle diameter
|
30mm
|
|
|
Scoring spindle diameter
|
20mm
|
|
|
Gross weight
|
950kg
|
|
|
Overall dimension
|
3150*3150*900mm
|
|
Rip fence fine micro adjustment, stable and precision.
The stop is easy to adjust and, thanks to the fine adjustment, can be adjusted very precisely by hand.
The stop is easy to adjust and, thanks to the fine adjustment, can be adjusted very precisely by hand.
PLC intelligent screen
Steel bar Altendorf type sliding table, 3200 mm length*410mm width, with inner lock, more rigidity and strength, smooth movement.
Aluminum extruded fence with large stopper, sliding table saw big ruler made of aluminum, ensure cutting precision,
enlarged baffle plate for strength saving, flexible pushing plate.
enlarged baffle plate for strength saving, flexible pushing plate.
Automatic power off saw blade cover added the working safety.
Sawing system: linear guide structure
Perfect inner structure, linear guide way to make sure the machine work precision, easy-operation.
Perfect inner structure, linear guide way to make sure the machine work precision, easy-operation.
As with our sliding table saw, we also place the highest demands on our service.
No matter what your concern is, our service team is at your side quickly, competently and reliably.
Hand on it!
No matter what your concern is, our service team is at your side quickly, competently and reliably.
Hand on it!
