Quick Details
-
Weight:
-
48 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Power supply:
-
110/220V, 50/60 Hz
-
Frequency:
-
20KHz
-
Cutting Blade Width:
-
100~350 Customizable
-
Cutting Blade Height:
-
60mm Customizable
-
Material:
-
Titanium alloy
-
Generator Type:
-
Digital automatic frequency tracking
-
Application:
-
ultrasonic food cutting
-
Type:
-
Ultrasonic Food Cutting
Quick Details
-
Marketing Type:
-
New Product 2023
-
Brand Name:
-
minderhightech
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
48 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Power supply:
-
110/220V, 50/60 Hz
-
Frequency:
-
20KHz
-
Cutting Blade Width:
-
100~350 Customizable
-
Cutting Blade Height:
-
60mm Customizable
-
Material:
-
Titanium alloy
-
Generator Type:
-
Digital automatic frequency tracking
-
Application:
-
ultrasonic food cutting
-
Type:
-
Ultrasonic Food Cutting

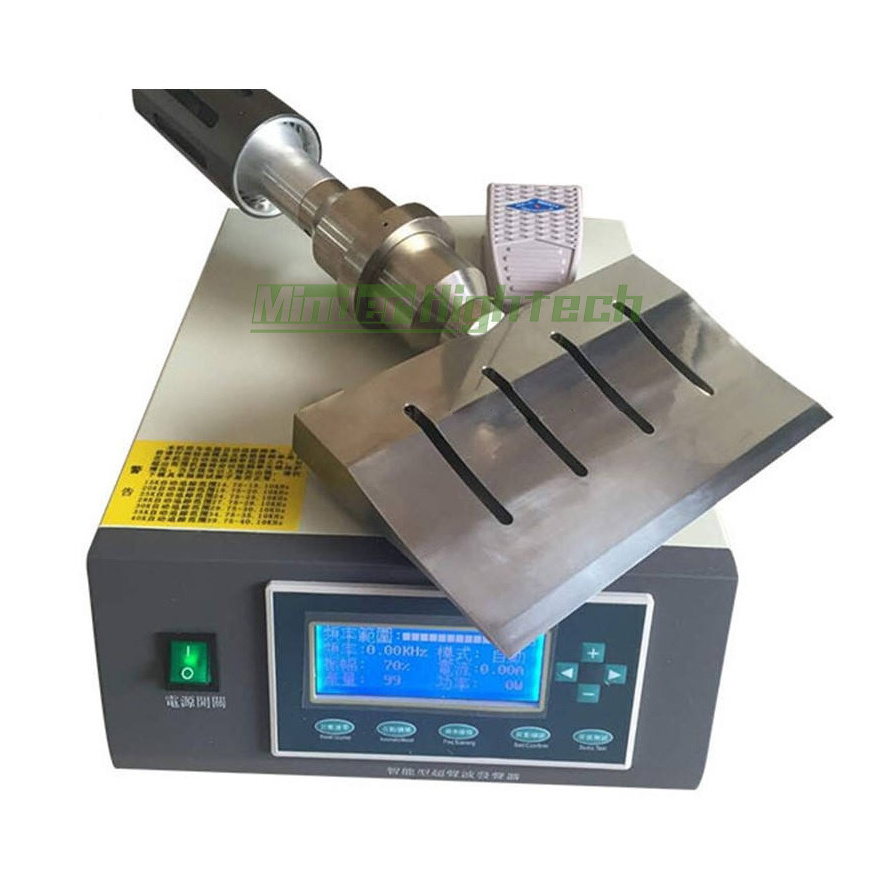

Ultrasonic Food Cutter for Frozen Meat Cake
Ultrasonic knife blade vibrating at an ultrasonic frequency can easily slice through the material to be cut quickly and precisely without leaving behind any residue in the form of particles.
Ultrasound has been used for years for cutting finished products. The swinging, cold cutting sonotrode reduces resistance in the cutting process and even cleans itself off residue when used with baked goods, energy bars, cheese, pizza, etc.
The result: smooth, reproducible cutting surfaces without deformation and thermal damage of the product.
Features
l Ultrasonic power :0-100% adjustable
l No sticking to the blade
l Compact equipment with a wide range of application
l Scalable machines adjustable according to your needs
l Wide product variety of slicing without any tool changing
l No diameter, weight or thickness limits
l Easy to wash down, and easy to maintain
l Max. cutting width with 1 blade: 350 mm
l Possibility to increase the cutting width with blades in series
l High speed slicing: 60 to 120 strokes / min. per blade
l Working blade frequency: 20, 30, 35 and 40 kHz
Advantage
l Low application of force during cutting
l Separation with no residue left behind(self-cleaning)
l Blade temperatures do not increase
l Reduction in machine downtimes as less maintenance and cleaning are required
l No need the sharp knife and large push, no damage of food.
l Small frictional resistance, no cutting material stick to the blade
l Fast cutting speed, save labor cost
l Safe operating, lower energy consumption, no noise
l Manual operating, also used for automatic machinery operating
Specification
|
Model |
MD-FQ2015 |
|
Power Supply |
110/220V 50/60HZ |
|
Power |
100~2000W |
|
Frequency |
20KHz |
|
Ultrasonic Knife Length |
100~350mm Customizable |
|
Ultrasonic Knife Height |
60mm Customizable |
|
Generator Type |
Digital automatic frequency tracking, generator can be adjusted the output amplitude from 5% to 95% |
|
Material |
Titanium alloy |
|
Dimension |
480*320*285(mm) |
|
Weight |
48kg |
|
Warranty |
1 year |
Application
1 Standard exported package: Internal anti-collision protection, external export wooden box packaging.
2 Shipping by Fedex, by air, by sea according to customers' requirements to find the most suitable way,
3 Responsible for the damage during the shipping process will change the damage part for you for free.
4 Supply with the suitable voltage input and source plug according to your country requirements.
1. Help customer analyze product project and provide solution.
2. Freely sample test.
3. Skilled jig design services.
4. Provide shipping/delivery information checking service.
5. One year guarantee, all life maintain promise.
6. 24 hours feedback speed by email of others.
