Quick Details
-
Mechanical:
-
Yes
-
Programmable:
-
Yes
-
Brand Name:
-
TGS
-
Specification item:
-

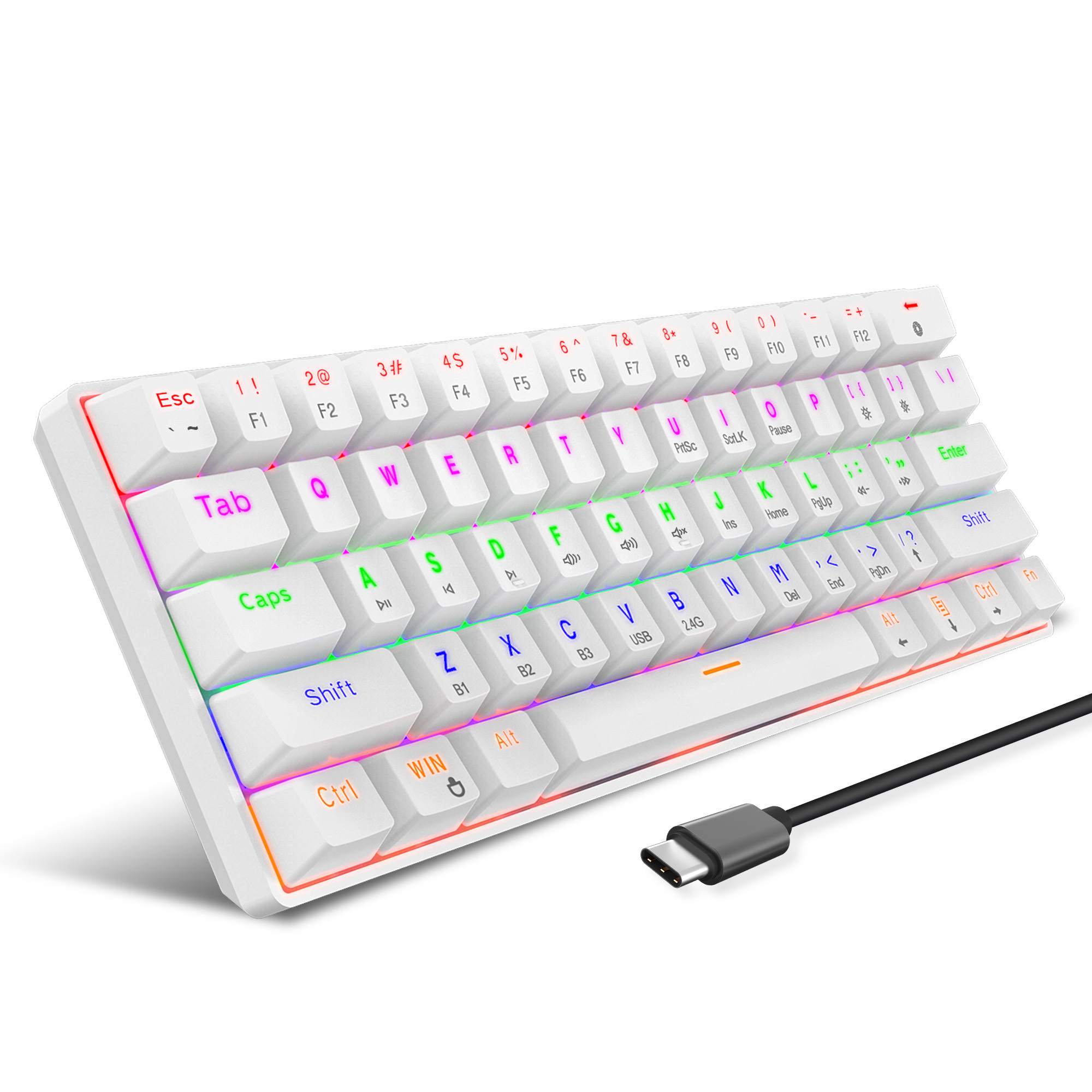

Three-mode mechanical keyboard
-
Connection method:
-
Blue tooth 5.0,2.4G,Type-C Wired
-
product type:
-
Mechanical keyboard
-
Built-in battery capacity:
-
2200mA
-
Number of keys:
-
61KEY
-
Button life:
-
50 million times or more
-
Operating Voltage:
-
5.0V±5% DC
-
Working current:
-
150mA (MAX)
-
Cable length:
-
1.75m
Quick Details
-
Interface Type:
-
usb
-
Keyboard Standard:
-
61 keys
-
Keyboard backlit:
-
LED
-
Mechanical:
-
Yes
-
Programmable:
-
Yes
-
Brand Name:
-
TGS
-
Specification item:
-
Three-mode mechanical keyboard
-
Connection method:
-
Blue tooth 5.0,2.4G,Type-C Wired
-
product type:
-
Mechanical keyboard
-
Built-in battery capacity:
-
2200mA
-
Number of keys:
-
61KEY
-
Button life:
-
50 million times or more
-
Operating Voltage:
-
5.0V±5% DC
-
Working current:
-
150mA (MAX)
-
Cable length:
-
1.75m
Product Description
|
Specification item
|
L800 Three-mode mechanical keyboard
|
|
Interface Type
|
TYPE-C
|
|
Connection method
|
Blue tooth 5.0、2.4G、Type-C Wired
|
|
Built-in battery capacity
|
2200mA
|
|
Number of keys
|
61KEY
|
|
Cable length
|
1.75m
|
Selling point：
1：Bond wire separation stable transmission ,TYPE-C interface
The keyboard adopts Type-C interface, and the design of the key line is separated, which is convenient to disassemble, and at the same time, it makes charging simple and easy to carry.
2：Mechanical blue shaft design
Crisp paragraph axis ，crisp sound.Strong sense of paragraph, rich sense of rhythm in typing, it will be more refreshing to type, suitable.Users who write more on computers or who enjoy percussion.
3：BT5.0. 2.4G, Wired,Support multiple devices
Three Modes Optional Connection,Support blue tooth 5,0/2.4g/cable mode, Multiple devices such as mobile phones, tablets,and desktop computers can be connected at the same time.And at the same time ,FN function key can be switched atwill button.
4: Ergonomic Ddsign
The arc of the keyboard is designed according to ergonomics, high and low key positions,long-term use is not easy to fatigue, and you will fight all day long.
5:2200mAh Long Battery Life
The body has a built-in large-capacity lithium battery. TYPE-C charging interface，which can be recharged repeatedly,which can be taken into account when wired.Recharge.Good battery life and long-lasting durability.
Product specifications:
Specification item:Three-mode mechanical keyboard
Product number:L800
Interface Type:TYPE-C
Connection method:Blue tooth 5.0、2.4G、Type-C Wired
product type:Mechanical keyboard
Built-in battery capacity: 2200mA
Number of keys:61KEY
Button life:50 million times or more
Operating Voltage:5.0V±5% DC
Working current:150mA (MAX)
Cable length:1.75m
Keycap material:ABS two-color injection
Product net weight: 529.5g
Product size: 29X10X3.8CM
Package gross weight: 674.7g
Color box packing size: 338*14.3*5cm
System compatibility:Compatible with IBM PC Win98SE/Me/2000/XP/VISTA/WIN 7/WIN10
Supported devices: Multiple devices such as mobile phones, tablets, and desktop computers can be connected at the same time
Packing list:
1 x 61keys 3-modes mechanical keyboard
1 x User English Manual
1x Colorful package
Three-mode connection instructions:
Blue tooth link:
Long press FN+Z=BT1 to connect to the first device, long press FN+Z button for 3 seconds, the bluelight of Z button flashes quickly, Blue tooth is in pairing state, and the paired one, tap FN+Z again toreturn Connect the device.
Long press FN+X=BT2 to connect to the second device, press and hold the FN+X button for 3 seconds,the blue light flashes quickly, the Blue tooth is in the pairing state, and the paired one, tap FN+X again toreturn Connect the device.
Long press FN+C=BT3 to connect to the third device, long press FN+C for 3 seconds, the blue lightflashes quickly, the Blue tooth is in the pairing state, and the paired is already paired, tap FN+C again toreturn Connect the device.
Note:
When the keyboard is in the current Blue tooth state, the switch is also a direct switch between. FN+ZXC to link the Blue tooth device.
2.4G link:
Long press the FN+B=2.4G key, then the keyboard code matching light will flash blue light, the receiveris plugged into the
computer's USB port, the connection success light will turn bright blue light.
Wired link:
Press the FN+V=USB key, the keyboard code matching light will flash white light, the keyboard codematching light will become long and bright white, the keyboard is connected with the computerTYPE-C line.
Compound function key switch:
FN + ← = Lighting effect switch
FN +［｛= Decrease the lightness
FN +］｝= Increase the lightness
FN +；：= Slower the light effect
FN + ’ ” = Faster the light effect
FN + WIN = Lock the key WIN and APP
FN+A= Play/Pause
FN+S= Precious track
FN+D= Next track
FN+F= Decrease the volume
FN+G= Increase the volume
FN+H= Mute
FN+J= Insert
FN+K= Home
FN+L= Page Up
FN+U= PrtScr SysRq
FN+I= Scroll Lock
FN+P= Pause Break
FN+M= Delete
FN+<= End
FN+>= Page Down
FN+Esc=.
FN+Shift+Esc=~
1：Bond wire separation stable transmission ,TYPE-C interface
The keyboard adopts Type-C interface, and the design of the key line is separated, which is convenient to disassemble, and at the same time, it makes charging simple and easy to carry.
2：Mechanical blue shaft design
Crisp paragraph axis ，crisp sound.Strong sense of paragraph, rich sense of rhythm in typing, it will be more refreshing to type, suitable.Users who write more on computers or who enjoy percussion.
3：BT5.0. 2.4G, Wired,Support multiple devices
Three Modes Optional Connection,Support blue tooth 5,0/2.4g/cable mode, Multiple devices such as mobile phones, tablets,and desktop computers can be connected at the same time.And at the same time ,FN function key can be switched atwill button.
4: Ergonomic Ddsign
The arc of the keyboard is designed according to ergonomics, high and low key positions,long-term use is not easy to fatigue, and you will fight all day long.
5:2200mAh Long Battery Life
The body has a built-in large-capacity lithium battery. TYPE-C charging interface，which can be recharged repeatedly,which can be taken into account when wired.Recharge.Good battery life and long-lasting durability.
Product specifications:
Specification item:Three-mode mechanical keyboard
Product number:L800
Interface Type:TYPE-C
Connection method:Blue tooth 5.0、2.4G、Type-C Wired
product type:Mechanical keyboard
Built-in battery capacity: 2200mA
Number of keys:61KEY
Button life:50 million times or more
Operating Voltage:5.0V±5% DC
Working current:150mA (MAX)
Cable length:1.75m
Keycap material:ABS two-color injection
Product net weight: 529.5g
Product size: 29X10X3.8CM
Package gross weight: 674.7g
Color box packing size: 338*14.3*5cm
System compatibility:Compatible with IBM PC Win98SE/Me/2000/XP/VISTA/WIN 7/WIN10
Supported devices: Multiple devices such as mobile phones, tablets, and desktop computers can be connected at the same time
Packing list:
1 x 61keys 3-modes mechanical keyboard
1 x User English Manual
1x Colorful package
Three-mode connection instructions:
Blue tooth link:
Long press FN+Z=BT1 to connect to the first device, long press FN+Z button for 3 seconds, the bluelight of Z button flashes quickly, Blue tooth is in pairing state, and the paired one, tap FN+Z again toreturn Connect the device.
Long press FN+X=BT2 to connect to the second device, press and hold the FN+X button for 3 seconds,the blue light flashes quickly, the Blue tooth is in the pairing state, and the paired one, tap FN+X again toreturn Connect the device.
Long press FN+C=BT3 to connect to the third device, long press FN+C for 3 seconds, the blue lightflashes quickly, the Blue tooth is in the pairing state, and the paired is already paired, tap FN+C again toreturn Connect the device.
Note:
When the keyboard is in the current Blue tooth state, the switch is also a direct switch between. FN+ZXC to link the Blue tooth device.
2.4G link:
Long press the FN+B=2.4G key, then the keyboard code matching light will flash blue light, the receiveris plugged into the
computer's USB port, the connection success light will turn bright blue light.
Wired link:
Press the FN+V=USB key, the keyboard code matching light will flash white light, the keyboard codematching light will become long and bright white, the keyboard is connected with the computerTYPE-C line.
Compound function key switch:
FN + ← = Lighting effect switch
FN +［｛= Decrease the lightness
FN +］｝= Increase the lightness
FN +；：= Slower the light effect
FN + ’ ” = Faster the light effect
FN + WIN = Lock the key WIN and APP
FN+A= Play/Pause
FN+S= Precious track
FN+D= Next track
FN+F= Decrease the volume
FN+G= Increase the volume
FN+H= Mute
FN+J= Insert
FN+K= Home
FN+L= Page Up
FN+U= PrtScr SysRq
FN+I= Scroll Lock
FN+P= Pause Break
FN+M= Delete
FN+<= End
FN+>= Page Down
FN+Esc=.
FN+Shift+Esc=~
