Quick Details
-
Brand Name:
-
CHYT
-
Model Number:
-
LW2R-100
-
Rated Current:
-
32A, 40A, 50A, 63A,100A,125A
-
Product name:
-
Automatic Transfer Switch
-
Certificate:
-
CCC CE
-
Operation type:
-
Automatic Conversion
-
Function:
-
Automatic Transfer Switch Generator ATS
-
Standard:
-
IEC60947-6-1
-
Rated Voltage Ue:
-
AC220V 50/60Hz
-
Insulation Voltage Ui:
-
AC690V 50/60Hz
-
Rated impulse withstand voltage:
-
8KV
-
Mechanical life:
-
5000 Times
-
Electrical Life:
-
2000 Times
Quick Details
-
Type:
-
PC
-
Number of Pole:
-
2
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CHYT
-
Model Number:
-
LW2R-100
-
Rated Current:
-
32A, 40A, 50A, 63A,100A,125A
-
Product name:
-
Automatic Transfer Switch
-
Certificate:
-
CCC CE
-
Operation type:
-
Automatic Conversion
-
Function:
-
Automatic Transfer Switch Generator ATS
-
Standard:
-
IEC60947-6-1
-
Rated Voltage Ue:
-
AC220V 50/60Hz
-
Insulation Voltage Ui:
-
AC690V 50/60Hz
-
Rated impulse withstand voltage:
-
8KV
-
Mechanical life:
-
5000 Times
-
Electrical Life:
-
2000 Times
Product Description
Product introduction
LW2R series dual-power automatic transfer switch is newly developed micro household power transfer switch. The Switch is mainly used for testing whether normal or spare power is normal or not. When the normal power is abnormal, the spare power works at once, which therefore ensure the continuity, reliability, and safety of power supply, The product is specifically designed for household orbit-type installation and specifically used in Din-Rail power distribution box.
LW2R Series automatic transfer switch is suitable for the emergency power supply system with 50 or 60Hz alternating current rated 400v, 100A. It is compact in structure, reliable in transfer in transfer, convenient in installation and maintenance, and has long life expectancy. Widely used in various occasions where continuous power failure is not allowed, it can be operated both electrically and manually.
LW2R Series automatic transfer switch complies with requirements of Low-Voltage switch gear and control gear specified by IEC 60947-6-1.
Product features
1.Reasonable structure, small volume, nice appearance, provided with protective shield
safer and more reliable power supply
2.Complete protective functions, including open phase and loss-of-voltage protection
3.Noiseless, energy saving , simple installation , easy operation, reliable and stable performance
Specification
|
Product Model
|
LW2R-100
|
|
Rated Current le: A
|
32A, 40A, 50A, 63A,100A,125A
|
|
Insulation Voltage Ui
|
AC690V 50/60Hz
|
|
Rated Voltage Ue
|
AC220V 50/60Hz
|
|
Grade
|
PC Class
|
|
Pole
|
2P, 3P, 4P
|
|
Electrical Life
|
2000times
|
|
Mechanical Life
|
5000times
|
|
Rated impulse withstand voltage
|
8KV
|
|
Control Circuit Us
|
AC220V 50/60Hz
|
|
Standard
|
IEC60947-6-1
|
|
Operation
|
Manual / automatic
|

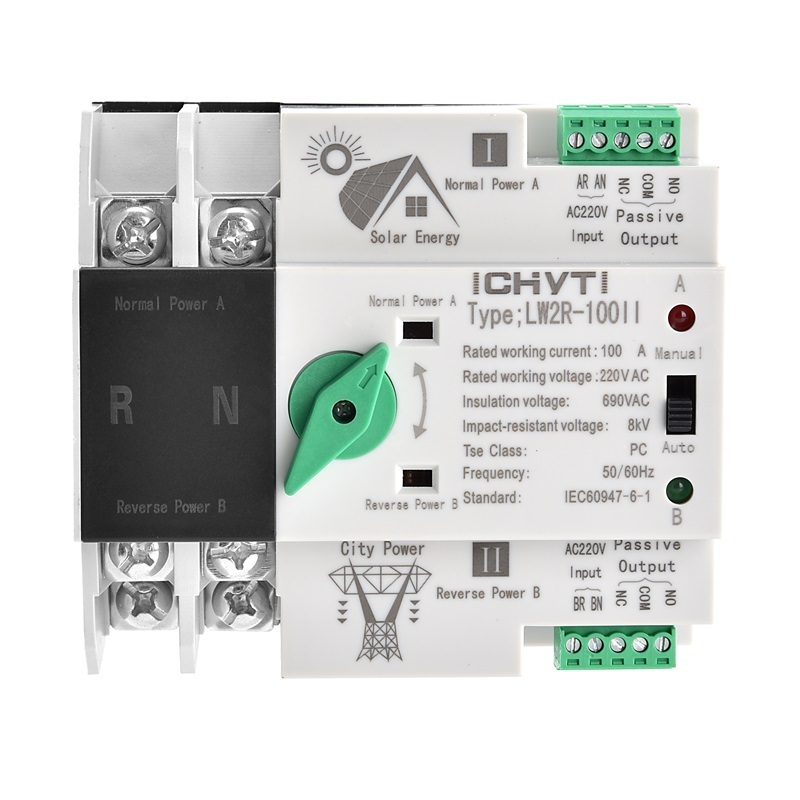

Details Images
