Quick Details
-
Brand Name:
-
KOSUN
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
500
-
tank volume:
-
200L
-
Tank type:
-
Horizontal or Vertical
-
Insulation:
-
Single layer or with insulation
-
Material:
-
304 or 316 Stainless steel
-
Inside Finsh:
-
Mirror polished Ra<0.4um
-
Outside Finsh:
-
2B or Satin Finsh
-
Pressure:
-
0-20bar
-
Jacket:
-
coil,dimple jacket,full jacket
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Online support
Quick Details
-
Capacity:
-
200L
-
Max Working Pressure(MPa):
-
1 MPa
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KOSUN
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
500
-
tank volume:
-
200L
-
Tank type:
-
Horizontal or Vertical
-
Insulation:
-
Single layer or with insulation
-
Material:
-
304 or 316 Stainless steel
-
Inside Finsh:
-
Mirror polished Ra<0.4um
-
Outside Finsh:
-
2B or Satin Finsh
-
Pressure:
-
0-20bar
-
Jacket:
-
coil,dimple jacket,full jacket
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Online support

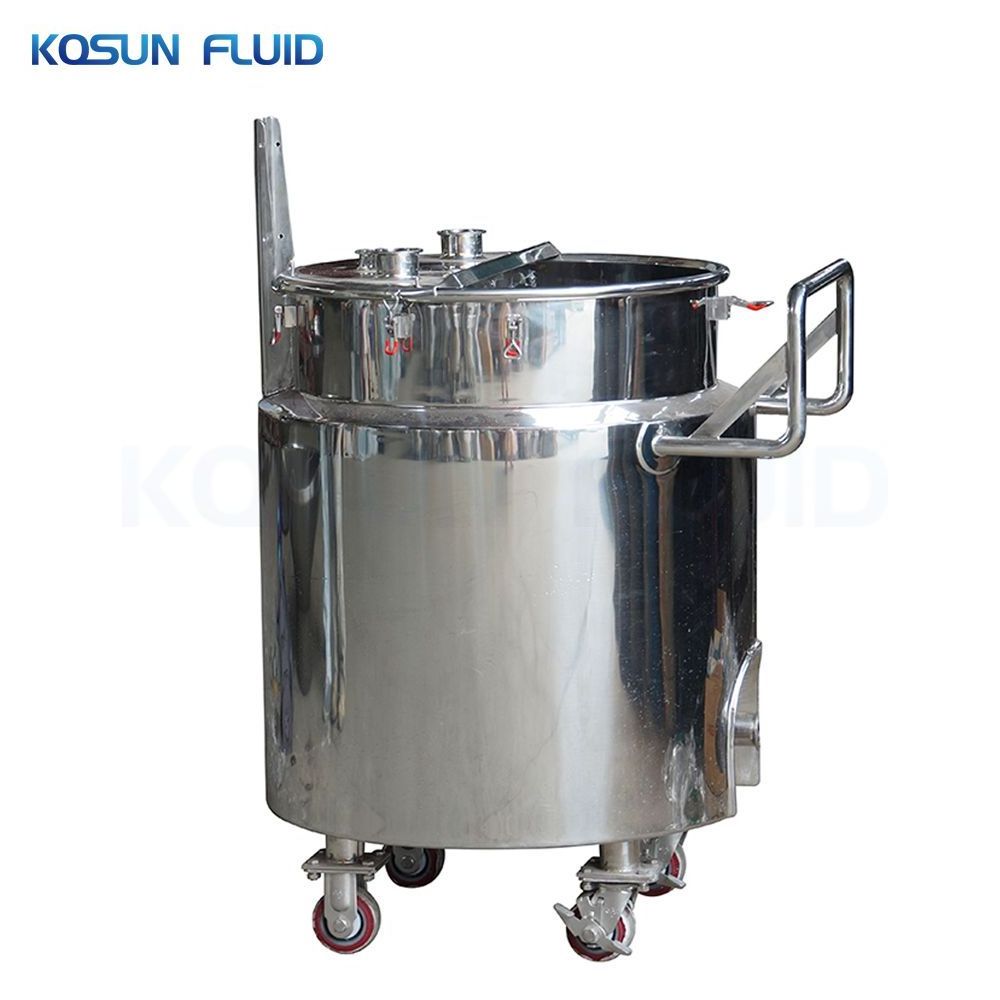

KOSUN FLUID produces all kinds of stainless steel tanks for all industries, all tanks could be customized according to customer’s requirement, Please contact our sales team, we will give best service and solution. Thanks.
There are various agitator options of stainless steel mixing tank: impeller type, Anchor type, Turbine type, High shear mixer, magnetic mixer. The mixing tank could be made with or without jacket.
The mixing tank could be made with or without jacket. Jacket type including full jacket, Dimple jacket, Heating coils. Heating and cooling type including steam heating and electric heating.
|
Tank Data sheet
|
|
|
|
Tank Volume
|
From 50L upto 10000L
|
|
|
Material
|
304 or 316 Stainless steel
|
|
|
Insulation
|
Single layer or with insulation
|
|
|
Top Head type
|
Dish top, Open lid top, Flat top
|
|
|
Bottom type
|
Dish bottom, Conical bottom, Flat bottom
|
|
|
Agitator type
|
impeller, Anchor , Turbine , High shear, magnetic mixer, Anchor mixer with scraper
|
|
|
|
magnetic mixer, Anchor mixer with scraper
|
|
|
Inside Finsh
|
Mirror polished Ra<0.4um
|
|
|
Outside Finish
|
2B or Satin Finish
|
|
|
Application
|
Food, Beverage
|
|
|
|
honey, chocolate, alcohol etc
|
|
Propeller mixer
Recommend RPM
: 0-960RPM
Viscosity
: Low/medium viscosity
Application
: Mainly Liquid mixing
Paddle mixer
Recommend RPM
:
0-200RPM
Viscosity
: Low/medium viscosity
Application : Mainly Liquid mixing
Application : Mainly Liquid mixing
Anchor mixer
Recommend RPM
:
30RPM
Viscosity
:
Medium/High viscosity
Application : Melting, High viscosity product mixing , For single wall tank
Application : Melting, High viscosity product mixing , For single wall tank
Scraper mixer
Recommend RPM
: 30RPM
Viscosity
: Medium/High viscosity
Application : Melting, High viscosity product mixing, For jacket tank
Application : Melting, High viscosity product mixing, For jacket tank
Dispersion mixer
Recommend RPM
:
1480/2850 RPM
Viscosity
:
Low/medium viscosity
Application : Liquid powder mixing and dispersion
Application : Liquid powder mixing and dispersion
Homogenizer High shear mixer
Recommend RPM
: 1480/2850 RPM
Viscosity
: Low/medium/High viscosity
Application : Liquid powder mixing and homogenizing
Application : Liquid powder mixing and homogenizing
Magnetic mixer
Recommend RPM
:
0-355RPM
Viscosity
:
Low/medium viscosity
Application : I nstall at bottom, No mechanical seal working condition
Application : I nstall at bottom, No mechanical seal working condition
Anchor & Dispersion combine
Recommend RPM
:
As above
Viscosity
:
Low/medium viscosity
Application : Liquid powder mixing and dispersion For tank volume >500L
Application : Liquid powder mixing and dispersion For tank volume >500L
Anchor & Homogenizer combine
Recommend RPM
: As above
Viscosity
: Low/medium viscosity
Application : Liquid powder mixing and dispersion For tank volume >500L
Application : Liquid powder mixing and dispersion For tank volume >500L
