Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AUCARE
-
Warranty:
-
12 Months
-
alluminum mold:
-
40% energy saving
-
Product model:
-
1400-III
-
Product implementation standard:
-
Q/SP001-1999
-
Maximum repairable toe length:
-
350mm
-
Maximum repairable tread length:
-
400mm
-
Total power/voltage:
-
8KW/three-phase four-wire with N line 220V/380V
-
Machine weight:
-
330kg
-
Repair temperature:
-
130-160 degrees
-
Repair time:
-
4~6 hours
-
Airbag inflation air pressure:
-
0.4Mpa (4 kg)
Quick Details
-
Car Fitment:
-
Dacia - Europe
-
Main Material:
-
steel
-
Size:
-
Universal
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AUCARE
-
Warranty:
-
12 Months
-
alluminum mold:
-
40% energy saving
-
Product model:
-
1400-III
-
Product implementation standard:
-
Q/SP001-1999
-
Maximum repairable toe length:
-
350mm
-
Maximum repairable tread length:
-
400mm
-
Total power/voltage:
-
8KW/three-phase four-wire with N line 220V/380V
-
Machine weight:
-
330kg
-
Repair temperature:
-
130-160 degrees
-
Repair time:
-
4~6 hours
-
Airbag inflation air pressure:
-
0.4Mpa (4 kg)
Specification
|
Product implementation standard:
|
Q/SP001-1999
|
Product model:
|
14.00-III
|
|
Maximum repairable toe：
|
350mm
|
Maximum repairable tread length:
|
400mm
|
|
Total power/voltage:
|
8KW/three-phase four-wire with N line 220V/380V
|
Repair temperature:
|
130-160 degrees
|
|
Repair time:
|
4~6 hours
|
Airbag inflation air pressure:
|
0.4Mpa (4 kg)
|
|
Machine weight:
|
330kg
|
Working current:
|
30A, power cord diameter requirement>=6 square mm
|

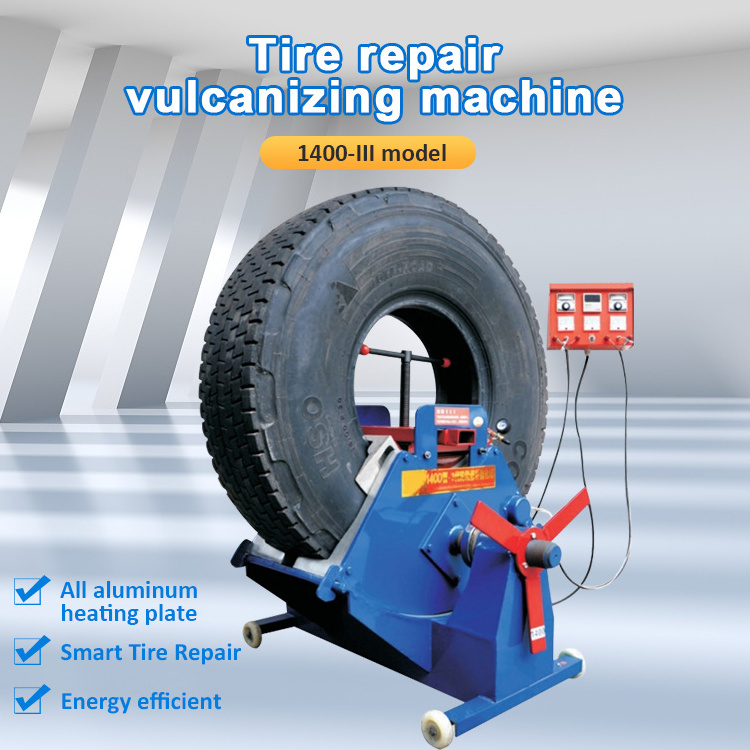

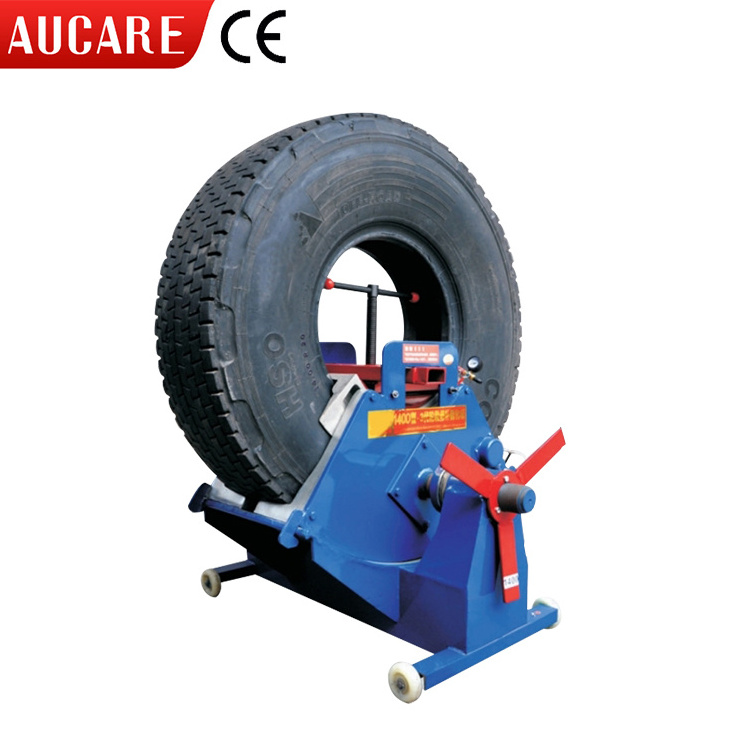

Alluminum heating plate Vulcanizing Machine
Purpose and characteristics

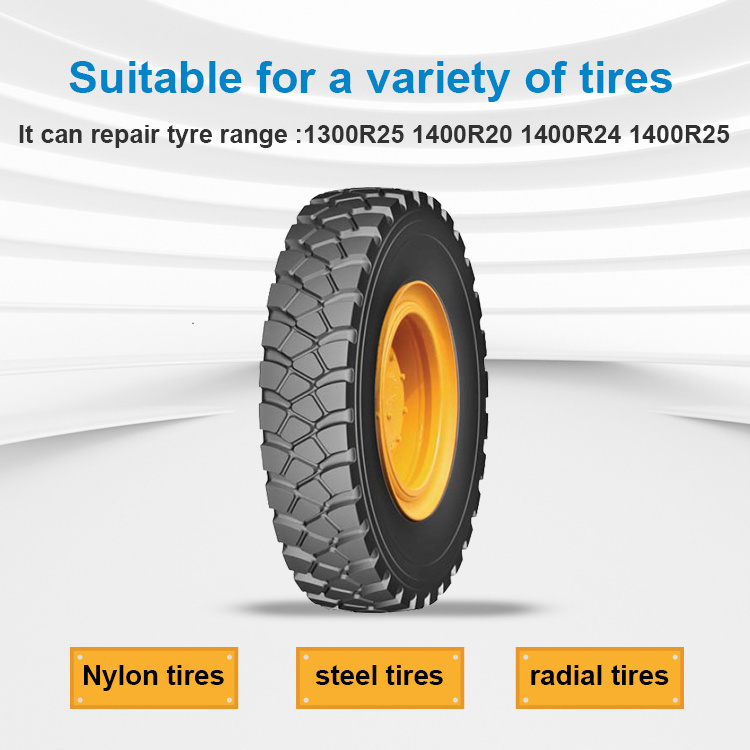

This machine can repair Can patch 13.00R20 to 14.00R20/25 nylon tires and steel wire radial tires. This machine is the third-generation product developed by our company. It has the characteristics of high efficiency, energy saving, fast heat
generation, uniform heat generation, and long service life. The machine has also lengthened the aluminum mold by 150mm, which can repair large puncture holes in tires (that is, repair wounds within 400mm). This machine is equipped with an intelligent numerical control temperature controller, which can automatically maintain a constant temperature and automatically shut down according to the user's setting, which greatly saves electricity and time. This machine has high tyre repair efficiency and simple operation.

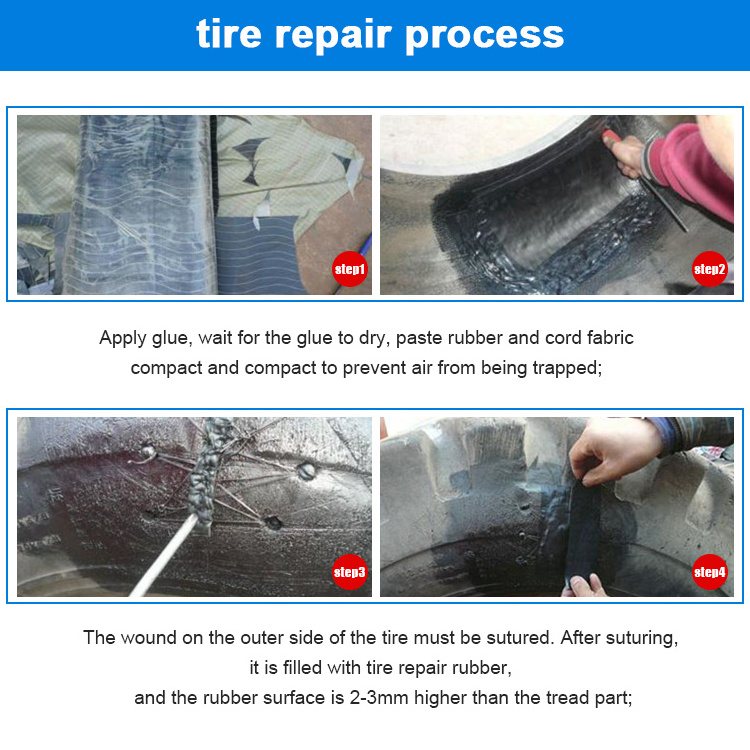

Operation steps:
