Quick Details
-
Weight (KG):
-
23500 KG
-
Place of Origin:
-
Fujian, China
-
Voltage:
-
220 v
-
Dimension(L*W*H):
-
4660*2280*5200
-
Power (kW):
-
90 kW
-
Disperse plate linear Velocity(m/s):
-
0-23
Quick Details
-
Barrel Volume (L):
-
3000
-
Max. Loading Volume (L):
-
3000 L
-
Range of Spindle Speed(r.p.m):
-
0 - 2200 r.p.m
-
Weight (KG):
-
23500 KG
-
Place of Origin:
-
Fujian, China
-
Voltage:
-
220 v
-
Dimension(L*W*H):
-
4660*2280*5200
-
Power (kW):
-
90 kW
-
Disperse plate linear Velocity(m/s):
-
0-23
Automatic Car Paint Mixing Machine/Paint Dispersant Machine/Paint Dispenser
Product introduce
Our double-shaft mixer is widely used in high viscous materials, such as adhesives, silicone rubber, sealant, glass glue, quartz sand, battery paste, electronic slurry, silicone rubber, polyurethane, hot sol, coating, pigment, dyestuff, etc.
Feature
1. Dispersing Material Thoroughly and Quickly: the low-speed shaft rotates slowly and mixes all the material and the high-speed shaft rotates quickly and disperses the material thoroughly.
2. Two Control System for Two Shafts: The dispersing speed is adjusted freely by the inverter, while the Mixing shaft speed is adjusted by the reducer.
3. Hydraulic or Pneumatic Lifting
4. Various Mixer Types for Your Choice: frame Mixer, anchor Mixer, butterfly mixer, and so on.
5. Less Cost: The scraper can scrape up all the material on the inner tank wall.
6. Vacuum Mixing: Material could be mixed in vacuum conditions
7. Production Capacity: Batch dispersing mixing Capacity 100-1000L
Specification
|
Items Model
|
300L
|
500L
|
650L
|
1000L
|
1200L
|
2000L
|
3000L
|
|
Tank working Capacity/L
|
300L
|
500L
|
650L
|
1000L
|
1200L
|
2000L
|
3000L
|
|
Tank Design Size/L
|
368L
|
670L
|
807L
|
1327L
|
1846L
|
2300L
|
3400L
|
|
Tank Size/mm
|
850*650
|
1000*850
|
1100*850
|
1300*1000
|
1400*1200
|
1500*1300
|
1700*1500
|
|
Revolution Motor/Kw
|
22
|
37
|
45
|
55
|
75
|
90
|
0-9
|
|
Revolution Speed/rpm
|
0-26
|
0-22
|
0-22
|
0-20
|
0-15
|
0-13
|
0-24
|
|
Mix Speed/rpm
|
0-39
|
0-35
|
0-35
|
0-36
|
0-35
|
0-35
|
0-24
|
|
Disperse Motom/Kw
|
37
|
45
|
55
|
75
|
90
|
110
|
132
|
|
Disperse Speed/rpm
|
0-2200
|
0-2000
|
0-2000
|
0-1800
|
0-1500
|
0-1500
|
0-1000
|
|
Disperse plate linear Velocity(m/s)
|
0-23
|
0-23
|
0-23
|
0-23
|
|||
|
Suttle/Kg
|
7700
|
10300
|
11000
|
13500
|
16800
|
19500
|
23500
|
|
Measurement/mm (L*W*H)
|
3200*1600*3200
|
3600*1950*3900
|
3800*1700*4200
|
4300*1950*5000
|
4320*2100*4530
|
4430*2050*4950
|
4660*2280*5200
|

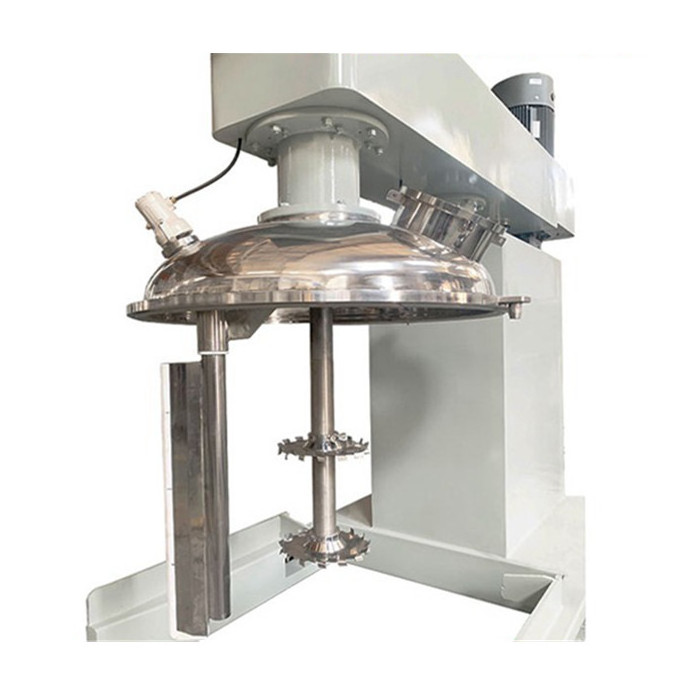

Product Image
