Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KETAI
-
Weight (KG):
-
70 KG
-
Core Components:
-
Laser source
-
Product name:
-
fiber laser marking cutting machine 30w 50w
-
Laser Power:
-
20W 30W 50W 70W 100W
-
Applicable Material:
-
Metal
-
Marking area:
-
110*110mm/175*175mm/200*200mm/300*300mm
-
Laser source:
-
MAX/Raycus
-
Power supply:
-
AC220V +10% / 50HZ
-
Marking Depth:
-
0 ~0.5mm
-
Marking Speed:
-
0~7000mm/s
-
Software:
-
EZCAD Software
-
After-sales Service Provided:
-
Online support
Quick Details
-
Working Accuracy:
-
0.01MM
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KETAI
-
Weight (KG):
-
70 KG
-
Core Components:
-
Laser source
-
Product name:
-
fiber laser marking cutting machine 30w 50w
-
Laser Power:
-
20W 30W 50W 70W 100W
-
Applicable Material:
-
Metal
-
Marking area:
-
110*110mm/175*175mm/200*200mm/300*300mm
-
Laser source:
-
MAX/Raycus
-
Power supply:
-
AC220V +10% / 50HZ
-
Marking Depth:
-
0 ~0.5mm
-
Marking Speed:
-
0~7000mm/s
-
Software:
-
EZCAD Software
-
After-sales Service Provided:
-
Online support
Feature about desktop fiber laser marking machine KT TAI series:
1. Easy Focus Device: Dual red-light positioning, KETAI patent technology;
2. Low Consumption: About 0.5kw for whole machine;
3. Long Life-time: Laser source life is more than 100,000 hours;
4. High Speed Marking: Special laser head for high-speed scanning.
1. Easy Focus Device: Dual red-light positioning, KETAI patent technology;
2. Low Consumption: About 0.5kw for whole machine;
3. Long Life-time: Laser source life is more than 100,000 hours;
4. High Speed Marking: Special laser head for high-speed scanning.
Products Description
|
Product
|

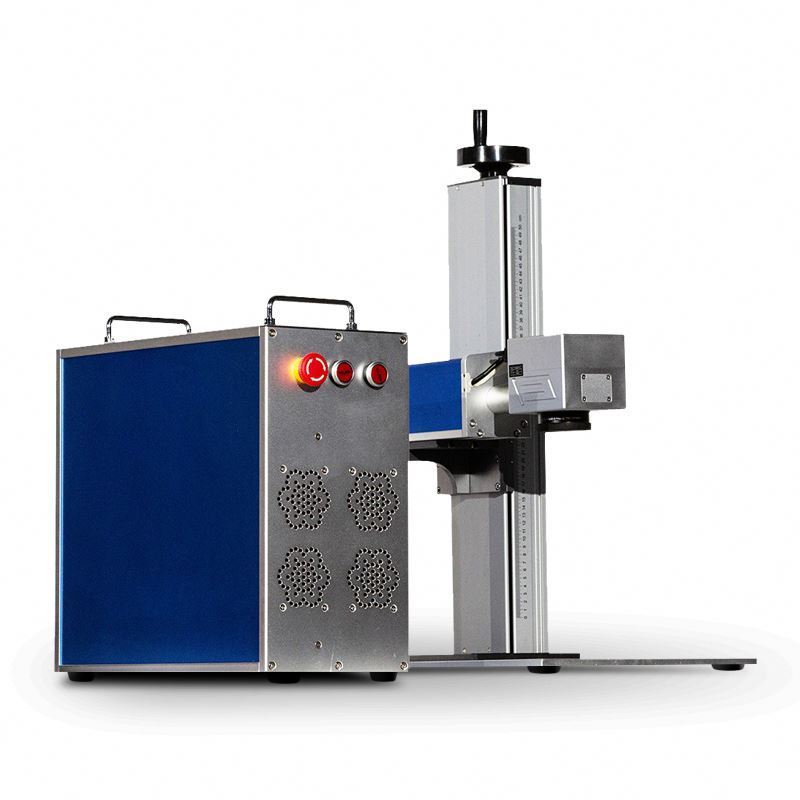

Desktop Fiber Laser Marking machine
|
|
Model
|
KT-20, KT-30, KT-50,KT-70,KT-100
|
|
Laser type
|
Fiber laser
|
|
Laser power
|
10W/20W/30W/50W/70W/100W(optional)
|
|
Cooling mode
|
Air cooling
|
|
Supports graphical format
|
PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF
|
|
Beam quality
|
m2 <2
|
|
Laser Wave length
|
1064nm±10nm
|
|
Marking range
|
110 * 110mm-150*150mm
|
|
Marking Speed
|
≤7000mm/s
|
|
Marking Depth
|
≤.2mm
|
|
Mini. Character
|
0.15mm
|
|
Repeated Accuracy
|
±0.002mm
|
|
Applications
|
Metal and non-metallic materials
|
|
Dimensions
|
1400*600*800mm
|
Details Image
World famous brand core parts provide the quality insurance of the desktop fiber laser marking machine KETAI. believe that details decide everything.
Application
KETAI series fiber laser marking machine can process most metal and non-metal materials.
Support marking on stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titanium,
other products, painting acrylic, density board, plastic, acrylic acid, rubber, bamboo, marble, painting glass, TPU (Thermoplastic
polyurethanes).
Support marking on stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titanium,
other products, painting acrylic, density board, plastic, acrylic acid, rubber, bamboo, marble, painting glass, TPU (Thermoplastic
polyurethanes).
