Automatic Polyethylene Foam Die Cutting Machine

Automatic Polyethylene Foam Die Cutting Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $12300

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Kuntai

Weight:: 12 KG

Dimension(L*W*H):: 4750X3100X1900MM (LxWxH)

After-sales Service Provided:: Engineers available to service machinery overseas

Cutting Machine Name:: Automatic Polyethylene Foam Die Cutting Machine

Color:: Blue, Customizable

Max Cutting Force:: 80ton, 100ton, 200ton, Customizable

Structure Change:: Available on request

Working Video:: Contact me by Skpye: annielv8

Certification:: CE and ISO

Quick Details

Voltage:: 220V, 480V, Customizable

Power:: 28KW, Customizable

Place of Origin:: Jiangsu, China

Brand Name:: Kuntai

Weight:: 12 KG

Dimension(L*W*H):: 4750X3100X1900MM (LxWxH)

After-sales Service Provided:: Engineers available to service machinery overseas

Cutting Machine Name:: Automatic Polyethylene Foam Die Cutting Machine

Color:: Blue, Customizable

Max Cutting Force:: 80ton, 100ton, 200ton, Customizable

Structure Change:: Available on request

Working Video:: Contact me by Skpye: annielv8

Certification:: CE and ISO

Hydraulic Die Automatic Cutting Machine

Leather Cutting Press Machine

Hydraulic Automatic Cutting Machine

Health Care Medical Supplies Die Cutting Machine

Football Panel Die Cut Press

Automatic Polyethylene Foam Die Cutting Machine

Below are some of our cutting machines videos links:

Automatic Cutting Machine with Conveyor Belt https://youtu.be/3T4ibfVZbgc

Double Side Auto Feed Die Cutting Machine for Packaging and Car Trim Materials https://youtu.be/y5DwYZcjb9A

Rotating Travel Head Hydraulic Cutting Machine https://youtu.be/X7WvvZkXGzg
Travel Head Die Cutting Machine with Conveyor Belt and Dust Collector https://youtu.be/OGOthrLxo7c

Swing arm die cutting machine for leather shoes, gaskets and EVA https://youtu.be/SQ9-2wfPJKs

Hydraulic Automatic Cutting Machine with Conveyor Belt for Car Trim https://youtu.be/auqAAwy9sN8

Receding Head Cutting Machine for Carpet https://youtu.be/X3uKlKeBFPI

Product Description

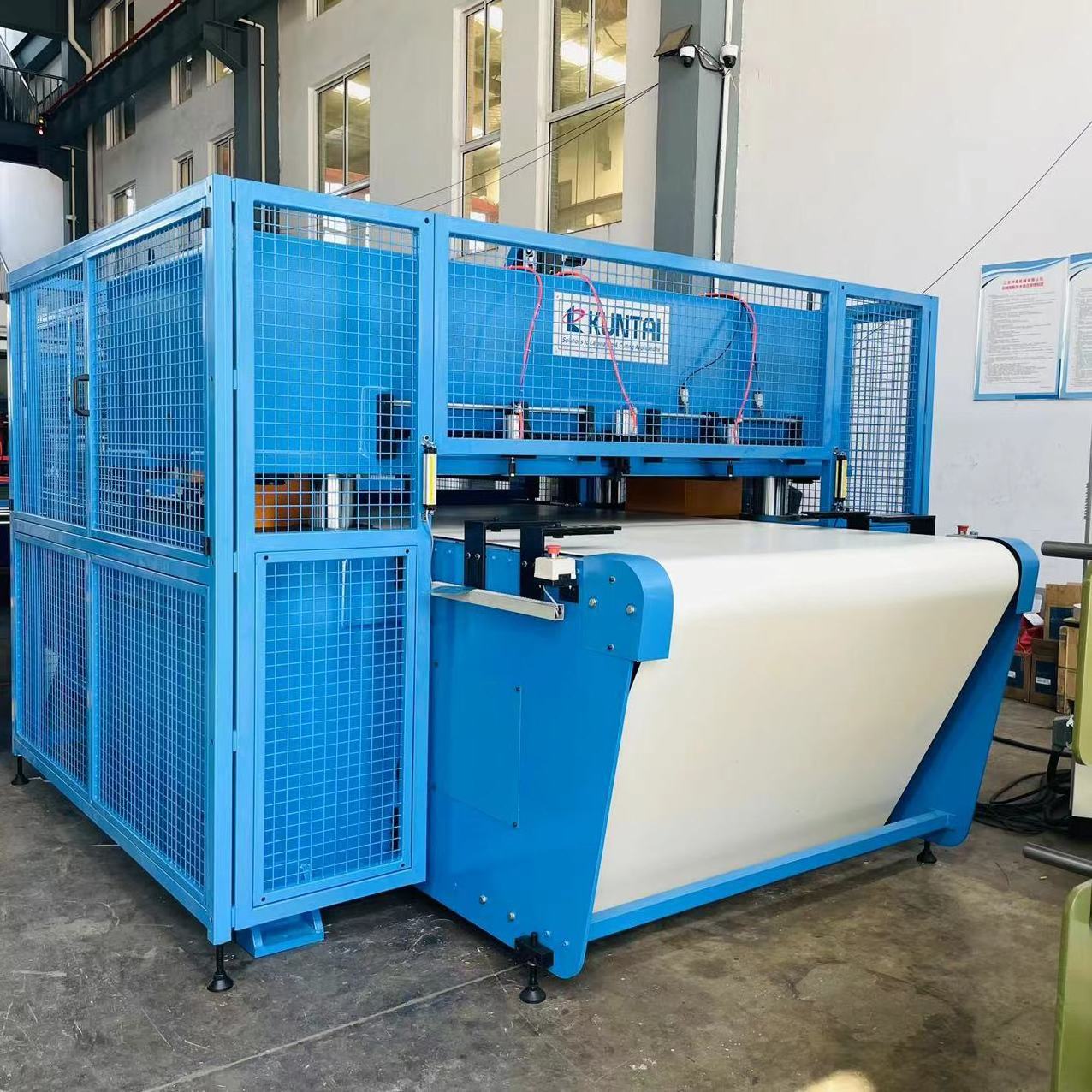

Hydraulic die automatic cutting machine

1. This type of die cutting machine with conveyor belt is used for continuous and large-batch cutting of nonmetal materials in rolls or in sheets, such as carpet and car interior materials, ball panel materials, leather, rubber, film, fabric and other materials.

2. The materials conveying part adopts PLC control. The materials are driven by servo motor and feed in from one side of the machine and finished products come out from the other side. The feeding is precise and automatic. The feeding length can be adjusted conveniently through touch screen.

3. The machine is installed with four-column guiding, double-crank balancing, four-column blocking fine-adjustment mechanism and specially designed hydraulic control system, providing high speed and precise cutting operation. Central oil supply automatic lubricating device reduces the abrasion of all movable connecting parts to the minimum extent.

4. The die cutter or cutting mould can be fastened by pneumatic clamp device so as to make its replacement convenient and prompt.

5. Machines with special specifications can be available on request.

Key Points:

Conveyor Belt: Germany or Switzerland Made or Customizable

Oil Pump: Germany Made or Customizable

Special Hydraulic System lowers the operation noise

Sealing Ring: Made in Italy
Press Switch: Made in Italy
Cutting Switch: Made in Germany

Hydraulic die automatic cutting machine

Hydraulic Automatic Cutting Machine Details:

Hydraulic Automatic Cutting Machine Application:

Technical Specs (Customizable):

Maximum Cutting Force	40T	60T
Cutting Area (mm)	1250*800	12501200/16001200
Tension Distance (mm)	25-135	25-135
Motor Power	4KW	5.5KW
G.W	5000	7500

Packaging & Shipping

Hydraulic Automatic Cutting Machine

Inner Package: Protective Film, etc

Outside Package: Plywood Case

Machines well packed with protective film and loaded in plywood case or export container;
English version operation manual and technical data;
One-Year-Period wear parts;
Tool ki t
