Quick Details
-
Voltage:
-
as requirements, as requirements
-
Power:
-
as requirements
-
Dimension(L*W*H):
-
1350x1350x2000mm
-
Product name:
-
Green Sand Mixer
-
Certification:
-
ISO9001,CE,BV,, CE,ISO,BV
-
Application:
-
Foundry Industry
-
Capacity:
-
customized
-
Weight:
-
3ton
Quick Details
-
Place of Origin:
-
Shandong, China
-
Machine Type:
-
Sand Mixer
-
Brand Name:
-
BINHAI
-
Voltage:
-
as requirements, as requirements
-
Power:
-
as requirements
-
Dimension(L*W*H):
-
1350x1350x2000mm
-
Product name:
-
Green Sand Mixer
-
Certification:
-
ISO9001,CE,BV,, CE,ISO,BV
-
Application:
-
Foundry Industry
-
Capacity:
-
customized
-
Weight:
-
3ton

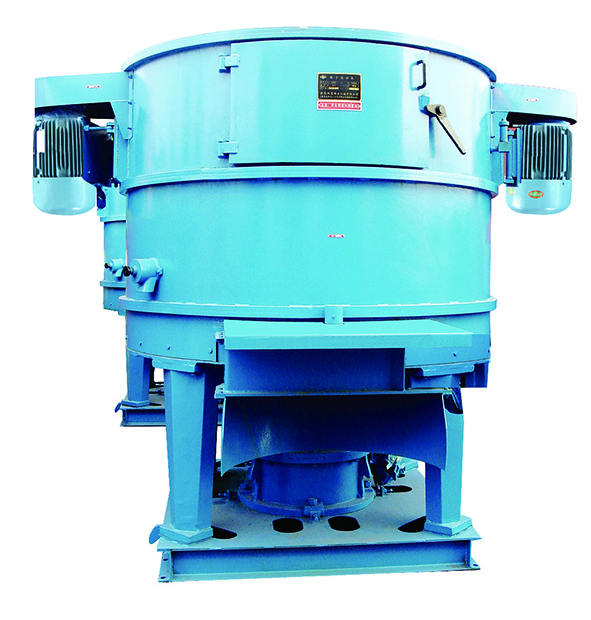

S14 ROTOR TYPE GREEN SAND MIXER
It have scrapers and two high-speed rotors with a blade were installated in the machine's chassis. Chassis rotates as clockwise, rotor and scraper rotate as counterclockwise. Rotor speed is higher than the speed of the chassis. Because chassis and rotor has an opposite movement, and the speed is different, so the sand of the chassis obtain different speed difference. Sand grains produce corresponding friction force and shear force, which causes the grinding, mixing, broken. This kind of machine not only mix with high efficiency, and the sand after mixing is good quality.
Uses
Mainly used for casting workshop sand mixed, either mixed single machine molding sand can be mixed dry film sand, hard sand, the sand surface and core sand, glass, ceramics, refractories, etc. Can also be usedindustry mixed a variety of powder, granular materials.
Technical parameters
|
Item |
Unit |
S1410 |
S1412 |
S1420 |
|
Disk dia |
Mm |
1000 |
1250 |
2000 |
|
Sand mix capacity |
t/h |
3-4.5 |
4-8 |
25-30 |
|
Feed capacity |
Kg |
200 |
250 |
1500 |
|
Power |
kw |
6.2 |
8.4 |
60(74) |
