Quick Details
-
Brand Name:
-
Beward
-
Model Number:
-
B2002FR-CM-L06
-
product name:
-
School Bell Face Recognition Authentication Adms Time Attendance
-
Transactions:
-
160,000
-
Recognition time:
-
0.3s
-
Recognition distance:
-
0.5~5 meters,depends on lens
-
Operating system:
-
Linux
-
Processor:
-
Sextuple processor + 1G memory + 16G flash
-
WDR:
-
≥120db
-
Operating temperature:
-
-30℃ - +60℃
-
Effective pixels:
-
2MP,1920*1080
-
Interface:
-
Relay , Power ,RJ45 , Wiegand,RS485
Quick Details
-
Special Features:
-
NIGHT VISION
-
Customized support:
-
Software reengineering, OEM, ODM, Customized logo, Online technical support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Beward
-
Model Number:
-
B2002FR-CM-L06
-
product name:
-
School Bell Face Recognition Authentication Adms Time Attendance
-
Transactions:
-
160,000
-
Recognition time:
-
0.3s
-
Recognition distance:
-
0.5~5 meters,depends on lens
-
Operating system:
-
Linux
-
Processor:
-
Sextuple processor + 1G memory + 16G flash
-
WDR:
-
≥120db
-
Operating temperature:
-
-30℃ - +60℃
-
Effective pixels:
-
2MP,1920*1080
-
Interface:
-
Relay , Power ,RJ45 , Wiegand,RS485
Capacity Biometric Facail Bio Smart Card Reader Automatic School Bell Face Recognition Authentication Adms Time Attendance
Capacity Biometric Facail Bio Smart Card Reader Automatic School Bell Face Recognition Authentication Adms Time Attendance
In addition, We provide face recognition SDK for secondary development, making it easier for partners who are professional at face recognition algorithm and Face search APP design. Our self-developed face recognition platform ( FaceGateMngPlatform ) is also available for partners who lack good enough development capabilities
Time Attendance Management Software
|
Features&Advantages |
|
Support Real Time Human Body Detection . |
|
Using Linux operating system, better system stability. |
|
Face recognition algorithm to accurately recognize faces, face recognition time is less than 0.5s. |
|
Support free switching 1:N/1:1 (IC card, QR code, ID card) recognition mode 1: N with 0.8s comparison efficiency. |
|
Support for AD file playback. |
|
Support PIR human body sensing wake-up function. |
|
Support TF card storage, pictures are stored continuously for 1 year, video is stored continuously for 7 days. |
|
Support 65000+ face matching library and 250,000 face recognition records. |
|
Rich interface protocol, support SDK and HTTP protocol under various platforms such as Windows/Linux. |
|
Support tracking of personnel movements under strong backlight conditions. |
|
The host supports an external ID card reader (For Chinese ID card). |
|
The host supports the Wiegand interface to connect with the personnel gate and the access control host, and acts as a face recognition reader. |
Specifications:
|
Hardware |
||
|
Processor |
Sextuple processor + 2G memory + 32G flash |
|
|
Operating system |
Linux Operating system |
|
|
Storage |
Support TF card storage |
|
|
Camera module |
U21R |
|
|
Sensor |
1/2.8" Progressive Scan CMOS |
|
|
Lens |
6mm ( optional ) |
|
|
Performance |
||
|
Recognition height |
1.2~2.2 meters , Angle can be adjusted |
|
|
Recognition distance |
0.5~5 meters , depends on lens |
|
|
Face angle |
30 degrees left and right, 30 degrees up and down |
|
|
Recognition time |
Less than 1 second |
|
|
Function |
Support 250,000 capture library, real-time capture, support 65,000 list library |
|
|
Interface |
||
|
Switch inputs |
1ch switch input |
|
|
Power |
DV12V/3A |
|
|
Network Interface |
1x RJ45 10M / 100M Adaptive Ethernet port |
|
|
Wiegand Interface |
1ch Wiegand interface input/output |
|
|
USB interface |
1ch USB interface |
|
|
Camera Data |
||
|
Camera |
Two cameras: 1x B/W camera ; 1x color camera |
|
|
Effective pixels |
2MP , 1920*1080 |
|
|
Min Illumination |
Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR) |
|
|
SNR |
≥50db(AGC OFF) |
|
|
WDR |
≥120db |
|
|
Video Coding |
H.265 Main Profile /H.264 BP/MP/HP /MJPEG |
|
|
Resolution |
Main stream:50Hz: 25fps (1920×1080,1280×720)
|
|
|
Sub stream:720*576
,
1-25(30)fps/640*480
,
1-25(30)fps
|

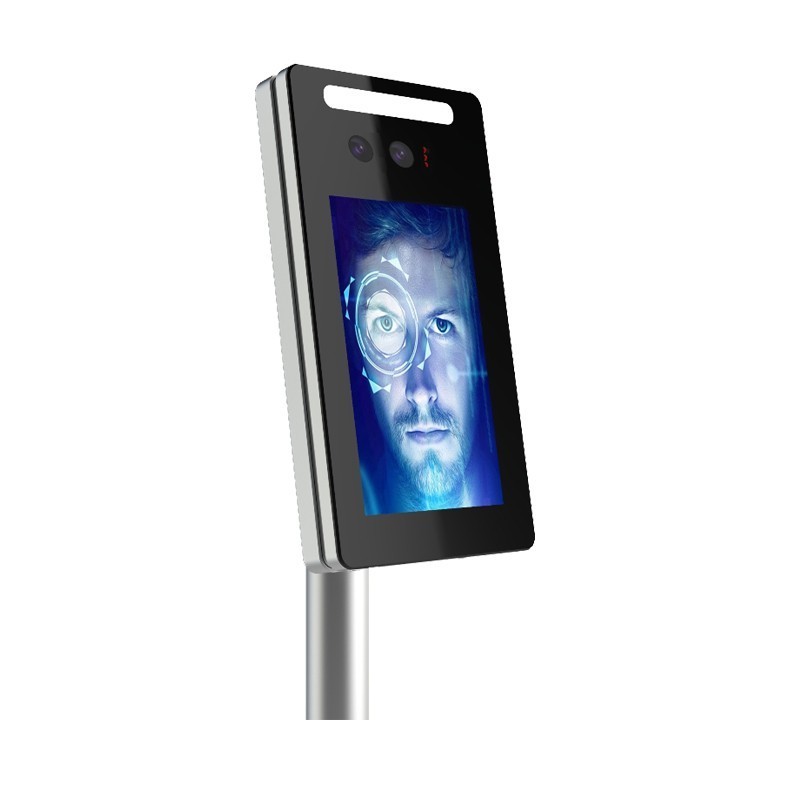

Product Images:
