Quick Details
-
Brand Name:
-
no
-
Model Number:
-
YZF5-13-20
-
Frequency:
-
50/60HZ
-
Product Name:
-
ac shaded pole motor
-
rated input:
-
25w
-
Rated current:
-
0.20A
-
Rated air volume:
-
360
-
net weight:
-
0.8kg
-
Insulation class:
-
Class B
-
Protection level:
-
IP42
-
Certification:
-
CCC/CE /ROHS
Quick Details
-
AC Voltage:
-
220-240V
-
Warranty:
-
1years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
no
-
Model Number:
-
YZF5-13-20
-
Frequency:
-
50/60HZ
-
Product Name:
-
ac shaded pole motor
-
rated input:
-
25w
-
Rated current:
-
0.20A
-
Rated air volume:
-
360
-
net weight:
-
0.8kg
-
Insulation class:
-
Class B
-
Protection level:
-
IP42
-
Certification:
-
CCC/CE /ROHS
YZF series motors are single-phase, 4-pole shaded motors, rated for 220-240V,50/60Hz or 110-120V,60Hz. Widely used in condenser, radiator, evaporator and other refrigeration equipment and heating fan equipment.
Shaded pole motor adopts oil bearing, ball bearing.
The internal structure of the motor has two types: split motor and conjoined motor.
Motor output power ranges from 1W to 34W and is adjusted by changing core thickness and winding parameters.
The insulation class of the motor is B, and the protection class is IP 42. We can produce the motors with the protection class IP 44 according to the requirements of customers.
Impedance protection is adopted for motors with output power below 10W, and 125-135℃ thermal protector is adopted for motors with output power greater than 10W.
Applicable ambient temperature is -30℃ -50 ℃ .
The average life of the motor is more than 20000 hours.
The motor is CE CCC and RoHS certified.

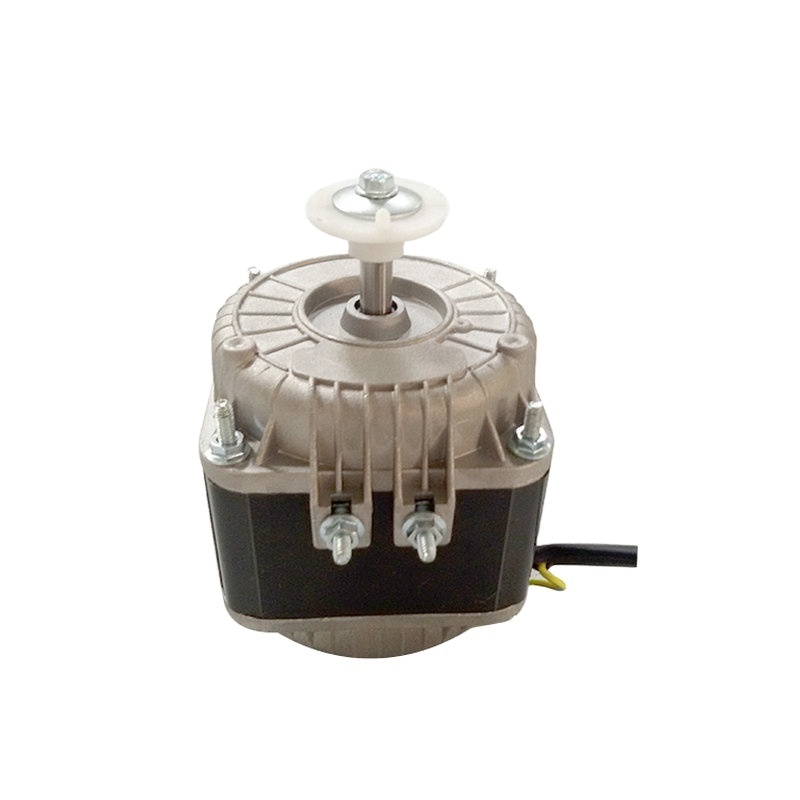

ac shaded pole motor
FAQ:
1.HOW LONG CAN I GET THE FEEDBACKS AFTER WE SENT THE INQUIRY?
We will reply you within 12 hours in working day.
2.ARE YOU A DIRECT MANUFACTURER OR TRADING COMPANY?
We are a factory, We produce and sell all by ourselves.
3.WHAT PRODUCTS CAN YOU OFFER?
We focus on shaded pole refrigerator motors, external axial fans, FFU fans and other products.
4.WHAT APPLICATIONS DO YOUR PRODUCTS RELATE TO?
Our products cover a wide range of in refrigeration equipment and units, generally used with the compressor, but also useful in industrial ventilation and heat and so on.
5.CAN YOU DO CUSTOMIZED PRODUCTS?
Yes,we can doing customized products according to the customers' drawings or samples.
6.HOW ABOUT THE CAPACITY OF YOUR COMPANY?
We have 8 fixed production lines.including 4 lines of shaded pole refrigerator motors, 2 lines of external fans and 2 lines of FFU fans, And our annual production capacity is over 4 million sets.
7.HOW MANY EMPLOYEES OF YOUR COMANY?WHAT ABOUT THE TECHNICISTS?
We now have more than 100 employees, including 5 engineers and 60 technicians.
8.HOW TO GUARANTEE THE QUALITY OF YOUR GOODS?
Firstly,we will do the inspection after every process.For the finished products,we will do 100% inspection according to the customers' requirements and the international standard.
Secondly,we have advanced and complete testing equipment in the industry, which can fully ensure that we can provide customers with high-quality products, and at the same time, ensure that we can meet customers' requirements for high quality and high performance.
9.WHAT'S THE PAYMENT TERM?
When we quote for you,we will confirm with you the way of transaction,FOB,CIF,CNF,etc.
For mass production goods, you need to pay 30% advance and70% balance pay before shipment or against copy of B/L.The common way is by T/T. D/P at sight is also acceptable.
10.HOW TO DELIVER THE GOODS TO US?
Usually we will ship the goods to you by sea,because we are in Hangzhou,and we are only 200 kilometers away from the Ningbo or Shanghai Port,it is very convenient and efficient to ship goods to any other countries.
11.WHERE ARE YOUR PRODUCTS MAINLY EXPORTED TO?
Our products are mainly exported to Russia, Pakistan, India, Thailand, Ukraine, Iraq, Europe and many other countries.
