Quick Details
-
Diameter:
-
18*50*50
-
Mounting Way:
-
Diffuse Reflection Type
-
IP Class:
-
IP65 IK08
-
Supply voltage:
-
DC/AC: 5-220V
-
Enclosure Material:
-
Brass nickled or ABS
-
Continuous load current:
-
100mA
-
Response Frequency:
-
DC:0.5KHZ, AC:25Hz
-
Small order:
-
Acceptable
-
Product Type:
-
Sensor switch
Quick Details
-
Usage:
-
Magnetic Sensor
-
Place of Origin:
-
Zhejiang, China
-
Product type:
-
Proximity Switch
-
Diameter:
-
18*50*50
-
Mounting Way:
-
Diffuse Reflection Type
-
IP Class:
-
IP65 IK08
-
Supply voltage:
-
DC/AC: 5-220V
-
Enclosure Material:
-
Brass nickled or ABS
-
Continuous load current:
-
100mA
-
Response Frequency:
-
DC:0.5KHZ, AC:25Hz
-
Small order:
-
Acceptable
-
Product Type:
-
Sensor switch

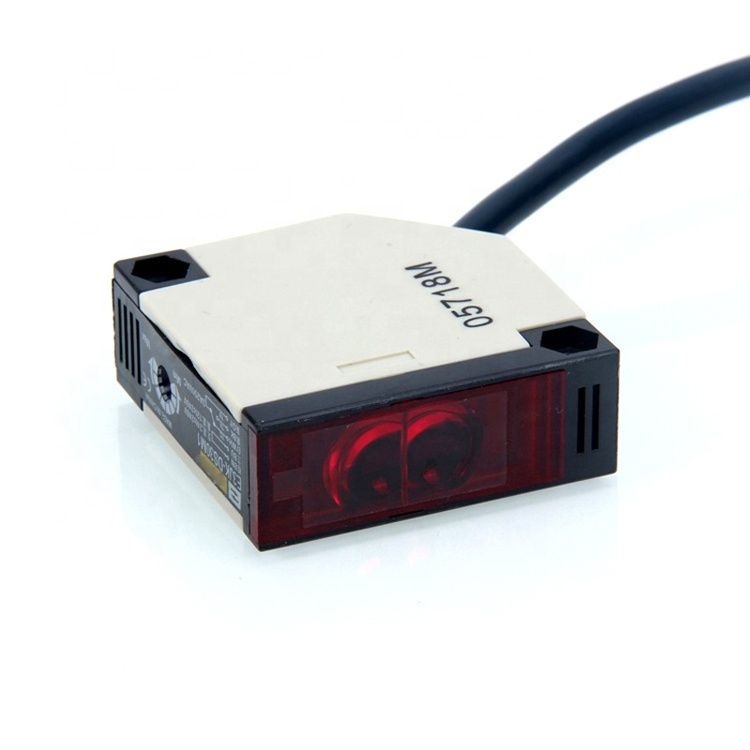

HS20 The square relays built-in DC diffuse type 18*50*50 E3JK-DS30M1 photoelectric proximity sensor switch
Product feature
Product Name: Photoelectric Switch; Model: E3JK-DS30M1
Supply Voltage: DC 12-24V; Load Rating: 3A 250VAC
Detection distance: 30cm; Response Time: < 30ms
Body Size: 2"x2"x0.75"; Net weight: 190g, Working temperature: -25-55 degrees.
Package Content: 1 x Photoelectric Switch, 1 x Reflector Panel, 1 x Mounting Bracket(with screws, nut)
Product description
Photoelectric Switch control by infrared ray, as a approach sensor, including a transmitter and receiver within.
A retro reflective arrangement places the transmitter and receiver at the same location and uses a reflector to bounce the light beam back from the transmitter to the receiver.
An object is sensed when the beam is interrupted and fails to reach the receiver.
Can be applied in security system, manufacturing industry.
|
Product name |
Photoelectric Sensor Switch |
|
Diameter |
18*50*50mm |
|
Type |
DC , NPN ( 3 wires) |
|
Output status |
NO |
|
Standard detection object |
Transparent, Opaque Object |
|
Material |
Brass nickel +ABS |
|
Supply voltage |
AC/DC 5-250 V |
|
Is_Customized |
Acceptable |
|
What You G e t |
1 X Photocell Sensor DC, NPN , NO, |
Note: If you need other items, please check our Specification Sheet
and leave Alibaba message to us, we will reply you within 2 hours !
Q1. What is your terms of packing?
proximity
switch
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8. What is proximity switch?
A: Proximity switch is a position switch that can be operated without mechanical direct contact with the moving parts. When the object approaches the sensing surface of the switch to the working distance, the switch can be operated without mechanical contact and any pressure is applied, thereby driving the DC electric appliance or provide control instructions to a computer (plc) device.
If you have any other questions, please send us an enquiry,we will reply you ASAP.
