AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V 50HZ 3P
-
Power:
-
4kw / 5.5kw / 7kw
-
Dimension(L*W*H):
-
5000*1500*1500mm
-
Weight:
-
5400 kg
-
Product name:
-
C/Z Purlin Roll Forming Machine
-
Application:
-
Industrial Profile
-
Function:
-
Eco-friendly
-
Keywords:
-
C/Z Purlin Roll Forming Machine
-
Motor Power:
-
15kw
-
Color:
-
Customer's Requirement
-
Processing Material:
-
Flat Iron
-
Control system:
-
PLC+touch Screen
-
Production Speed:
-
0-25m/min
Quick Details
-
Production Capacity:
-
20M/MIN
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Decho
-
Voltage:
-
380V 50HZ 3P
-
Power:
-
4kw / 5.5kw / 7kw
-
Dimension(L*W*H):
-
5000*1500*1500mm
-
Weight:
-
5400 kg
-
Product name:
-
C/Z Purlin Roll Forming Machine
-
Application:
-
Industrial Profile
-
Function:
-
Eco-friendly
-
Keywords:
-
C/Z Purlin Roll Forming Machine
-
Motor Power:
-
15kw
-
Color:
-
Customer's Requirement
-
Processing Material:
-
Flat Iron
-
Control system:
-
PLC+touch Screen
-
Production Speed:
-
0-25m/min
Product Specification

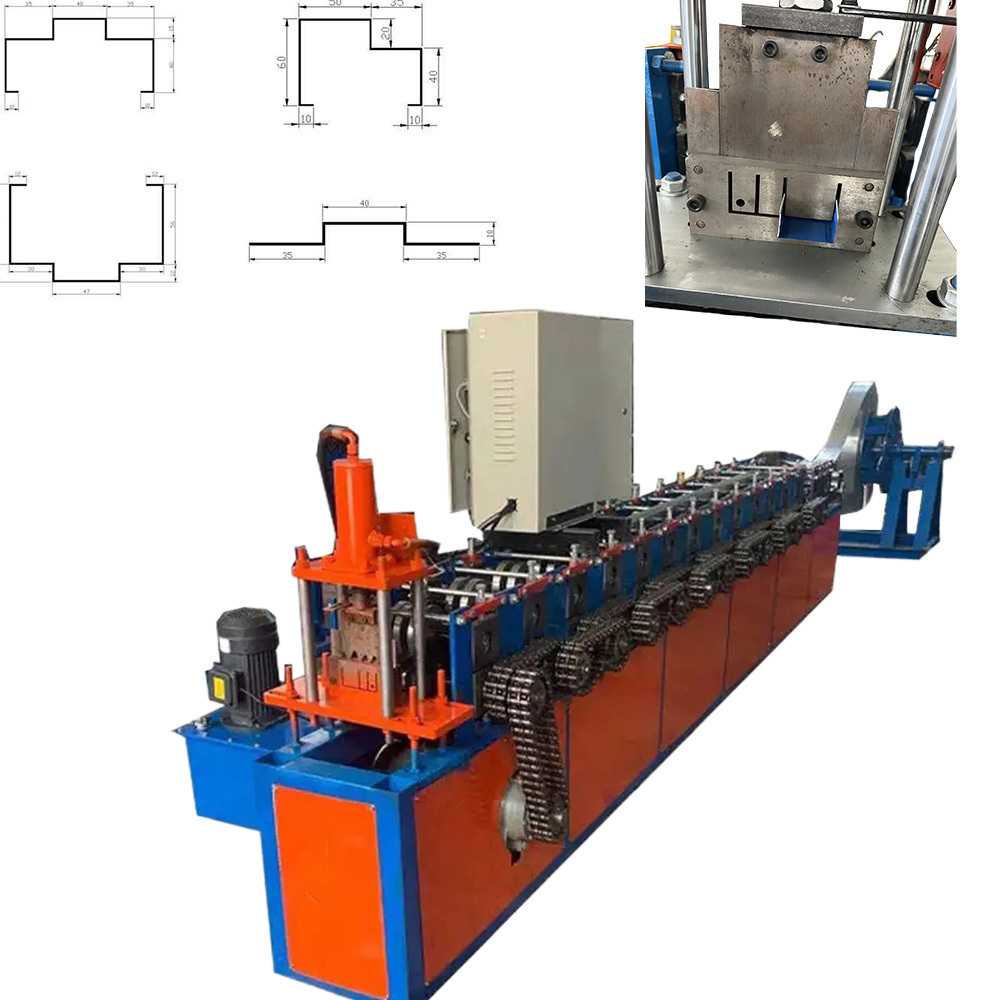

Metal Profile CD UD UW CW Roll Forming Machine Drywall steel frame construction machine
This Metal Profile CD UD UW CW Roll Forming Machine Drywall steel frame construction machine,is for making the stud and tracks for house frame.Usually have the CU,CW for the wall frame building, and CD/UD for the ceil building.
Here the usage of finished products for your reference.
All can make customized for your,please send me your final drawing,thickness,feeding width,thanks!!!
|
|
||
|
|
PLC Colored Touch Screen
|
|
|
Main Frame
|
18mm steel wedling
|
|
|
Main Power
|
5.5kw
|
|
|
Forming Speed
|
12-16m/min
|
|
|
Power Supply
|
380V,3-Phase,50HZ or any
|
|
|
Roll Station
|
11 stands
|
|
|
Shaft Diameter
|
42mm
|
|
|
Feeding Thichness
|
0.3-0.8mm
|
|
|
Cutter Standard
|
GCR12
|
|
|
Roller Standard
|
45# Plating Cr
|
|
DETAIL IMAGES
forming roll quality will decide roof sheet shapes, we can according to your local roof shape customized different type rollers
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment.
The hydraulic station is a hydraulic device composed of a hydraulic pump, a driving motor, an oil tank, a directional valve, a
throttle valve, an overflow valve, etc. or a hydraulic device including a control valve. According to the flow direction, pressure and flow required by the drive device, it is suitable for various machinery where the drive device is separated from the hydraulic station.
Equipment List:
|
Item
|
Designations
|
Quantity
|
Unit
|
|
1
|
Decoiler
|
1
|
Set
|
|
2
|
Roll Forming System
|
1
|
Set
|
|
3
|
Cutting System
|
1
|
Set
|
|
4
|
Control System
|
1
|
Set
|
|
5
|
Stacking Rack
|
1
|
Set
|
Packaging & Shipping
1. One container (20ft or 40ft ) for loading one set machine with manual decoiler and receiving rack.
2. The whole wiped Anti Rust Oil, PLC controller covered by foam film.
3. Spare parts and some small parts packed in plastic tooling box.
2. The whole wiped Anti Rust Oil, PLC controller covered by foam film.
3. Spare parts and some small parts packed in plastic tooling box.
