Quick Details
-
Bottle Volume(ml):
-
500 ml
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Fillpack
-
Voltage:
-
380v 3Phase /220v 3Phase 50/60HZ
-
Dimension(L*W*H):
-
2508*1858*1920mm
-
Weight (KG):
-
1000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Output:
-
800 - 1000BPH
-
Bottle volume:
-
0.1L-5L
-
Number of Cavity:
-
1Cavity
-
Product material:
-
PET
-
Connecting pipes:
-
2.0 m3/min 30Kg
-
Mould Chiller:
-
5HP
-
Preform unscramble:
-
2000*950*2480mm
Quick Details
-
Neck Diameter(mm):
-
30 mm
-
Max.Bottle Diameter(mm):
-
52 mm
-
Max.Bottle Height(mm):
-
230 mm
-
Bottle Volume(ml):
-
500 ml
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Fillpack
-
Voltage:
-
380v 3Phase /220v 3Phase 50/60HZ
-
Dimension(L*W*H):
-
2508*1858*1920mm
-
Weight (KG):
-
1000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Output:
-
800 - 1000BPH
-
Bottle volume:
-
0.1L-5L
-
Number of Cavity:
-
1Cavity
-
Product material:
-
PET
-
Connecting pipes:
-
2.0 m3/min 30Kg
-
Mould Chiller:
-
5HP
-
Preform unscramble:
-
2000*950*2480mm

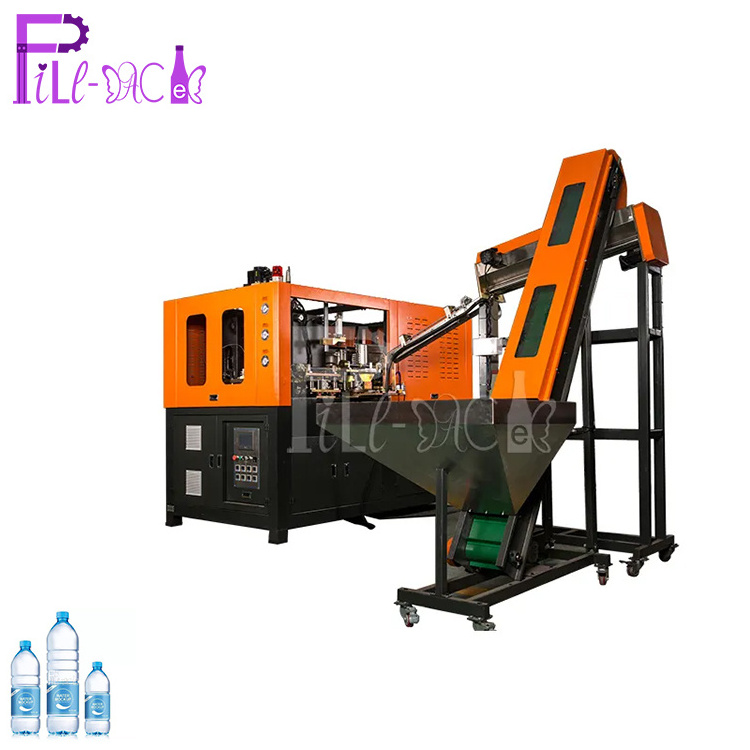

Automatic 1 Cavity PET bottle blowing molding machine
>>>Product Introduction：
FP-5000 type Automatic blow molding machine is suitable for blowing PET bottles of various shapes, volume from 100 ml to 5000 ml, wide application for blowing mineral water bottles, soda bottles, cola bottles.etc.
>>>Product Features：
1.Adopts advanced microcomputer control system, stable performance, the conveyor automatically send embryo;
2, Use infrared heating lamps, penetrating power strong, embryo heated while rotation, orbital revolution, heating uniformity, rapid and reliable;
3, Light tube in heating area, reflector width and height can be adjusted to suit the different structure preform heating, and automatic exhaust temperature device in order to ensure constant temperature of the drying tunnel;
4, Each machine has a safety self-locking device, when a processes have problem, the program will automatically switch to a safe state;
5, All the action drive by the cylinder, do not use pumps, with no pollution, low noise;
6, Gas way design divide action and air blowing into three parts, action to meet the needs of the different pressure of the blowing, action;
7, Cooling system to achieve the desired cooling effect; H- the bottle scrap rate less than 0.2%.
>>>Technical Paramters：
|
Container
|
Theoretical output
|
800-1000PCS/H (5L)
|
|
|
Volume
|
0.1L-5L
|
|
|
Applicable bottle neck
|
15mm-60mm
|
|
|
Applicable bottle body diameter
|
20-200mm
|
|
|
Applicable bottle height
|
50mm-350mm
|
|
Moulding
|
Cavity
|
1Cavity
|
|
|
Mold effective area
|
350*450mm
|
|
|
Clamping force
|
45
|
|
|
Mould opening stroke
|
16
|
|
Machine size and weight
|
Main machine (L×W×H)
|
2508*1858*1920mm
|
|
|
Main machine weight
|
3600Kg
|
|
|
Unscramble(LxWxH)
|
2000*950*2480mm/250kg
|
|
|
Cooling water
|
15L/min
|
|
|
Installed Capacity Power / Actual Usage Power
|
15kw/10kw
|
|
Items
|
Nme of machine
|
Model
|
Size
|
Qty
|
|
1.1
|
HP Air storage Tank
|
0.6 m3/ min 30Kg
|
1200*1200*1650
|
1 set
|
|
1.2
|
HP Air Compressor
|
1.2 m3/ min 30Kg
|
1880×850×1050
|
1set
|
|
1.3
|
HP air filter
|
3.0 m3/min 30Kg
|
750*350*350
|
2sets
|
|
1.4
|
Blow mold
|
5000ml
|
/
|
1set
|
|
1.5
|
HP Air dryer
|
2.0 m3/min 30Kg
|
1100x650x1100
|
1set
|
|
1.6
|
LP Air Compressor
|
2.0 m3/min 10Kg
|
1780*840*1455
|
1set
|
|
1.7
|
LP Air Filters
|
2.0 m3/min 10Kg
|
750*350*350
|
2sets
|
|
1.8
|
Mould Chiller
|
5HP
|
850*560*870
|
1set
|
|
1.9
|
Connecting pipes
|
2.0 m3/min 30Kg
|
/
|
1suit
|
HP Air Compressor → Air Tank → Air Filter → Air Dryer → Air Filter → Chiller → LP Air Compressor → Automatic Bottle Blowing Machine
1. Auxiliary Machine To operate this PET blowing machine, it also need some auxiliary machines. such as air compressor, air filter, air dryer, chiller and so on. we will equip the auxiliary machine according to your need. 2. Bottle Preform If you need, we can also help you find the bottle preform in china. 3. PET Bottle Mold Our PET blowing machine can produce various shape bottles. we can according to your need to design your own bottle and make mold for you. 4. Preform & Cap Molds We also can provide you with preform mold and cap mold according to your demand.
1. the Molder machine is packed by wooden case.
2. The delivery date of Molder machine is within 40 days after payment.
Pure Drinking / Drinkable water RO/ Reverse Osmosis filter equipment / plant / machine / system / line
Water filter
bucket / barrel / gallon bottle water washer filler capper equipment / plant / machine / system / line
Customer's service:
1. FILL-PACK company can provide turn-key project for you, only you have any idea to start beverage factory plant.
2. FILL-PACK company have professional design team, our engineer can draw bottle samples and flow chart ofworkshop for you .
3. FILL-PACK company give you the best quotation for all kinds of beverage production, only you can tell me whichkind of drink you want to product, what is your capacit
y(how many bottles one ho
ur) what is you bottle material, pet or glass,etc
After service:
1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the machine:
a. Machine layout
b. Electricity diagram
c. Machine certificate
d. General manual book/maintenance book
3. After one year guarantee, the seller provides payable spare parts and technician's VISITING maintenance service.
