The product logo, the packaging shape and the logo on the packaging all support one piece customisation.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
QYT
-
Model Number:
-
KT-8900D
-
Dimensions:
-
98(W)*43(H)*126(D)mm
-
Frequency Range:
-
136-174MHz/400-480MHz, 136-147MHz /400-480MHz
-
Function:
-
Car Use Walkie Talkie
-
Warranty:
-
12 Months
-
Weigt:
-
448g
-
Operating Voltage:
-
13.8V DC±15%
-
Squelch Way:
-
CARRIER / CTCSS / DCS / 5Tone / 2Tone / DTMF
-
Channel Spacing::
-
25KHz, 20KHz, 12.5KHz
-
Certificate:
-
CE Approval
-
Battery capacity:
-
External power supply
Quick Details
-
Talk Range:
-
10-30KM
-
Terminal style:
-
Vehicle Mouted
-
Storage Channel:
-
200Channels
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
QYT
-
Model Number:
-
KT-8900D
-
Dimensions:
-
98(W)*43(H)*126(D)mm
-
Frequency Range:
-
136-174MHz/400-480MHz, 136-147MHz /400-480MHz
-
Function:
-
Car Use Walkie Talkie
-
Warranty:
-
12 Months
-
Weigt:
-
448g
-
Operating Voltage:
-
13.8V DC±15%
-
Squelch Way:
-
CARRIER / CTCSS / DCS / 5Tone / 2Tone / DTMF
-
Channel Spacing::
-
25KHz, 20KHz, 12.5KHz
-
Certificate:
-
CE Approval
-
Battery capacity:
-
External power supply

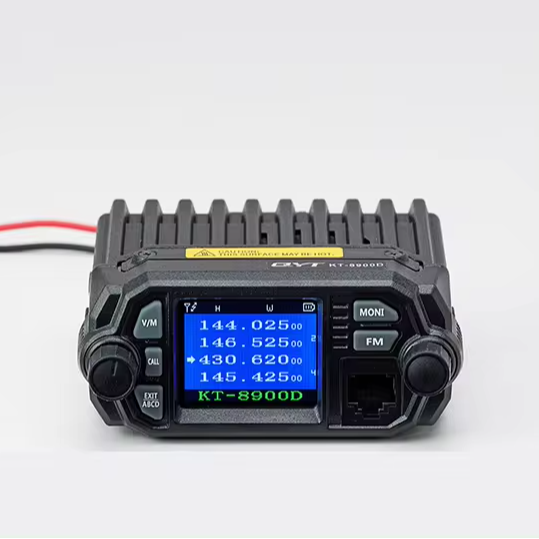

KT-8900D FCC CE mini vhf uhf dual band color screen car vehicle long range ham mobile radio
|
Item number
|
KT-8900D
|
|
||
|
General Specifications
|
|
|
||
|
Frequency Range
|
VHF: 136-174MHz
|
|
||
|
|
UHF: 400-480MHz
|
|
||
|
Channel Capacity
|
200 channels
|
|
||
|
Channel Spacing
|
25KHz, 20KHz, 12.5KHz
|
|
||
|
Channel Step
|
5KHz, 6.25KHz, 10KHz, 12.5KHz, 15KHz, 25KHz
|
|
||
|
Working Voltage
|
13.8V DC ±15%
|
|
||
|
Squelch way
|
CARRIER / CTCSS / DCS / 5Tone / 2Tone / DTMF
|
|
||
|
Frequency Stability
|
±2.5ppm
|
|
||
|
Operating Temperature
|
-20℃~+60℃
|
|
||
|
Dimension(W*H*D)
|
98(W)*35(H)*118(D)mm
|
|
||
|
Weight
|
408g
|
|
||
|
Receiver (ETSI EN 300 086 Standardized.Test)
|
|
|
||
|
|
Wide Band
|
Narrow band
|
||
|
Sensitivity
|
≤0.25μV
|
≤0.35μV
|
||
|
Channel chioce
|
≥70dB
|
≥60dB
|
||
|
Intermodulation
|
≥65dB
|
≥60dB
|
||
|
Spurious Rejection
|
≥70dB
|
≥70dB
|
||
|
Audio response
|
+1~ -3dB(0.3~3KHz)
|
+1~ -3dB(0.3~2.55KHz)
|
||
|
Signal to noise ratio
|
≥45dB
|
≥40dB
|
||
|
Audio distortion
|
≤5%
|
|
||
|
Audio output power
|
≥2W±10%
|
|
||
|
|
|
|
||
|
Transmitter (ETSI EN 300 086 Standardized.Test)
|
|
|
||
|
|
Wide Band
|
Narrow band
|
||
|
Output power
|
25W/20W (VHF / UHF)
|
|
||
|
Modulation Mode
|
16KΦF3E
|
11KΦF3E
|
||
|
Channel Power
|
≥70dB
|
≥60dB
|
||
|
Signal noise ratio
|
≥40dB
|
≥36dB
|
||
|
Parasitic harmonic
|
≥60dB
|
≥60dB
|
||
|
Audio response
|
+1~ -3dB(0.3~3KHz)
|
+1~ -3dB(0.3~2.25KHz)
|
||
|
Audio distortion
|
≤5%
|
|
||
