INTRODUCTION

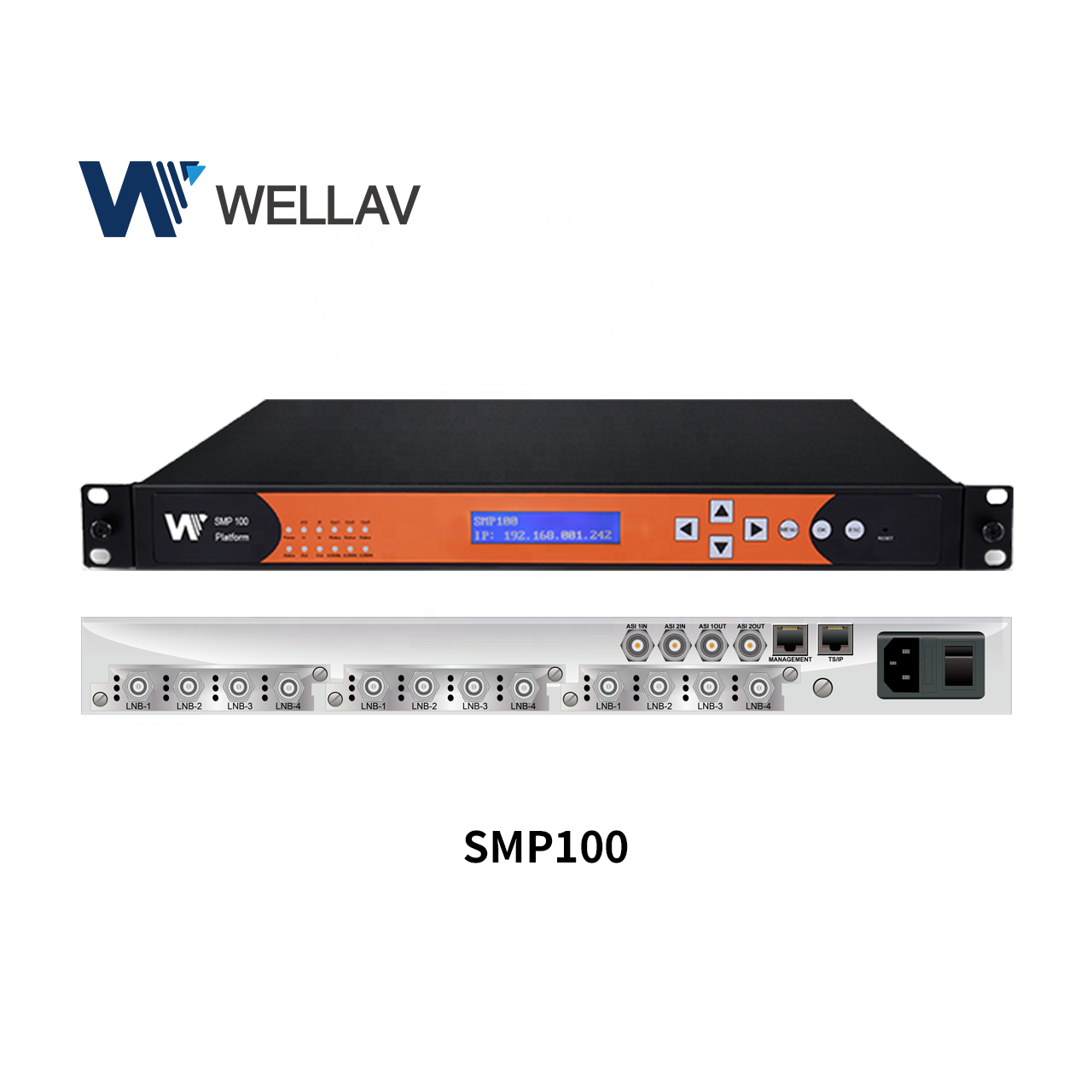

SMP100 is a cost-effective, platform-based and multipurpose video processing equipment targeted for various video deliveryapplication.
Wwith multiplexing/ASIP built in the platform, SMP100 supports 3 functional modules for receiving, de-scrambling, encoding,transcoding, decoding, scrambling, modulation and streaming.
Customers can easily adopt an analog-to-digital video service or turn around your service into lP-based network or leverage its high density to support multi-channel video processing with less investment.
KEY FEATURES
- Compact modular design:1RU with 3 modules (see available modules in ‘ordering information')
- Supports up to 4Gbps video multiplexing and TS stream multiplexing/grooming
- Supports EIT multiplexing (optional) and EPG/Sl insertion (both DVB and ATSC standard)
- Embedded ASI/IP interfaces in the main chassis
- Dual redundancy power supply (optional)
- Easy configuration tools: Web-Ul and SNMP
- Easy upgrade to new technologies with only module replacement
- Low power consumption and high reliability with MTBF (Mean Time Between Failure)≥100,000 hours
APPLICATIONS
SMP100 is typically used for these applications:
Distribution/delivery, digital turn-around, local program insertion, MDU, etc
Encoding/Transcoding
- Up to 12 SD or HD programs of encoding
- Up to 12 SD or 6 HD programs of transcoding.
- Multi-audio MPEG/AAC/AC3 encoding
Receiving/Digital-Turn-Around
- 12 channels or frequencies of DVB-S/S2/C/T/T2,ISDB-T and 8VSB receiving
- Descramble, remultiplex and pass-through to ASI,lP or RF output
Modulation
- Up to 24 channels of OAM modulating
- Up to 12 channels of OFDM/DVB-T modulating. 8 channels of trans-modulation to OAM(fromDVB-S/S2T/T2,ISDB-T or 8VSB)
Stream Processing
- 14 ASl ports of multiplexing
- 14 ports ASl to lP gateway with ASI out
- lnternal multiplexing or pass-through capabilities.
- EIT multiplexing
-
Supports Sl and EPG data insertion
SPECIFICATIONS
Cost-effective Media Platform
| Chassis | |
| Capacity | 4Gbps (approx.1000 programs) |
| Slot Number | 3 slots |
| Interface |
2x ASl Inputs (BNC, Female,750 ports) 2 x ASl outputs (BNC,Female,75Q ports) 1 x GbETS/IP(RJ45) 1 x management (RJ45)
|
| ASI (on-chassis) | |
| Bit-rate per Port | 1 MPTS/SPTS at max. 10OMbps per port |
| IP (on-chassis) | |
| Protocol | TS over UDP/RTP, unicast/multicast |
| MPEG TS | MPTS and SPTS |
| Channel | 64 streams input and 12 streams output |
| Bit-rate per Port | Max.780Mbps (effective 650Mbps) |
| De-jittering | PCR |
| Management | IGMPV1,IGMP V2,IGMP V3 |
| FEC | ProMPEG, input and output |
| Multiplexing | |
| Routing | Any input to any output |
| Table Supported | SI/PSI/PSIP |
| PID Processing | Pass-through, remapping, filtering |
| EIT Processing | Re-multiplexing and pass-through |
| External Data | EPG and Sl insertion |
| Management | |
| Hardware lnterface |
1 x RJ45 (100Mbps) |
| User Interface |
LED indicators LCD screen Front panel control Web Ul SNMP(monitoring only) |
| Physical & Environment | |
| Input Voltage | 90~260 VAC |
| Dual Power Supply | Optiona |
| Power Consumption | Max.60W (fully loaded) |
| Chassis Dimension | 480mm x 44m x 440mm (WxHxD),1RU |
| Operating Temperature | o C~50℃ |
| Storage Temperature | -10℃ ~70℃ |
| Operating Humidity | <95% |
| MTBF | ≥100,000 hours |
ORDERING INFORMATION
| Model | Description |
| SMP100 | Chassis with 3 slots |
| SMP100-02 | 48V DC version |
| SMP100-03 | Dual power supply version |
| SMP100-EIT | ElT multiplexing option |
| Receiver Module | |
| DVBS2 | DVB-S/S2 receiving module (4CH, or 2CH with 16/32APSK), supports multi-stream receiving |
| DVBC | DVB-C receiving module (4CH,Annex AC) |
| DVBC-01 | DVB-C receiving module (4CH, Annex B) |
| DVBT2 | DVB-T2/T receiving module (4CH) |
| 8VSB | 8VSB/ATSC receiving module (4CH) |
| ISDBT | ISDB-T receiving module (4CH) |
| De-/Scrambler Module | |
| CI | Common interface module (2 CAM slots) |
| CI-BISS | Biss descramber, 16 x TS |
| Scrambler+ | DVB scrambler, CAS version (150 programs) |
| Scrambler-75 | DVB scrambler, CAS version (75 programs) |
| Scrambler-BISS | DVB scrambler, supports BISS-1/BISS-E |
| I/O module Module | |
| TSIP | TSIP with SFP (64In 32Out) |
| ASI | ASI module (4 In or Out) |
| IPASI | IP/ASI module, with 2xRJ45+2xASI ports (64In 32Out) |
| TSIP+ | TSIP module (2xSFP+2xRJ45, 256In256Out@SPTS or 128In128Out@MPTS) |
| Modulator Module | |
| QAM | QAM modulator (8CH, Annex A/C) |
| QAM-B | QAM modulator (4CH, Annex B) |
| QAM-B-1CH | QAM modulator (1CH, Annex B) |
| OFDM | OFDM modulator (4CH) |
| 8VSBM-02 | 8VSB modulator (2CH, non-adjacent, based on QAM module hardware) |
| IQAMv2 | Non-adjacent QAM modulator (16xQAM, Annex A/C) |
| IQAMv2-01 | Non-adjacent QAM modulator (8xQAM, Annex A/C) |
| IQAMv2-02 | Non-adjacent QAM modulator (16xQAM, Annex B) |
| IQAMv2-03 | Non-adjacent QAM modulator (12xQAM, Annex B) |
| IQAMv2-04 | Non-adjacent QAM modulator (8xQAM, Annex B) |
| Encoder Module | |
| EN4SDI-2M2A01 | H.264 HD/SD, MPEG-2 SD encoding module (2CH, SDI/CVBS), MPEG1L2 (support), AAC (support), AC3 (support) |
| EN4SC-4M2A01 | 4CH H.264 HD/SD or MPEG-2 SD SDI encoder, MPEG1L2 (support), AAC (support), AC3 (support) |
| EN4SC-2M2A01 | 2CH H.264 HD/SD or MPEG-2 SD SDI encoder, MPEG1L2 (support), AAC (support), AC3 (support) |
| EN4HDMI-4M2A01 | H.264 HD/SD and MPEG-2 SD (4CH) HDMI encoding module, MPEG1L2 (support), AAC (support), AC3 (support) |
| EN4HDMI-2M2A01 | H.264 HD/SD and MPEG-2 SD (2CH) HDMI encoding module, MPEG1L2 (support), AAC (support), AC3 (support) |
| EN2SDI-2Hv300 | H.264/MPEG-2 encoder, 2 SD/HD, SDI/CVBS, teletext encoding, MPEG1L2 (support) |
| EN2SDI-2Hv301 | H.264/MPEG-2 encoder, 2 SD/HD, SDI/CVBS, teletext encoding, MPEG1L2 (support), AAC (support), AC3 (support) |
| ENAUDIO | 4-ch audio encoder module, support RCA, balanced and unbalanced XLR or unbalanced AES/EBU input connector with designated adaptor cable, MPEG1L2 (support) |
| Transcoder Module | |
| TC4-2M2A01 | Transcoder to 2x H.264 SD/HD or MPEG-2 SD, MPEG1L2 (support), AAC (support), AC3 (support) |
| TC4-4M2A01 | Transcoder to 2x H.264 HD or 4x H.264/MPEG-2 SD, MPEG1L2 (support), AAC (support), AC3 (support) |
| Decoder Module | |
| Decoder-AV | Decoding module (2 HD or 4 SD, CVBS), MPEG1L2 (support), AC3 (optional), AAC (optional) |
| Decoder-CCV2 | Decoding module (2CH, SD/HD, SDI/HDMI), with CC (100T chipset), MPEG1L2 (support), AC3 (optional), AAC (optional) |
*All the modules are not listed here due to page limitation, please find us if you can't find or need more details.
