Quick Details
-
Dimension(L*W*H):
-
5900*3600*3800
-
Weight:
-
35000 KG
-
Key Selling Points:
-
simple operation
-
main motor power:
-
220kW~250kW
-
Product name:
-
wood crusher
-
Certification:
-
CE ISO
-
Roll cut diameter:
-
720mm
-
Usage:
-
Wood Chipping
-
Specification:
-
Both mobile and stationary
-
Raw material:
-
Waste boards, shelves, wooden pallets
-
Discharge particle size:
-
960
Quick Details
-
Use:
-
Wood Chipping
-
Place of Origin:
-
Shandong, China, Shandong, China (Mainland)
-
Brand Name:
-
shangda
-
Dimension(L*W*H):
-
5900*3600*3800
-
Weight:
-
35000 KG
-
Key Selling Points:
-
simple operation
-
main motor power:
-
220kW~250kW
-
Product name:
-
wood crusher
-
Certification:
-
CE ISO
-
Roll cut diameter:
-
720mm
-
Usage:
-
Wood Chipping
-
Specification:
-
Both mobile and stationary
-
Raw material:
-
Waste boards, shelves, wooden pallets
-
Discharge particle size:
-
960
Product Description

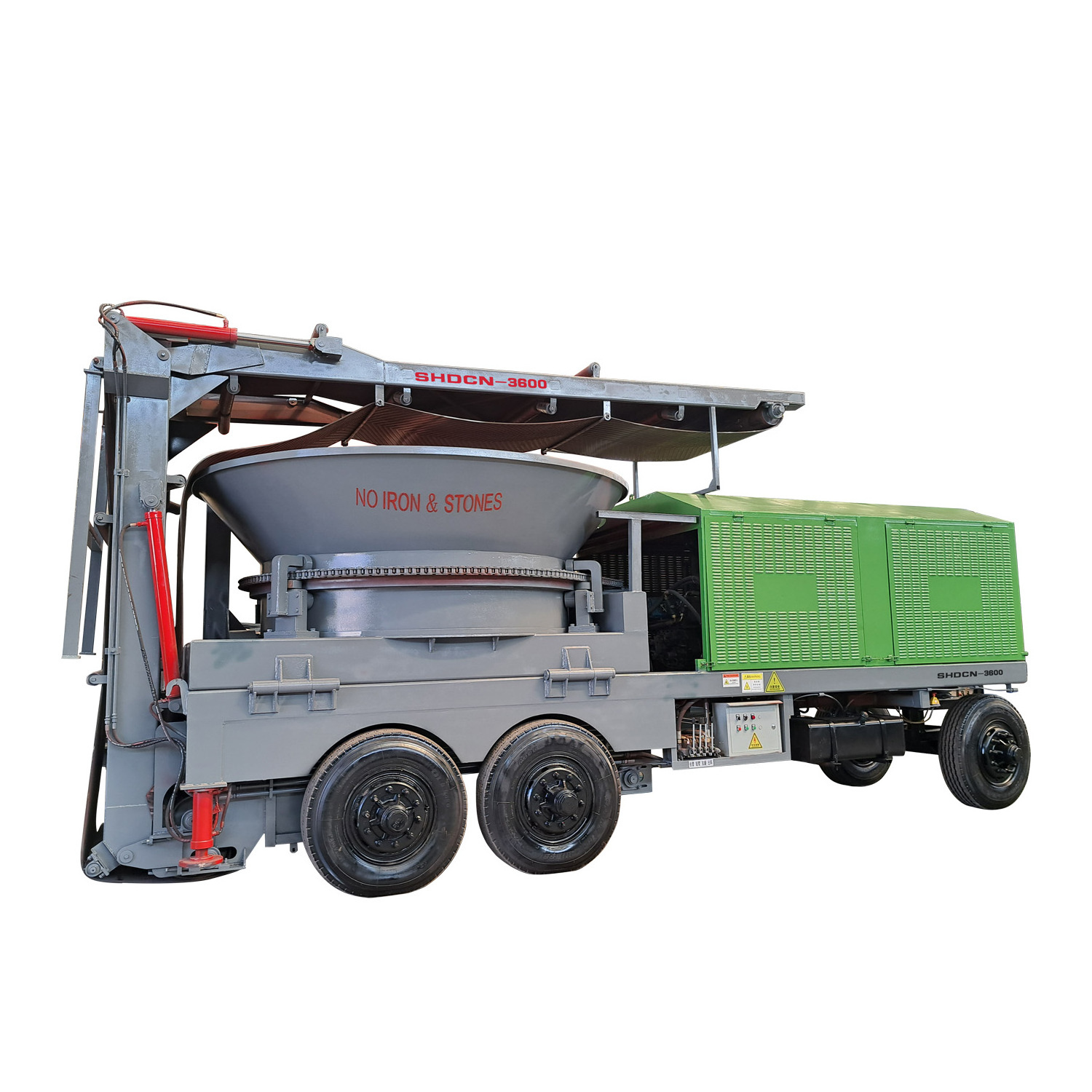

The tree stump crusher is a special equipment for cutting tree stumps. The product is widely used in biomass power plants. This product is welded with high-strength steel plates and is cut by knife rollers. This machine replaces the traditional wood splitter and chipper. The whole stump is cut into qualified biomass raw materials, which saves processes and reduces costs. It is an ideal biomass preparation equipment. It has the characteristics of high output, labor saving, fast feeding and convenient feeding. It solves the trouble that the big tree stump needs to be split with a wood splitter first, and then chipped with a wood chipper. The tree stump crusher is mainly for the utilization of waste wood processing enterprises such as tree roots, tree stump crushing and processing plants, power plants, wood board crushing and processing bases, plywood, building templates, etc. It can process wood boards with a width of 1.2 meters and a thickness of 1-30 cm. The whole machine has integrated linkage control of conveying, feeding, pressing plate and crushing. In addition, various types of wood processing equipment can be customized according to customer requirements.
Raw Material
The disc root crusher is mainly for the crushing of tree roots and stumps. It can process a wide range of raw materials and can process wood, such as various small-diameter wood, slats, slats, round wood cores, building templates, etc., as well as various non-wood materials. Such as various bulk straw scales, cotton firewood, reeds, etc.
The stump crusher has a wide range of applications, mainly used in tree roots, stump crushing and processing plants, biomass power plants, wood-based board factories, paper mills, wood board crushing and crushing processing bases and other industries.
Working principle
When the root crusher is working, the rotor is driven by the motor to rotate, and the feeding hopper is also slowly rotated by the motor. The material is evenly distributed to the rotor, and the high-speed rotating rotor encounters the material through the cutting and tearing of the blade on the rotor to achieve the initial crushing of the material. On the screen in the cavity, the materials that meet the requirements will be discharged through the screen, and those that do not meet the requirements will be crushed twice or even three times in the crushing cavity until they meet the requirements.
