Quick Details
-
Weight:
-
depends
-
Size:
-
customized
-
Power:
-
0
-
Weight (KG):
-
2 kg
-
Product name:
-
oxygen diffuser filter
-
Micron Rate:
-
0.1 to 300 micron
-
Material option (customized):
-
PP,PE, PA, PTFE, Stainless Steel, bronze etc
-
Length:
-
OEM, 5", 10", 20", 30", 40", 50'', 60''
-
Stainless steel Material:
-
304, 316L
-
Interface form:
-
222,226,215, M36, M24, M22, M20 thread interface
-
End:
-
DOE, SOE, insert, screw type
-
Usage:
-
gas, liquid filtration
-
Working pressure:
-
0.1 to 30Mpa
-
Shape:
-
tube, cup, disc, stick, plate, sheet, etc
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Lvyuan / OEM
-
Material:
-
carton
-
Weight:
-
depends
-
Size:
-
customized
-
Power:
-
0
-
Weight (KG):
-
2 kg
-
Product name:
-
oxygen diffuser filter
-
Micron Rate:
-
0.1 to 300 micron
-
Material option (customized):
-
PP,PE, PA, PTFE, Stainless Steel, bronze etc
-
Length:
-
OEM, 5", 10", 20", 30", 40", 50'', 60''
-
Stainless steel Material:
-
304, 316L
-
Interface form:
-
222,226,215, M36, M24, M22, M20 thread interface
-
End:
-
DOE, SOE, insert, screw type
-
Usage:
-
gas, liquid filtration
-
Working pressure:
-
0.1 to 30Mpa
-
Shape:
-
tube, cup, disc, stick, plate, sheet, etc
High Quality Sinter Sintering Porous Plastic PE Powder Air Gas Oxygen Diffuser Filter with good price water cartridge filters
Product Description
High Polymer PE sintered glass filter media element with shape disc disk plate tube various dimension air gas liquid filtering
Lvyuan produces wide ranges of sintered porous plastic filter products, including porous PE, HDPE, PTFE, PVDF, PA, Nylon 6, fiber-glass with shapes of tube, rod, candle, sheet, plate, disc, stick etc. With various filtration rate, shapes and features, sintered porous plastic filter cartridges are widely used in water treatment, chemical engineering, medical treatment, automobile, environmental protection and other industries, such as oil water separator and silencer, drunk driving tester, blind plug for medial treatment, syrup and grease filter device, anti-explosion slices for industrial battery, acid-proof slices for automobile battery, waste water treatment, water purification filter system and more.
Lvyuan sintered porous platics filters can meet requirements of different customers. Custom molded Shapes are available.

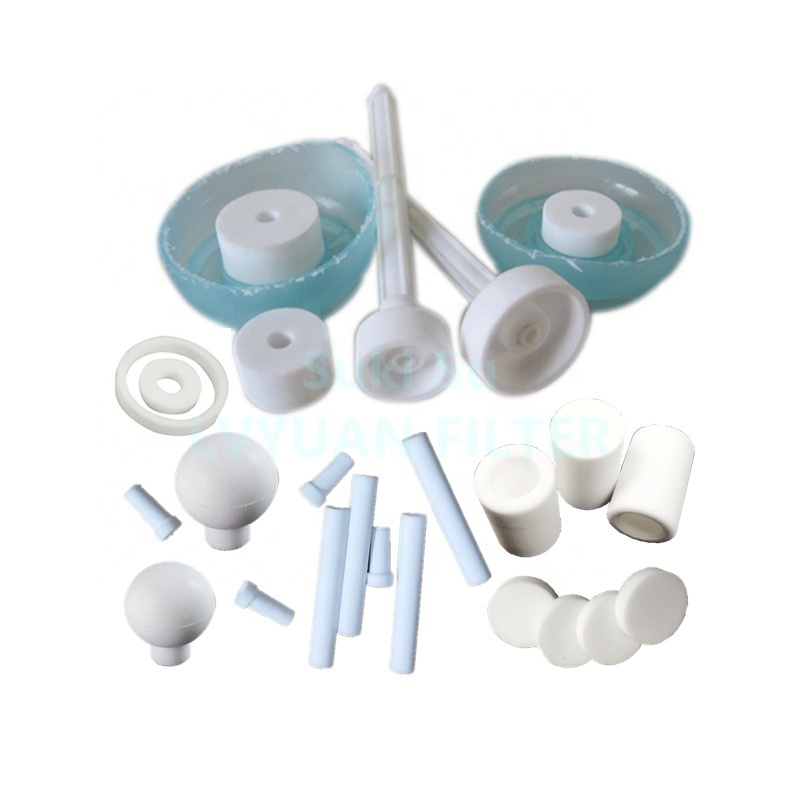

Various Shape Size
Double open end (porous tube or pipe)
Single open end (cup shape)
Porous plate, sheet, disk shapes
Welded with screw cap, M20, M27, M30 etc
Various dimensions and design can be custom-made
Various sizes from mini to jumbo
Product Feature
1. High porosity to ensure a greater flow per unit area;
2. Smooth outer surface, impurities are not easy adhesion, back washing easy and thorough;
3. Anti-fouling ability: the small size of the filter so that impurities can’t be retained in the filter body;
4. Resistance to strong acid, alkali corrosion, resistance to organic solvents;
5. Excellent mechanical properties;
6. No particle release.
7. Wide Product range and wide scope of application
|
Filter Media
|
PE, HDPE, PTFE, PVDF, PA/Nylon etc
|
|
Micron rate
|
0.2um, 0.5um, 1um, 3um, 5um, 10um, 25um, 30um, 50um, 75um, 100um, etc
|
|
Reference dimension
(mm)
|
31x12x1000, 31x20x1000, 38x20x1000, 38x18x1000, 38x20x1200, 38x20x1300, 38x20x150, 38x20x400, 38x20x250, 38x20x200, 38x20x180,
38x20x150, 50x20x1000, 50x31x1000, 50x38x1000, 65x31x1000, 65x38x1000, 64x44x1000, 78x62x750mm, etc. |
|
Connector type
|
DOE, SOE, Flat, insert, thread, 226, 222, 215, M36, M30, M27, M25, M22, M14, M12, or as request.
|
|
Max. operating temperature
|
PE≤82℃; PTFE≥200℃; PA≤120℃
|
Related Products
Application
Medical & Pharmaceutical
1. Impurity removal, decarbonization and fine filtration.
2. Acid Gas Dry deducting
3. Decarbonization Filtration
4. Self sealing filters in suction liner bag
Food & Beverage
1. Remaining yeast and diatomaceous earth filtration
2. Clarification filtration in beverage
3. Water filtration in beverage, brewery
4. Sterile air filtration in beer and brewery
Oil & Gas
1. Organic Solvents recycling filtration
2. Injection water filtration
3. Steam, Compresses air and catalyst filtration
4. Final product end filtration
Chemical
1. Catalyst recovery
2. Medicine intermediate decarbonization and fine filtration
3. H2O2 process filtration
Water Treatment
1. Protection of reverse osmosis in desalting of sea water
2. Sterile Ozone filtration and ozone aeration
3. Protection of ultra filter, RO, EDI systems
Industry
1. Filters in flue gas analysis and CEMS systems
2. Air aeration
3. Muffler and Silencer
4. Compress air filtration
5. CMI Porous Metal Instrument filters
