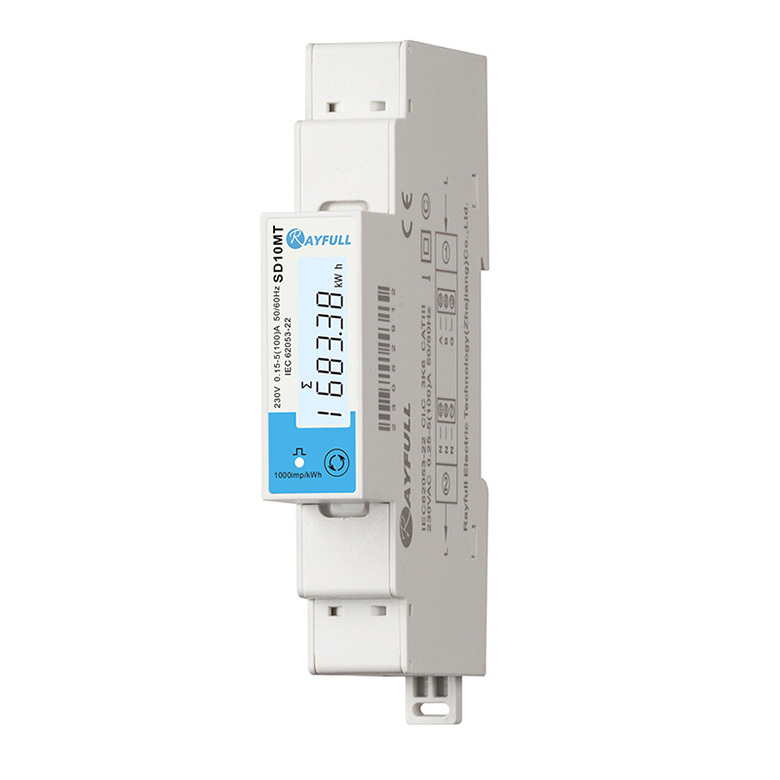

Quick Details
-
Brand Name:
-
Rayfull
-
Model Number:
-
SD10MT
-
Accuracy Class:
-
0.5
-
Operating Temperature:
-
-25℃~55℃
-
Dimensions:
-
100*18*66mm
Quick Details
-
Phase:
-
Single Phase
-
Measuring Energy Range:
-
0-999999kWh
-
Place of Origin:
-
China
-
Brand Name:
-
Rayfull
-
Model Number:
-
SD10MT
-
Accuracy Class:
-
0.5
-
Operating Temperature:
-
-25℃~55℃
-
Dimensions:
-
100*18*66mm
Product Description
*
Max.100A Direct Input
;
*
Measurement:
V,A,W,Var,kWh,kVarh,PF,
Bi-directional Energy and Power Measurement;
*
Communication: RS485 Modbus RTU/ DLT645-2007;
*
Multi-tariffs: 4 tariffs, 8 time segments
*
Networks:1P2W;
*
CE/ROHS Approved
Wiring Diagrams
Electrical Specifications
|
Accuracy
|
Voltage/Current
|
Class 0.5, Refer to IEC 61557-12
|
|
|
Active Power
|
Class 1 / Class 0.5, Refer to IEC 61557-12
|
|
|
Active Energy
|
Class 1 / Class 0.5S, Refer to IEC 62053-21/22, IEC 61557-12
|
|
|
Power Factor
|
Class 1, Refer to IEC 61557-12
|
|
|
Frequency
|
Class 0.2, Refer to IEC 61557-12
|
|
|
RTC
|
0.5s/d
|
|
Voltage Input
|
Rated Voltage
|
230 VAC
|
|
|
Voltage Input
|
176 ~ 276VAC
|
|
|
Frequency
|
45 ~ 65 Hz
|
|
Current Input
|
Current Input
|
0.15 ~ 100 A, Rated 5A
|
|
Power Consumption Class
|
Self-Consumption
|
Voltage Circuit: <2W/10VA;
Current Circuit: <1VA |
|
Interface and Protocol
|
2-Wire RS485; Modbus RTU(Default), DL/T645-2007(Optional)
|
|
Baudrate
|
1200, 2400, 4800, 9600(Default), 19200bps
|
|
Parity
|
None(Default), Even, Odd
|
|
Stop Bit
|
1(Default), 2
|
|
Response Time
|
<100ms
|
Product Size
