Quick Details
-
Place of Origin:
-
shanghai
-
Dimension(Long * Breadth * High):
-
5450*3452*3200mm
-
Machine Weight:
-
17120 kg
-
Bucket capacity:
-
6.5cbm
-
Working mass (kg):
-
17120
-
Engine model:
-
WP9H
-
Rated power/rated speed (kW/rpm):
-
140/1900
-
Overall dimensions:
-
5450*3452*3200mm
-
Track center distance (mm):
-
1880
-
Track shoe width (mm):
-
510(560/610)
-
Grounding length (mm):
-
2635
-
Fuel tank (L):
-
345
-
Working hydraulic oil tank (L):
-
75
Quick Details
-
Engine Brand:
-
chinese brand
-
Power:
-
140 KW
-
Brand Name:
-
chinese brand
-
Place of Origin:
-
shanghai
-
Dimension(Long * Breadth * High):
-
5450*3452*3200mm
-
Machine Weight:
-
17120 kg
-
Bucket capacity:
-
6.5cbm
-
Working mass (kg):
-
17120
-
Engine model:
-
WP9H
-
Rated power/rated speed (kW/rpm):
-
140/1900
-
Overall dimensions:
-
5450*3452*3200mm
-
Track center distance (mm):
-
1880
-
Track shoe width (mm):
-
510(560/610)
-
Grounding length (mm):
-
2635
-
Fuel tank (L):
-
345
-
Working hydraulic oil tank (L):
-
75

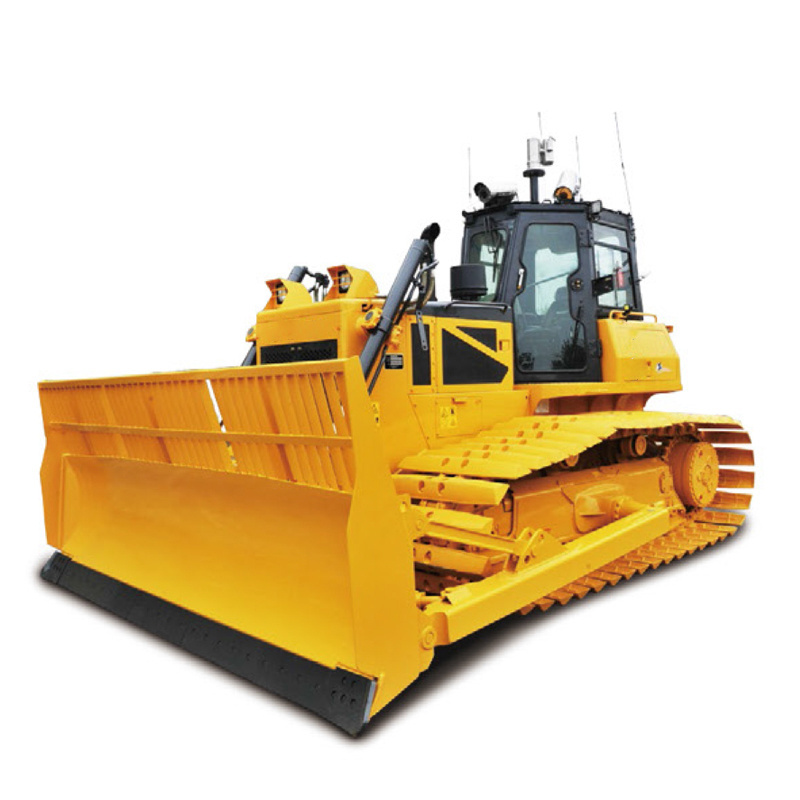

Earthmoving Machinery 17ton Bulldozer SD17-G Hydraulic Drive Bulldozer Mini New Bulldozer
Specification
1. The transmission system is universal to SD22 bulldozers and has been tested in the market for a long time;
2. The hydraulic torque converter is meticulously matched and has the highest efficiency in the industry.
3.Gear presets can be made according to the working conditions, with three modes of F1/R1, F1/R2, and F2/R2 to choose from, making it more efficient and intelligent;
4.The working device adopts pilot control, with precise control, good micro motion, and easy operation;
5. Eightinch LCD display screen with integrated reverse image.
Specification
| Working mass (kg) | 24300 |
| Ground specific pressure (kPa) | 62 |
| Engine model | WP13 |
| Rated power/rated speed (kW/rpm) | 199/1900 |
| Overall dimensions of the machine (mm) | 5920*3723*3460 |
| Forward speed (km/h) | F1:0-3.8,F2:0-6.9,F3:0-11.8 |
| Backward speed (km/h) | R1:0-4.5,R2:0-8.1,R3:0-13.9 |
| Track center distance (mm) | 2000 |
| Track shoe width (mm) | 560(610/660) |
| Grounding length (mm) | 3050 |
| Fuel tank (L) | 480 |
| Working hydraulic oil tank (L) | 110 |
| Blade type | Straight tilt shovel (half U-shaped shovel/U-shaped shovel) |
| Shovel depth (mm) | 540 |
| Type of scarifier | Three teeth/single tooth |
| Soil loosening depth (mm) | 666/695 |
