Quick Details
-
Weight:
-
0.2kg
-
External Size:
-
7.2*7.2*4cm
-
Purpose:
-
brushless generator
-
Alternator input range:
-
15 - 305 V AC RMS (+20%)
-
Power supply:
-
8 to 35 Vdc Continuous
-
Material:
-
Hard rubber base
-
Current:
-
AC
-
Guarantee:
-
365days
-
Package:
-
Carton box
-
Certificate:
-
ISO9001
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LIXiSE
-
Model Number:
-
LC701 AS
-
Weight:
-
0.2kg
-
External Size:
-
7.2*7.2*4cm
-
Purpose:
-
brushless generator
-
Alternator input range:
-
15 - 305 V AC RMS (+20%)
-
Power supply:
-
8 to 35 Vdc Continuous
-
Material:
-
Hard rubber base
-
Current:
-
AC
-
Guarantee:
-
365days
-
Package:
-
Carton box
-
Certificate:
-
ISO9001
-
Certification:
-
CE

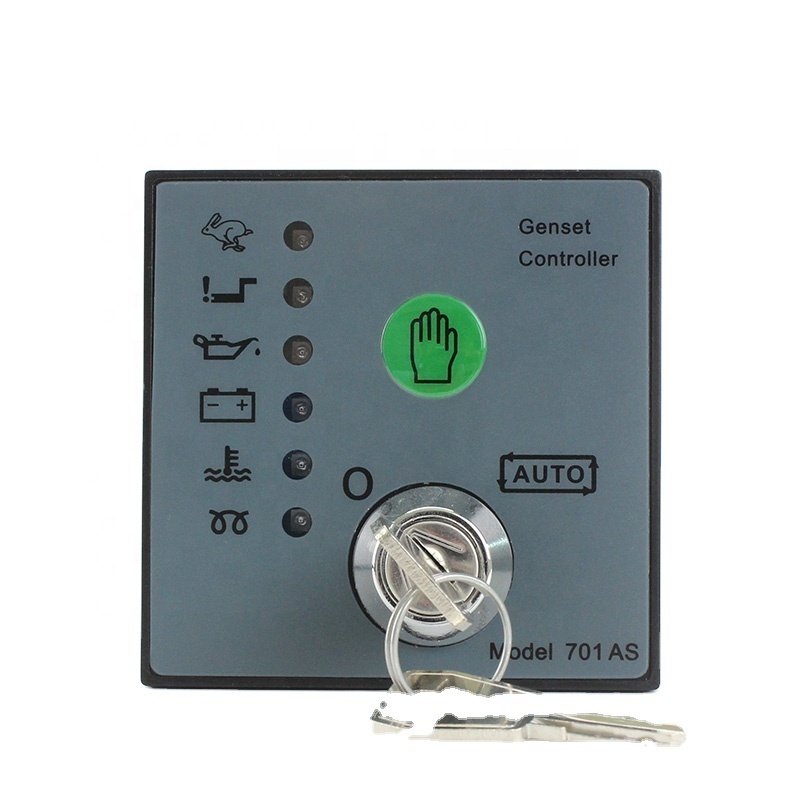

deepsea controller panel DSE701 key switch for generator
* The model 701/702 is an Engine control module designed to control the engine via a key switch and
pushbuttons on the front panel.
* The module is used to start and stop the engine and indicate fault conditions,automatically shutting down the
engine and indicating the cause of failure by LED,giving true,first up fault annunciation.
* Additionally,the Autostart versions of the controller will respond to a remote switched input to begin the start
sequence.
* Model 702 has integral tamperproof LCD hours run counter to indicate total engine run time.
| Power Supply | 8 to 35 Vdc Continuous |
| Cranking Dropouts |
Able to survive voltage dips during cranking. Without
the need for internal batteries. |
| Alternator Input Range | 15 - 305 V AC RMS (+20%) |
| Alternator Input Frequency |
50 - 60 Hz at rated engine speed. (Minimum 75V AC)
Overspeed: nominal frequency +14% (+24% Overshoot) |
| Start Output | Solid State 1.2A negative grounding terminal |
| Run Output | Solid State 1.2A negative grounding terminal |
| Pre-heat Output | Solid State1.2A negative grounding terminal |
| Operating Temperature Range | -30 to +70°C |
| MOVE ADVANTAGE | |||
| sales | 4000pcs/month | the fastest transit time | 2days! |
| inventory situation | a lauge number of stocks | operational advantages | easy for operation |
| production cycle | 1~3days |
