● 8 safety mats can be used in series
● Provide special shape size, don’t need attachment resistor
● Conform to the standard of EN1760-1and ISO13849-1
● Combine with safety relay SR series, EN954-1 control level 3
● Longest response time 25ms
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Sakady
-
Theory:
-
Resistance Sensor
-
Output:
-
4-20mA, 0-10V, 0-5V
-
Description:
-
Melt Pressure Transducer
-
Detecting range:
-
1000*1000mm
-
Certificate:
-
TUV,CCC,CE
-
Connection:
-
Lead / M12 Connector
-
Protection degree:
-
IP 67
-
Power supply:
-
12 ~ 24V DC
-
Color:
-
YELLOW
-
Customer made:
-
OEM
Quick Details
-
Use:
-
Protection safety and emergency stop
-
Model Number:
-
STU-1000*1000-Y
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Sakady
-
Theory:
-
Resistance Sensor
-
Output:
-
4-20mA, 0-10V, 0-5V
-
Description:
-
Melt Pressure Transducer
-
Detecting range:
-
1000*1000mm
-
Certificate:
-
TUV,CCC,CE
-
Connection:
-
Lead / M12 Connector
-
Protection degree:
-
IP 67
-
Power supply:
-
12 ~ 24V DC
-
Color:
-
YELLOW
-
Customer made:
-
OEM
Product Overview
● 8 safety mats can be used in series
● Provide special shape size, don’t need attachment resistor
● Conform to the standard of EN1760-1and ISO13849-1
● Combine with safety relay SR series, EN954-1 control level 3
● Longest response time 25ms
PRODUCT SPECIFICATIONS
|
Items
|
STU-□□□□*□□□□-□-□-□(Note 1)
|
|
Sensing way
|
Pressure sensing type
|
|
Sensing quality
|
30kg or more
|
|
Maximum loading
|
2000N(EN1760-1 standard)
|
|
Mechanical endurance
|
1 million times or more
|
|
Material
|
PVC(Polyvinyl chloride)
|
|
Using environmental temperature
|
-37 ～+66℃(No dew condensation or icing allowed)
|
|
Protection grade
|
IP67
|
|
Quality
|
24.4kg/m²
|
|
Surface material
|
Polyurethane, black
|
|
Suitable height
|
16mm
|
|
Weight
|
17kg/m²
|
|
Cable
|
SMS 4:4x0.34mm²
SMS 5:2pc. 2x0.34 mm² |
|
Cable length
|
2m
|
|
Response time
|
≤25ms
|
|
Allowable load
|
2,000N/Ø80mm
|
|
Invalid edge
|
≤10mm
|
|
Safety mat controller
|
|
|
|
|
|
|||||
|
Appearance
|
Safety output
|
Aux output
|
Rating
|
Terminal
|
Model
|
|||||
|
|
SPST-NO
|
Without
|
240VAC/24VDC
|
Screw terminal
|
SR-E10X
|
|||||
|
|
SPST-NO
|
SPST-NC
|
240VAC/24VDC
|
Screw terminal
|
SR-E16P
|
|||||
|
Shape size
|
|
Black
|
Yellow
|
Red
|
|
|
A(mm)
|
B(mm)
|
Model
|
Model
|
Model
|
|
|
200
|
500
|
STU-200*500-B-□-□
|
STU-200*500-Y-□-□
|
STU-200*500-R-□-□
|
|
|
500
|
500
|
STU-500*500-B-□-□
|
STU-500*500-Y-□-□
|
STU-500*500-R-□-□
|
|
|
500
|
1000
|
STU-500*1000-B-□-□
|
STU-500*1000-Y-□-□
|
STU-500*1000-R-□-□
|
|
|
750
|
1000
|
STU-750*1000-B-□-□
|
STU-750*1000-Y-□-□
|
STU-750*1000-R-□-□
|
|
|
1000
|
1000
|
STU-1000*1000-B-□-□
|
STU-1000*1000-Y-□-□
|
STU-1000*1000-R-□-□
|
|
|
1000
|
1500
|
STU-1000*1500-B-□-□
|
STU-1000*1500-Y-□-□
|
STU-1000*1500-R-□-□
|
|
|
Optional parts
|
|
|
||
|
Length
|
Model
|
Note
|
||
|
2m
|
M8-GM-2C
|
|
||
|
5m
|
M8-GM-5C
|
|
||
|
10m
|
M8-GM-10C
|
|
||
|
2m
|
M8-G-2Y
|
|
||
|
5m
|
M8-G-5Y
|
|
||
|
2m
|
M8-M-2Y
|
|
||
|
5m
|
M8-M-5Y
|
|
||
|
2m
|
M12-M-2Y
|
|
||
|
5m
|
M12-M-5Y
|
|
||

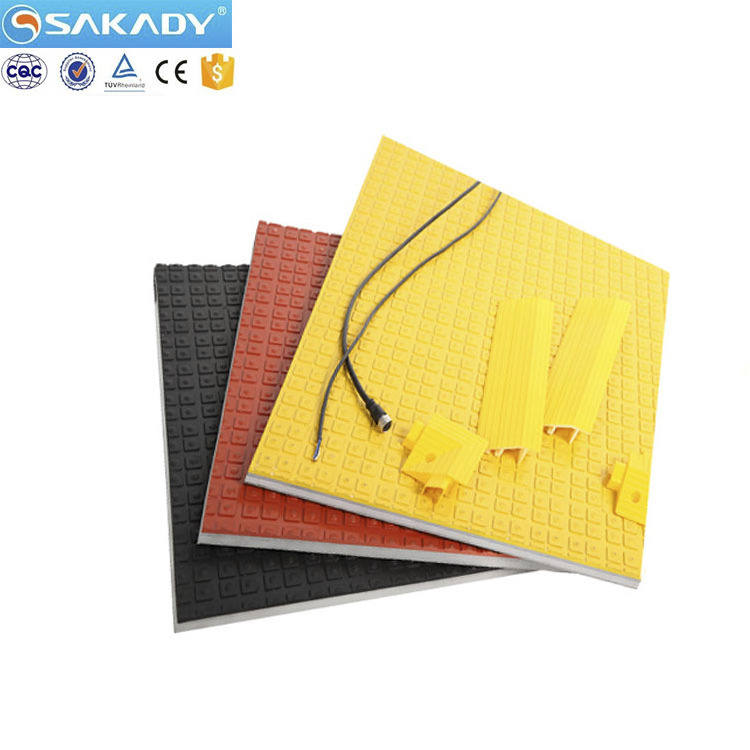

Product Picture
Why Choose Us
Buyer comments
FAQ
|
Q1: What is the MOQ?
|
|
|
|
|
||||
|
A : 1 pcs for our own available designs.
|
|
|
|
|
||||
|
Q2: Can I put my logo on the product?
|
|
|
|
|
||||
|
A : Yes, we can print your logo on the items.
|
|
|
|
|
||||
|
Q3: How about the quality of your products?
|
|
|
|
|
||||
|
A : Our products have passed TUV, CCC and CE certification.
|
|
|
|
|
||||
|
Q4: How long is the delivery time of 1000 products ?
|
|
|
|
|
||||
|
A : 7 days
|
|
|
|
|
||||
|
Q5: Can I get a lower price if I order large quantities?
|
|
|
|
|
||||
|
A : Yes, Cheaper prices with bigger size orders
|
|
|
|
|
||||
|
Q6: Can I get a sample?
|
|
|
|
|
||||
|
A : Of course, but you need to pay the minimum sample fee
|
|
|
|
|
||||
|
Q7: Can I add or delete items from my order if I change mind?
|
|
|
|
|
||||
|
A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.
|
|
|
|
|
||||
|
Q8: How can you guarantee the production quality?
|
|
|
|
|
||||
|
A : The quality of our products has passed TUV, CE, CCC, IS09000 certification. We have 15+ years OEM labeling experience with global top sensor brands.
|
|
|
|
|
||||
