- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Hotel,Villa,Apartment,Office Building,Hospital
-
Design Style:
-
Contemporary,Modern,Minimalist,French
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Simple&Reliable
-
Model Number:
-
PDF01
-
Product Name:
-
PDLC Smart Glass
-
Min Size:
-
100*300 mm
-
Max Size:
-
3000*12500mm
-
Single layer film thickness:
-
0.45mm
-
Power consumption:
-
10 w/square meters
-
Transmittance:
-
80%,88%,92%,94%
-
Light transmission technology:
-
PDLC,SPD
-
Power:
-
AC 48-65V
-
Frequency:
-
50/60Hz
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, NONE, Other
-
Project Solution Capability:
-
graphic design, total solution for projects, Cross Categories Consolidation, Others
-
Application:
-
Hotel,Villa,Apartment,Office Building,Hospital
-
Design Style:
-
Contemporary,Modern,Minimalist,French
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Simple&Reliable
-
Model Number:
-
PDF01
-
Product Name:
-
PDLC Smart Glass
-
Min Size:
-
100*300 mm
-
Max Size:
-
3000*12500mm
-
Single layer film thickness:
-
0.45mm
-
Power consumption:
-
10 w/square meters
-
Transmittance:
-
80%,88%,92%,94%
-
Light transmission technology:
-
PDLC,SPD
-
Power:
-
AC 48-65V
-
Frequency:
-
50/60Hz
Product Description
Self-Adhesive Switchable Smart Film Product Overview
Intelligent Glass Self-Adhesive Switchable Smart Film for retrofit applications on windows and internal glazing
Designed to retrofit to existing transparent surfaces, Self-Adhesive Switchable Smart Film by Intelligent Glass provides a simple and cost effective alternative to other switchable glass film technologies.
It is manufactured with a self-adhesive cling layer on one side (peel and stick) which makes it easy to apply to both new and existing glass (no specialist installation equipment required).

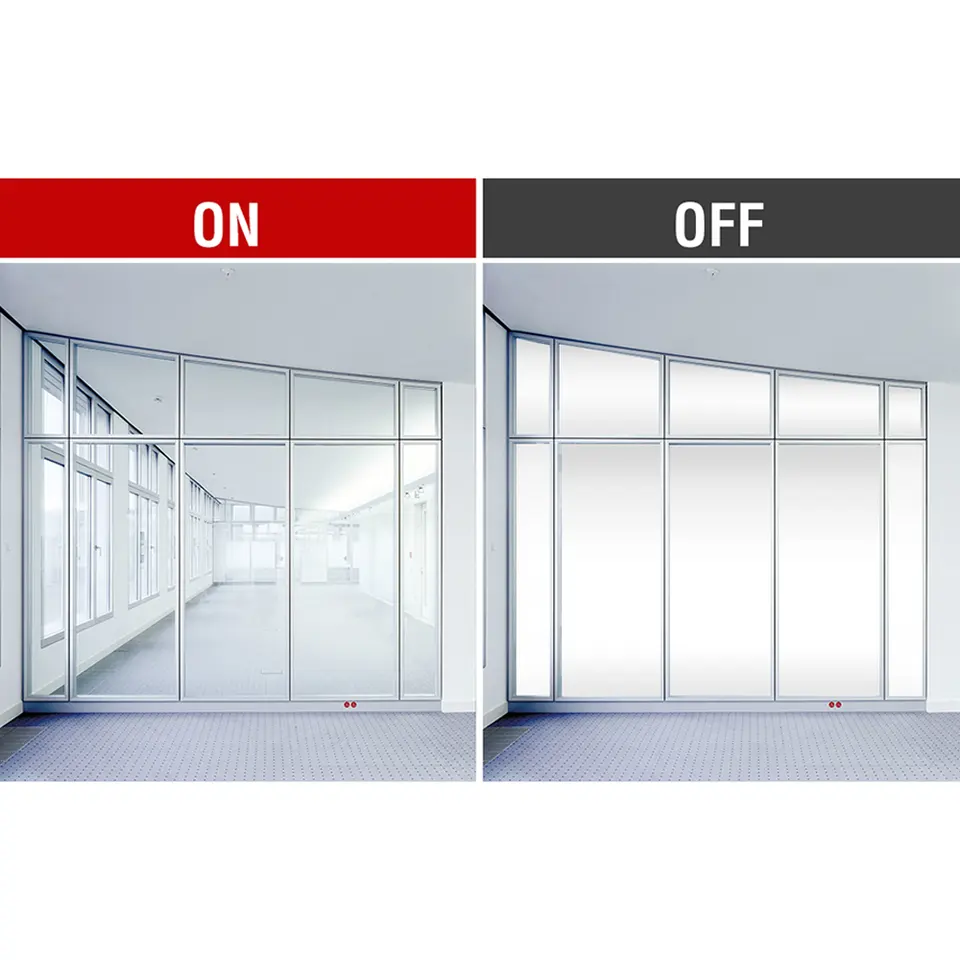

A simple ON - OFF mode switches the film from being clear (transparent) to frosted (opaque). In its frosted state the film acts as an electronic blind providing privacy and security for any glass, window or partition.
Self-Adhesive Switchable Smart Film is available in widths up to 1500mm and can be cut to any size. Custom shapes and sizes are available and multiple pieces can be joined together to create large switchable glazed panels or partitions.
This unique film technology also transforms any glass into a high definition rear projection screen allowing you to display corporate presentations, TV images and videos.
A truly innovative product making switchable glass film technology accessible to everyone while giving your home or business the added WOW factor.
OFFICE
BEDROOM
BATHROOM
HOW SMART FILM & SMART GLASS WORKS?
Smart film and glass work by using a technology called PDLC (Polymer Dispersed Liquid Crystal) or SPD (Suspension Polymerization Display) to control the transmission of light through a glass surface.
PDLC smart film consists of two layers of transparent conductive film, which sandwich a layer of liquid crystals dispersed in a polymer matrix. The liquid crystals are randomly oriented when the film is not powered, causing the film to appear opaque or frosted. When an electrical current is applied, the liquid crystals align and the film becomes clear or transparent, allowing light to pass through.
Both smart film and glass can be controlled with a switch, remote control, or smartphone app, allowing the user to adjust the level of privacy and light transmission as needed. Smart glass and film are becoming increasingly popular in applications such as privacy windows, conference rooms, and automotive windows, as they offer convenience, energy efficiency, and enhanced security.
SMART FILM:
A film that can be applied to existing glass surfaces
Offers a higher level of opacity or privacy
Can be thicker and more densely packed with liquid crystals
More flexible and can be easily removed and replaced
A cost-effective option for retrofitting existing windows
SMART GLASS:
A glass panel that has the smart technology embedded directly into the glass
Has a clearer, more uniform appearance in its transparent state
A more permanent solution and cannot be easily removed or replaced
Ideal for new construction or for applications where a permanent solution is required
Can change its opacity or transparency with the application of an electrical current.
KEY FEATURES OF SMART FILM:
Privacy control: Smart films can provide instant privacy on demand by switching from transparent to opaque, making them ideal for use in conference rooms, medical facilities, residential areas, and other applications where privacy is important.
Light control: Smart films can regulate the amount of light entering a room, reducing glare and heat and improving energy efficiency. They can be used to block out harmful UV rays, protecting furniture and other valuables from sun damage.
Flexible application: Smart films can be applied to any glass surface, making them a cost-effective option for retrofitting existing windows. They can also be customized to fit any size or shape of glass.
Easy control: Smart films can be controlled using a switch, remote control, or smartphone app, allowing for convenient adjustment of privacy and light transmission.
Energy savings: Smart films can reduce the need for air conditioning or heating, improving energy efficiency and reducing utility costs.
Maintenance: Smart films are easy to clean and maintain, and can be easily removed and replaced if needed.
Customization: Smart films can be customized with patterns, colors, and designs to create a unique and personalized look.
Specification
|
item
|
value
|
|
Warranty
|
More than 5 years
|
|
After-sale Service
|
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, Other, NONE
|
|
Project Solution Capability
|
graphic design, total solution for projects, Cross Categories Consolidation, Others
|
|
Application
|
Hotel,Villa,Apartment,Office Building,Hospital,School,Mall,Bathroom
|
|
Design Style
|
Contemporary,Modern,Minimalist,French
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
Simple&Reliable
|
|
Model Number
|
PDF01
|
|
Function
|
Decorative
|
|
Feature
|
Self-Adhesive
|
|
Type
|
Furniture Films
|
|
Surface Treatment
|
Embossed, Frosted / Etched
|
|
Product Name
|
PDLC Smart Glass
|
|
Min Size
|
100*300 mm
|
|
Max Size
|
3000*12500mm
|
|
Single layer film thickness
|
0.45mm
|
|
Power consumption
|
10 w/square meters
|
|
Function
|
Decorative, Heat Insulation, privacy protection
|
|
Transmittance
|
80%,88%,92%,94%
|
|
Light transmission technology
|
PDLC,SPD
|
|
Power
|
AC 48-65V
|
|
Frequency
|
50/60Hz
|
|
Optical Properties
|
Visible Light Transmission
|
ON
|
>83%
|
||
|
|
|
OFF
|
<5%
|
||
|
|
Haze
|
ON
|
<6%
|
||
|
|
|
OFF
|
>90%
|
||
|
|
Parallel Light Transmittance
|
ON
|
>75%
|
||
|
|
|
OFF
|
<2%
|
||
|
|
UV Blocking
|
ON/OFF
|
>99%
|
||
|
|
Infrared Blocking
|
ON/OFF
|
>60%
|
||
|
|
Haze
|
ON
|
5%
|
||
|
Electrical Properties
|
Operating Voltage
|
ON
|
45V/60V
|
||
|
|
Frequencies
|
ON
|
50 to 60 Hz
|
||
|
|
Current
|
2mA/m2
|
2mA/m2
|
||
|
|
Response Time
|
ON-OFF
|
20 ms
|
||
|
|
|
ON-OFF
|
200 ms
|
||
|
|
Power Consumption
|
ON
|
5W/m2/hr
|
||
|
Specification
|
Durable Temperature
|
-20℃ to 60℃
|
|
||
|
|
Life Time
|
>80000 hours
|
|
||
|
|
Visual Angle
|
140°
|
|
||
|
|
Color
|
White,Grey,Yellow,Blue,Red,Green,Black,Dark Grey
|
|
||
|
Size
|
Thickness
|
0.5 mm
|
|
||
|
|
Length and Width
|
Customization to customer Requirments
|
|
||
|
|
Sample size
|
200 mm*300 mm or others
|
|
||
|
Control Mode
|
Manual Switch,Voice control,remote control,remote control can be combined according to customer needs
|
|
|
||
|
|
|
|
|
||
Certifications
Recommend Products
Packing & Delivery
PACKING & DELIVERY
· Front And Bcak，Up And Down Will Not Install Reversely
· Provide Installation Guidance
· Successfully Passed The Verification Of The Inspector
· Rapid Product Positioning
FAQ
♦1.Are you a factory?
We are a factory, we completely can provide you high quality and best price for our clients.
♦2.Will you provide sample?
We can offer samples for free.
♦3. Can you do the production as customized?
Yes, we have a professional technique team, we could produce the glass depends on your requirements.
♦4. What is your minimum order quantity?
Our MOQ is one 20 feet container (25Tons). Products of different sizes and specifications could be mixed in one container.
♦5. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
♦6. What material is the packing ?
Unique designed strong Wooden crate, carton box, plastic film, customized,solving the problems of breakage.
♦7. Payment term?
A: Payment<=1000USD, 100% in advance.
B: Payment>=1000USD, 30% T/T in advance ,balance before shippment.
