Quick Details
-
Fork Length:
-
1000mm
-
Fork Width:
-
160mm
-
Overall Dimensions:
-
Forklift Truck
-
Weight (KG):
-
250 kg
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
France
-
Brand Name:
-
Forklift Truck
-
Fork Length:
-
1000mm
-
Fork Width:
-
160mm
-
Overall Dimensions:
-
Forklift Truck
-
Weight (KG):
-
250 kg

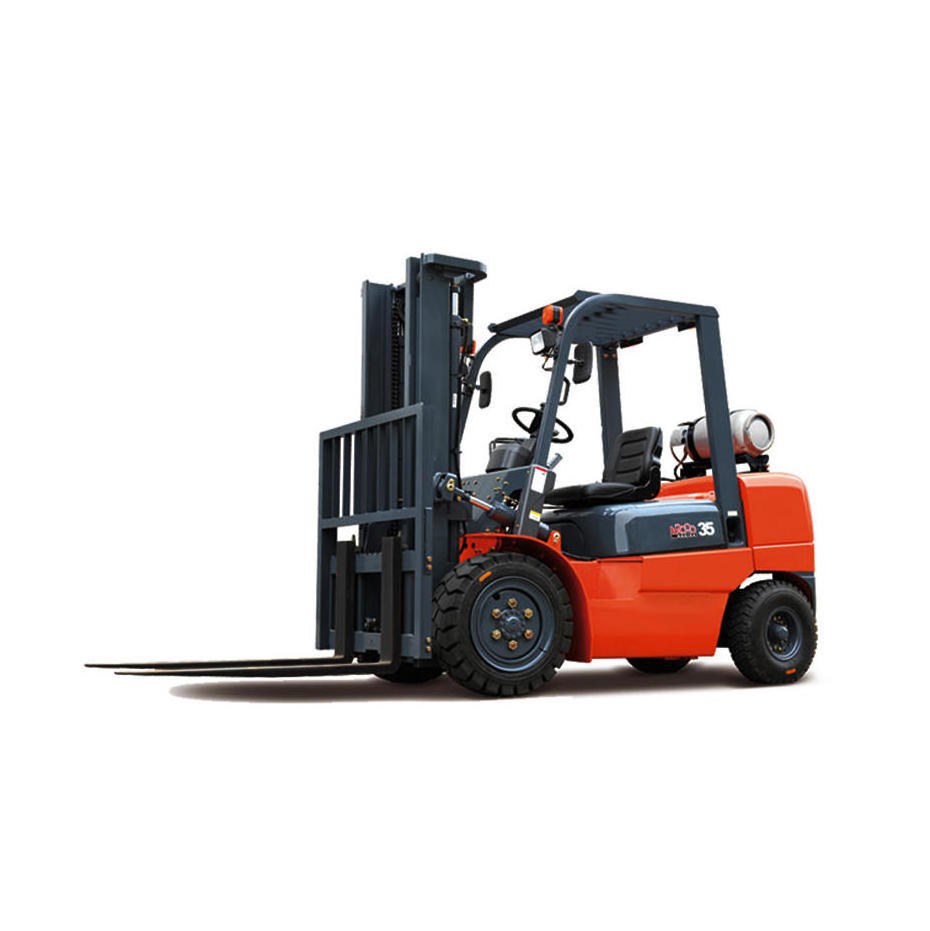

forklift trucks 8fd30 forklift second hand for sale
| Specifications | Unit | FL30 | ||
| Features | Power type | LP/Gasoline | ||
| Rated load | kg | 3000 | ||
| Load center | mm | 500 | ||
| Lifting height | mm | 3000 | ||
| Free lifting height | mm | 145 | ||
| Fork size | L*W*T | mm | 1070*125*45 | |
| Mast tilt angle | Front/Rear | . | 6/12 | |
| Min. turning radius | mm | 2400 | ||
| Min.ground clearance | Mast | mm | 120 | |
| Overhead guard height | mm | 2090 | ||
| Front overhang | mm | 475 | ||
| Performance | Max. travelling speed | loaded | km/h | 20 |
| Max. lifting speed | loaded | mm/s | 470 | |
| Max. traction force | loaded | KN | 18 | |
| Max. climbing ability | % | 20 | ||
| Dimension | Overall length | without fork | mm | 2695 |
| Overall width | mm | 1230 | ||
| Mast lowered height | mm | 2055 | ||
| Mast extended height | mm | 4265 | ||
| Chassis | Tyre | Front | 28*9-15-12PR | |
| Rear | 6.50-10-10PR | |||
| Wheel base | mm | 1700 | ||
| Wheel thread | Front/Rear | mm | 1000/970 | |
| Weight(without load) | kg | 4350 | ||
| Powertrain | Battery | V/AH | 12/90 | |
| Engine | Model | nissan K25 | ||
| Rated power | km/r.p.m | 37.4/2300 | ||
| Rated torque | Nm/r.p.m | 176.5/1600 | ||
| No. cylinder | 4 | |||
| Bore x stroke | mm | 89X100 | ||
| Displacement | L | 2.488 | ||
| Fuel tank capacity | L | 70 | ||
| Transmission/shift | 1/1 automatic transmission | |||
| Operation pressure | Mpa | 17.5 | ||
